Germany IKA Eurostar Stirrer Powerful Control -visc P1 Max. Stirring Capacity 60 liters

The German IKA Eurostar Stirrer is a powerful control type - visc P1 with a Max. stirring Capacity of 60 liters, visc P1 is suitable for high viscosity media, and the Max. Torque at the drill chuck is 10Ncm.
Model：
Contact
Details SPEC

IKA visc P1 StirrerSPEC

IKA visc P1 StirrerDetails

IKA visc P1 StirrerPacking list

SKU
NB005536
visc P1
Stirrer
Germany IKA Eurostar Stirrer Powerful Control -visc P1 Max. Stirring Capacity 60 liters Picture

Introduction

The controlled Eurostar mixer P1 is suitable for highly viscous media.

- Maximum torque of 10Ncm at drill chuck

- Microprocessor is used to ensure constant speed operation

- No need to change gears through gears, infinitely variable speed regulation

- Compact design

- Silent operation

- Safety loops

- Overload protection

- Penetrating impellers

- Smooth start-up for enhanced safety

- Digital display of settings and actual speed

- Torque and viscosity display integrated

- Simulation interface to record speed and torque

- RS232 interface

- It can be connected to a PC to control and record speed, torque, etc. through labworldsoft® software

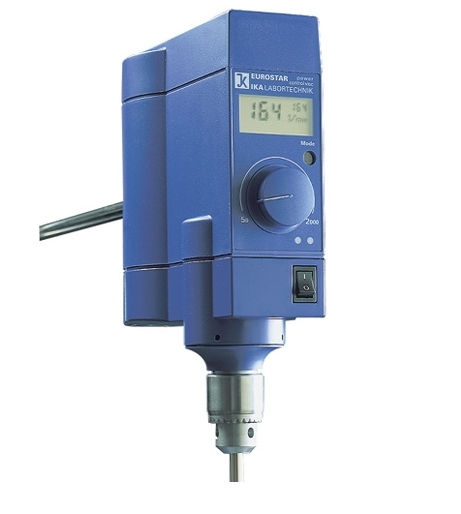

German IKA Eurostar mixer with strong control type - visc P1 display picture

 Parameters

Maximum stirring capacity (H2O)

60 l

Motor input power

153 W

Motor output power

134 W

Rotational speed display

LCD

Speed range

50 - 1200 rpm

Maximum viscosity

70000 mPas

Maximum output power of the stirring shaft

126 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

100 Ncm

Maximum shaft torque (overload) at 60 rpm

100 Ncm

At 100 rpm, the maximum torque of the mixing shaft

100 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

100 Ncm

Rotational speed control

Stepless

The impeller is fixed

Rotary chuck

The minimum diameter of the rotor chuck clamping range

0.5 mm

The rotor head clamps the maximum diameter

10 mm

Hollow shaft, inner diameter

11 mm

Hollow shaft (stop-state can be inserted)

be

Bracket fixation

Bracket?? Extension arm

Extension arm diameter

16 mm

Extend the arm length

200 mm

Torque display

be

Rated torque

1 Nm

Torque measurement

trend

Dimensions

80 x 253 x 190 mm

weight

4 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

be

Analog output

be

Voltage

230 V

frequency

50/60 Hz

Instrument input power

153 W
