Germany IKA Eurostar Stirrer Powerful Control Type-visc P4 Max. Stirring Capacity 40L

The German IKA Stirrer Eurostar-visc P4 uses a 4-level conductive layer to treat high-viscosity media, with a Max. stirring Capacity of 40L.
Model：
Contact
Details SPEC

IKA visc P4 StirrerSPEC

IKA visc P4 StirrerDetails

IKA visc P4 StirrerPacking list

SKU
NB005537
visc P4
Stirrer
Germany IKA Eurostar Stirrer Powerful Control Type-visc P4 Max. Stirring Capacity 40L Picture

Introduction

The controlled Eurostar mixer P4 is suitable for highly viscous media. 4-stage conduction gradient for high-viscosity media.

- Microprocessor is used to ensure constant speed operation

- No need to change gears through gears, infinitely variable speed regulation

- Compact design

- Silent operation

- Safety loops

- Overload protection

- Non-penetrating impellers

- Smooth start-up for enhanced safety

- Digital display of settings and actual speed

- Torque and viscosity display integrated

- Simulation interface to record speed and torque

- RS232 interface

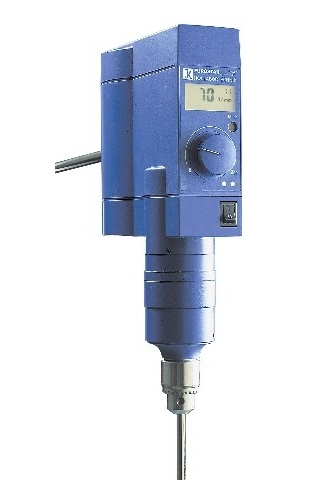

German IKA mixer Eurostar powerful control type - visc P4 display picture

 Parameters

Maximum stirring capacity (H2O)

40 l

Motor input power

130 W

Motor output power

110 W

Rotational speed display

LCD

Speed range

14 - 530 rpm

Maximum viscosity

100000 mPas

Maximum output power of the stirring shaft

95 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

200 Ncm

Maximum shaft torque (overload) at 60 rpm

200 Ncm

At 100 rpm, the maximum torque of the mixing shaft

200 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

200 Ncm

Rotational speed control

Stepless

The impeller is fixed

Rotary chuck

The minimum diameter of the rotor chuck clamping range

0.5 mm

The rotor head clamps the maximum diameter

10 mm

Hollow shaft (stop-state can be inserted)

not

Bracket fixation

Bracket?? Extension arm

Extension arm diameter

16 mm

Extend the arm length

200 mm

Torque display

be

Rated torque

2 Nm

Torque measurement

trend

Dimensions

80 x 330 x 190 mm

weight

4.9 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

be

Analog output

be

Voltage

230 / 115 / 100 V

frequency

50/60 Hz

Instrument input power

130 W
