Germany IKA Eurostar Stirrer Powerful Control -visc P7 Max. Capacity of stirring 40 liters

Germany IKA Eurostar Stirrer, powerful control type -visc P7, using a 7-stage conductive layer to deal with high viscosity media, without gear shifting, to achieve stepless speed regulation, Max. stirring Capacity of 40 liters.
Model：
Contact
Details SPEC

IKA visc P7 StirrerSPEC

IKA visc P7 StirrerDetails

IKA visc P7 StirrerPacking list

SKU
NB005539
visc P7
Stirrer
Germany IKA Eurostar Stirrer Powerful Control -visc P7 Max. Capacity of stirring 40 liters Picture

Introduction

The controlled Eurostar mixer P7 is suitable for highly viscous media. 7-stage conduction gradient for high-viscosity media

- Microprocessor is used to ensure constant speed operation

- No need to change gears through gears, infinitely variable speed regulation

- Compact design

- Silent operation

- Safety loops

- Overload protection

- Non-penetrating impellers

- Smooth start-up for enhanced safety

- Digital display of settings and actual speed

- Torque and viscosity display integrated

- Simulation interface to record speed and torque

- RS232 interface

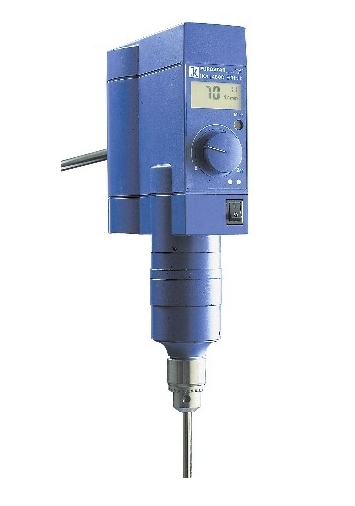

Illustration of the IKA Eurostar Mixer Powerful Control Type - visc P7

 Parameters

Maximum stirring capacity (H2O)

40 l

Motor input power

130 W

Motor output power

110 W

Rotational speed display

LCD

Speed range

8 - 290 rpm

Maximum viscosity

150000 mPas

Maximum output power of the stirring shaft

95 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

380 Ncm

Maximum shaft torque (overload) at 60 rpm

380 Ncm

At 100 rpm, the maximum torque of the mixing shaft

380 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

380 Ncm

Rotational speed control

Stepless

The impeller is fixed

Rotary chuck

The minimum diameter of the rotor chuck clamping range

0.5 mm

The rotor head clamps the maximum diameter

10 mm

Hollow shaft (stop-state can be inserted)

not

Bracket fixation

Bracket?? Extension arm

Extension arm diameter

16 mm

Extend the arm length

200 mm

Torque display

be

Rated torque

3.8 Nm

Torque measurement

trend

Dimensions

80 x 330 x 190 mm

weight

4.9 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

be

Analog output

be

Voltage

230 / 115 / 100 V

frequency

50/60 Hz

Instrument input power

130 W
