Germany IKA RW 11 Top-mounted Electronic Stirrer Basic Glass Case

The German IKA RW 11 overhead electronic Stirrer is a basic electronic Stirrer with a Max. stirring Capacity of 2 liters, using a fan Impeller and a helical Impeller.
Model：
Contact
Details SPEC

IKA RW 11 Electronic StirrerSPEC

IKA RW 11 Electronic StirrerDetails

IKA RW 11 Electronic StirrerPacking list

SKU
NB005543
RW 11
Electronic Stirrer
Germany IKA RW 11 Top-mounted Electronic Stirrer Basic Glass Case Picture

Introduction

Coloured ball blender. Small lab blender with 4 colors.

- Glass case, chemically resistant

- The maximum stirring volume is 2 L H2O

- Sector impeller R1001 and spiral impeller R1002 are available

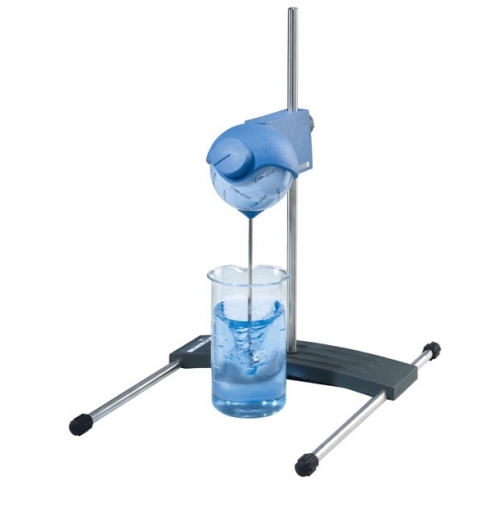

German IKA RW 11 overhead electronic stirrer showcase

 Parameters

Maximum stirring capacity (H2O)

2 l

Motor input power

8 W

Motor output power

1 W

Speed range

0 -2000 rpm

Maximum viscosity

100 mPas

Maximum output power of the stirring shaft

1 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

0.8 Ncm

Maximum shaft torque (overload) at 60 rpm

0.8 Ncm

At 100 rpm, the maximum torque of the mixing shaft

0.8 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

0.8 Ncm

Rotational speed control

Stepless

The impeller is fixed

Plug connection

Plug connection (Ø)

4 mm

Hollow shaft (stop-state can be inserted)

not

Bracket fixation

integration

Strut diameter (with integrated fixing bracket)

10 mm

Torque display

No

Rated torque

0.008 Nm

Dimensions

86 x 89 x 175 mm

weight

0.39 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

No

Analog output

No

Voltage

100 - 240 V

frequency

50/60 Hz

Instrument input power

8 W
