German IKA T18 high speed dissolver basic type, the dispersion amount is 1-1500ml

Germany IKA T18 high speed dissolver is a basic high speed dissolver with a dispersion of 1-1500ml. The motor input Power of the T18 high speed dissolver is 500W, and it is equipped with a Rotation speed meter connection port.

Model：

IKA

Contact

Details SPEC

IKA T18 high speed dissolverSPEC

IKA T18 high speed dissolverDetails

IKA T18 high speed dissolverPacking list

SKU: NB005550

Motor Power: Input 500w; output 300w

Speed regulation range: 3500~24000rpm

Processing Capacity: 0.001~1.5L

Power supply Voltage: 220~240/100~120 V

Dimension: 65*240*80mm

Host Weight: 1.6kg

Max. Processing Viscosity: 5000mPa.s

Rotation speed deviation: 1%

Speed regulation mode: stepless speed regulation

Display mode: scale

Noise level: 73dB (A) (without dispersion head)

Extension arm diameter: 13mm

Extend arm length: 175mm

Process type: batch processing

Operating temperature: 5~40℃

Relative Humidity: 80%

Protection level: IP 20

Interface: none

analog output: No.

Frequency: 50/60 Hz

T18

high speed dissolver

Introduction

The new T18 high-speed disperser ULTRA-TURRAX®

- Dispersions from 1 to 1500 ml (H2O)

- High linear speed for a wide range of applications

- Electronic speed control

- Electronic overload protection

- Quick fixation of the dispersion bits

- Equipped with a tachometer connection

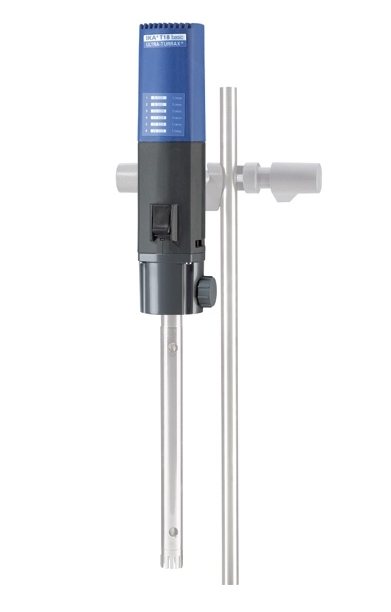

German IKA T18 high-speed disperser display diagram

Technical parameters

Motor input power	500 W
Motor output power	300 W
Minimum Capacity (H2O)	0.001 l
Maximum Capacity (H2O)	1.5 l
Maximum viscosity	5000 mPas
Speed range	3500 - 24000 rpm
Rotational speed deviation	1 %
Rotational speed control	Stepless
Rotational speed display	scale
Noise (no dispersion head)	73 dB(A)
Extension arm diameter	13 mm
Extend the arm length	175 mm
The type of operation	Batching
Dimensions	65 x 240 x 80 mm
weight	1.6 kg
Allowable ambient temperature	5 - 40 °C
Relative Humidity is allowed	80 %
DIN EN 60529 protection method	IP 20
RS 232 interface	No
Analog output	No
Voltage	220 - 240 / 100 - 120 V
frequency	50/60 Hz
Instrument input power	500 W

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
