Germany IKA T25 digital display high speed dissolver Maximum capacity 2 liters

The German IKA T25 high speed dissolver is a new type of digital high speed dissolver with a Maximum capacity of 2 liters. The T25 Disperser is used for wastewater sample treatment, laboratory reactors, Sample Handling under vacuum or pressure, and diagnostic sample prepative.
Model：
Contact
Details SPEC

IKA T25 high speed dissolverSPEC

IKA T25 high speed dissolverDetails

IKA T25 high speed dissolverPacking list

SKU
NB005551
Motor Power
Input 500w; output 300w
Speed regulation range
3400~24000rpm
Processing Capacity
0.001~2L
Power supply Voltage
220~240/100~120 V
Dimension
65*240*80mm
Host Weight
1.6kg
Max. Processing Viscosity
5000mPa.s
Rotation speed deviation
1%
Display mode
LED
Speed regulation mode
stepless speed regulation
Noise level
73dB (A) (without dispersion head)
Extension arm diameter
13mm
Extend arm length
175mm
Process type
batch processing
Operating temperature
5~40℃
Relative Humidity
80%
Protection level
IP 20
Interface
none
analog output
No.
Frequency
50/60 Hz
T25
high speed dissolver
Germany IKA T25 digital display high speed dissolver Maximum capacity 2 liters Picture

Introduction

The new T25 digital high-speed disperser ULTRA-TURRAX®

- Dispersion from 1 to 2500 ml (H2O)

- The instrument is used for sewage sample treatment, laboratory reactors, sample processing under vacuum or pressure, and diagnostic sample preparation.

- 3 types of drive bearings

- Standard digital display

- Stator and rotor configuration, 30-year quality guarantee to ensure reproducibility of experimental results.

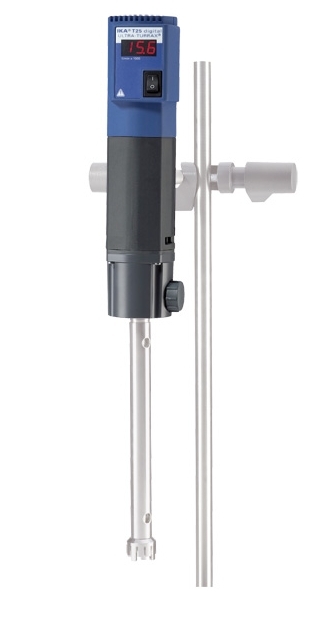

German IKA T25 high-speed disperser display map

 Technical parameters

Motor input power

500 W

Motor output power

300 W

Minimum Capacity (H2O)

0.001 l

Maximum Capacity (H2O)

2 l

Maximum viscosity

5000 mPas

Speed range

3400 - 24000 rpm

Rotational speed deviation

1 %

Rotational speed display

LED

Rotational speed control

Stepless

Noise (no dispersion head)

73 dB(A)

Extension arm diameter

13 mm

Extend the arm length

175 mm

The type of operation

Batching

Dimensions

65 x 240 x 80 mm

weight

1.6 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 20

RS 232 interface

No

Analog output

No

Voltage

220 - 240 / 100 - 120 V

frequency

50/60 Hz

Instrument input power

500 W




FAQ
QWhat is the cutting line speed of the t25 product??
