JINGKELIAN QXP 0-25 single-channe Fineness of Ground Gauge Fineness gauge 0-25μm/2.5μm

SE
Single-Channe QXP Fineness gauge, stainless steel, range 0~25μm, scale unit μm, accuracy +/- 2µm, scraper size 170 * 65 * 13mm, Graduation 2.5μm.
$158.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

JingKeLian QXP 0-25 ISO single-channe Fineness of Ground GaugeSPEC

JingKeLian QXP 0-25 ISO single-channe Fineness of Ground GaugeDetails

JingKeLian QXP 0-25 ISO single-channe Fineness of Ground GaugePacking list

SKU
NB000556
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 25µm
Scale unit
mm
precision
±2µm
Scraper material
stainless steel
Scraper size
170*65*13mm
Groove size
140*13mm
Scraper size
90*40*6mm
Graduation
2.5µm
QXP 0-25
ISO single-channe Fineness of Ground Gauge
Single-Channe QXP Fineness gauge, stainless steel, range 0~25μm, scale unit μm, accuracy +/- 2µm, scraper size 170 * 65 * 13mm, Graduation 2.5μm.
JINGKELIAN QXP 0-25 single-channe Fineness of Ground Gauge Fineness gauge 0-25μm/2.5μm Picture

JinKeLian QXP0-25 single-slot Fineness of Grind Gauge is a Fineness of Grind Gauge with a measuring range of 0~25 microns and a measuring range of 2.5 microns. This QXP0-25 single-slot Fineness of Grind Gauge has only one groove Number, the groove width is 13mm, it is designed according to the requirements of ISO1524 standard . QXP0-25 single-slot Fineness of Grind Gauge is equipped with 2 stainless steel scrapers, which are used as measuring instruments in the paint industry and are easy to operate.

Packing Specifications

Each set of QXP0-25 single-slot Fineness of Grind Gauge includes one scraper and two scrapers.

Single groove Grindometer meets the standard

QXP0-25 single-slot Fineness of Grind Gauge is manufactured in accordance with the relevant provisions of the international standard ISO1524-1983 (E), and is used for the determination of particle fineness of paint and related products.


Score standard errorGroove Ratio ErrorShape accuracySurface roughnessRemark
Range (um)Error (um)ratioError (um)
single slot100<2.51 : 1400<2.5frontfrontThe relative error of the scale value at any point on the second groove of the double-groove scraper is not greater than 1.2mm
50<2.51 : 2800<2.5flatness tolerance0.1
25<21 : 5600<20.012groove
double slot100<2.51 : 1400<2.5Lateral Straightness Tolerance0.2Ra=1.6
50<2.51 : 2800<2.50.001
25<21 : 5600<20.012groove

Specifications of single groove Fineness of Grind Gauge

Scraper Dimensions: Length 175mm*Width 65mm*Thickness 13mm

Effective size of scraper groove: length 140mm*width 13mm

Scraper Dimensions: Length 90mm*Width 40mm*Thickness 6mm

Recommended fineness test range of ISO single groove Fineness of Grind Gauge


Maximum range (um)Minimum scale value (um)Recommended range (um)
single slot1001040~~90
50515~~40
252.55~~15

Precautions

1. The front of the scraper can be used as a daily inspection of the straightness of the scraper;

2. Clean the scraper after use, apply anti-rust oil and put it in the box for storage;

3. The front of the scraper and the edge of the scraper must not be bumped;

4. The Grindometer should be calibrated in our factory after one year of use.

Pictures

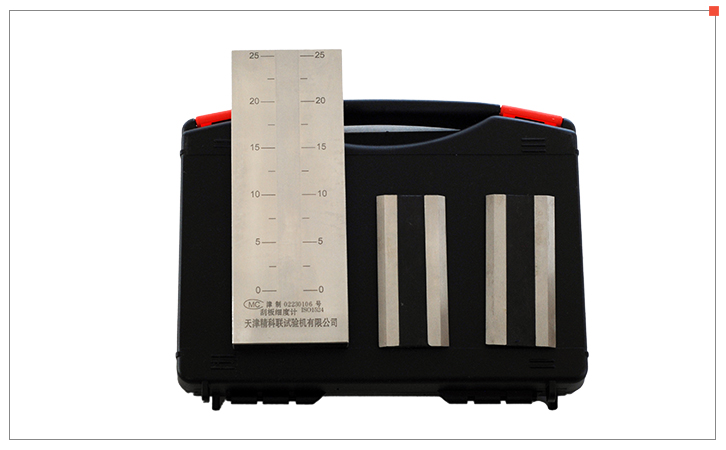

JinKeLian QXP0-25 Fineness of Grind Gauge (single groove) real shot

FAQ
QCan the JINGKELIAN QXP25 Fineness gauge be used to scrape 15μm pigments?
A Yes, the ISO scraper fineness Measurement can scrape 0~ 25μm or less material fineness.
QDo you have the ISO Fineness gauge in JT/T 821.1?
A The QXP 0-25umISO Fineness gauge will do
QWhat instrument is used for the measurement of the size of solid aggregates in the slurry?
A This type of scraper Fineness meter can determine the Fineness in the slurry. The scraper Fineness meter method is an accurate, fast and easy-to-operate method. The specific model selection can be based on your estimated slurry Fineness. For details, please consult the technical engineer of NBchao. Com Mall.
QFineness Measurement of Thermosetting Printing ink Slurry, What Specifications of Scraper Should Be Used?
A Printing ink needs to have a small Fineness, and you need to use the Grinder to grind the coarse material to a reasonable level. If it is to measure the Fineness at this time, it is recommended to buy a 0-25μm or even a smaller Fineness gauge.
QIs the measurement Fineness unit of this scraper Fineness meter only microns?
A Hello, yes, the scale unit of this Jingke Fineness gauge is μm.
