IKA M 20 Grinder is suitable for drying ground of hard and brittle materials

Germany IKA M 20 Grinder is a universal Grinder, suitable for hard, brittle material drying ground, motor input Power 620 W, the maximum volume of 250 ml.
Model：
Contact
Details SPEC

IKA M 20 GrinderSPEC

IKA M 20 GrinderDetails

IKA M 20 GrinderPacking list

SKU
NB005561
M 20
Grinder
IKA M 20 Grinder is suitable for drying ground of hard and brittle materials Picture

Introduction

Universal grinding machine, suitable for dry grinding of hard, brittle substances.

- The grinding chamber is jacketed and the cooling water can be connected via a pipe fitting

- The grinding chamber is detachable, easy to clean, and grinding is more convenient

- Two grinding chambers can be used, alternating with one motor

- The grinding head M 21 is installed in the grinding machine

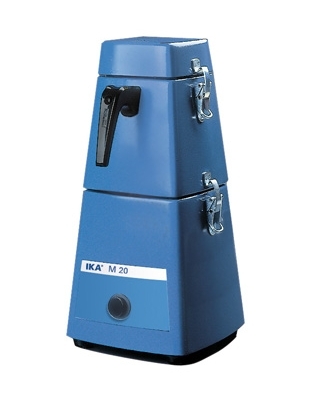

Illustration of the IKA M 20 Grinder in Germany

 Technical parameters

The type of operation

Batching

Operating Principle

Shear/impact

Motor input power

620 W

Motor output power

260 W

Maximum rotational speed

20000 rpm

Maximum circumferential speed

72 m/s

Maximum usable volume

250 ml

Maximum feed hardness

5 Mohs

Maximum feed particles

7 mm

Impact/shear bit material

Stainless steel 1.4034

grinding chamber material

Stainless steel 1.4301

Operating Time are on

7 min

Operating Time off

10 min

Grinding chamber, which can be cooled with water

be

The abrasive material can be cooled with dry ice in the grinding chamber

be

The abrasive material can be cooled with liquid nitrogen in the grinding chamber

No

Dimensions

170 x 350 x 170 mm

weight

6.6 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 21

RS 232 interface

No

Analog output

No

Voltage

230 / 115 V

frequency

50/60 Hz

Instrument input power

620 W
