JINGKELIAN QXP 0-50 single-channe Fineness of Ground Gauge Fineness gauge 0~50μm/5μm

QXP 0-50

ISO single-channe Fineness of Ground Gauge

Single-channe, range 0~50μm, scale unit μm, accuracy +/- 5μm, scraper material stainless steel, Applicable standard ISO1524-1983, recommended range 15-40μm.

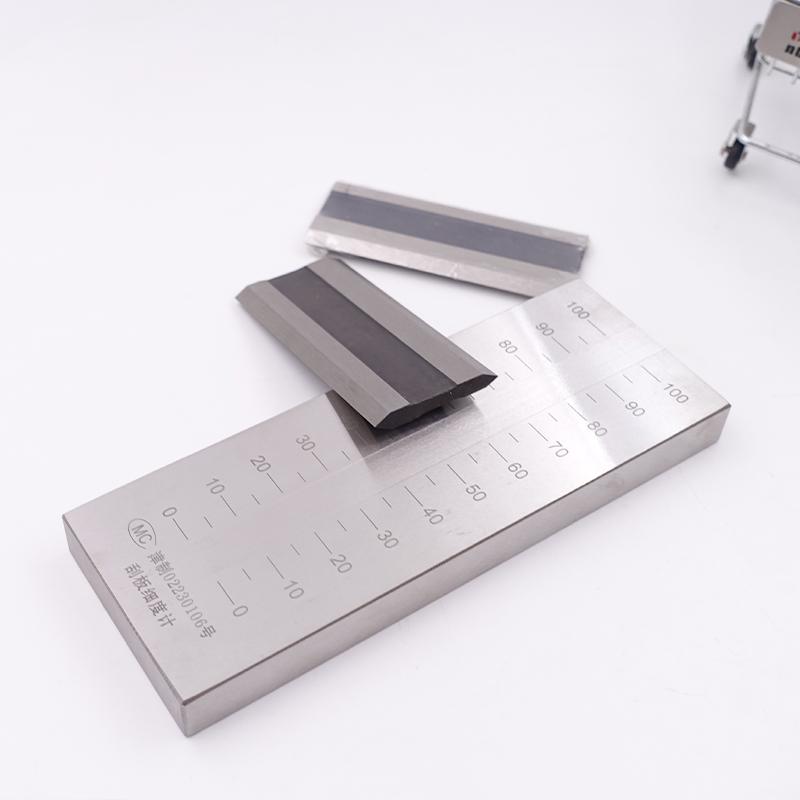

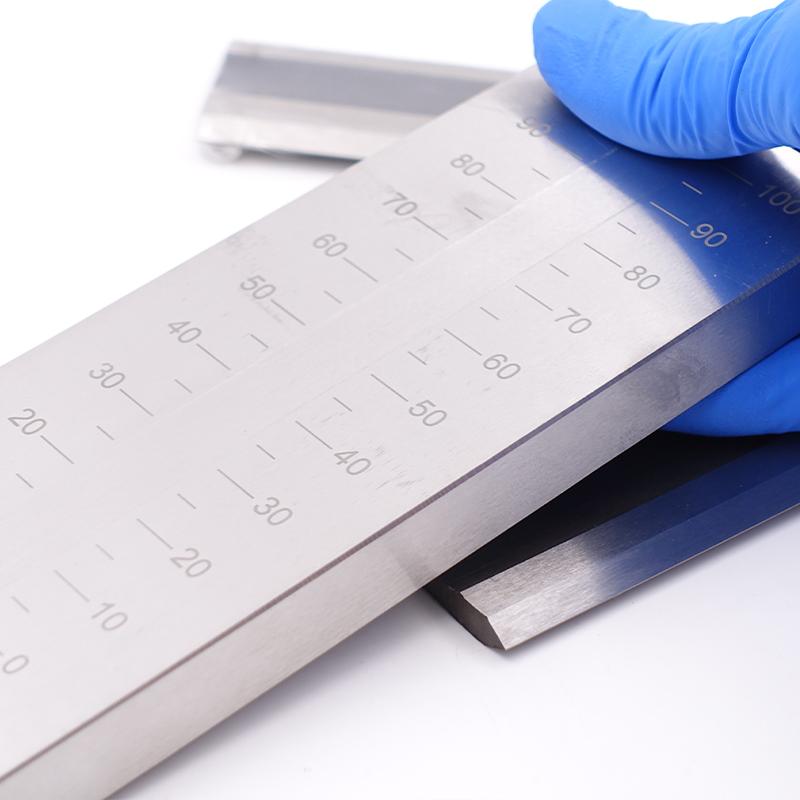

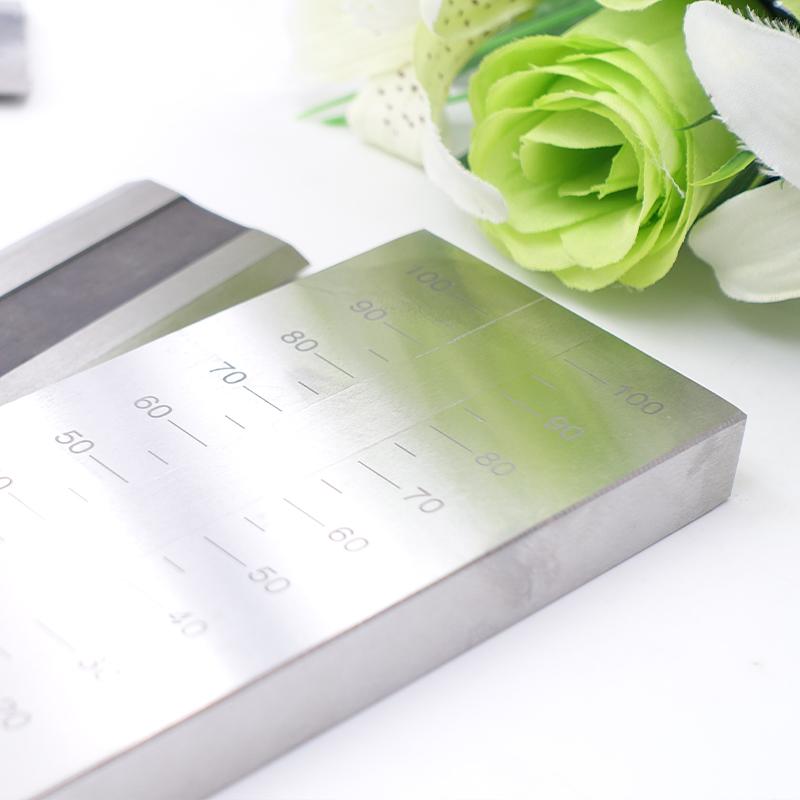

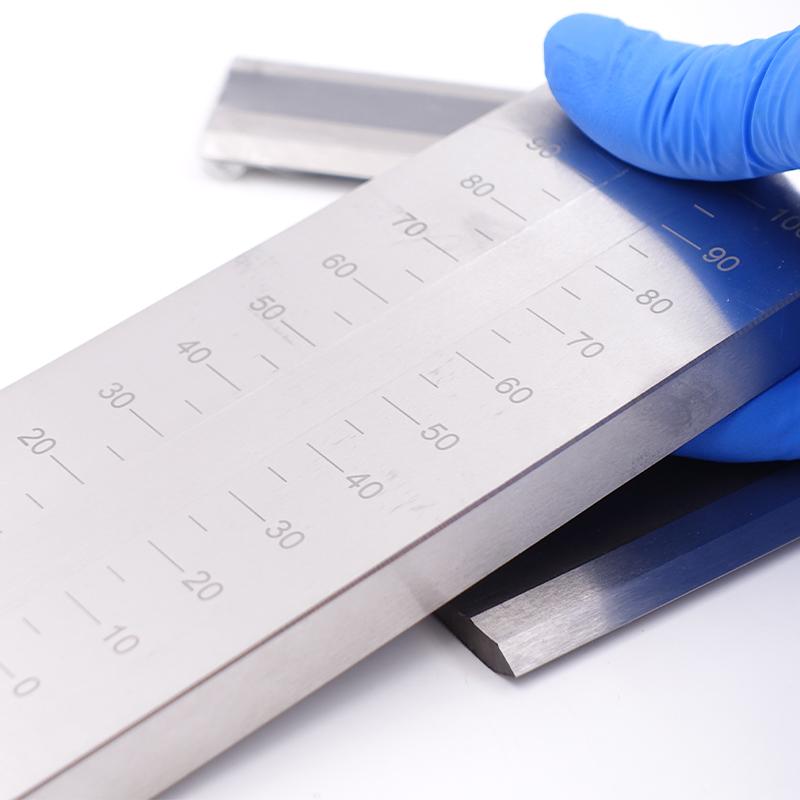

The QXP 0-50 single-slot Fineness of Grind Gauge is produced and designed by JinKeLian, a domestic (CN) brand, in accordance with the relevant provisions of the international standard ISO1524-1983. It is suitable for fineness testing in most paints, paints, pigments and other industries. Measuring instruments required in the room. The QXP 0-50 single-slot Fineness of Grind Gauge is made of stainless steel, equipped with 2 scrapers, and the surface roughness of the scrapers is Ra0.4. The measuring range of this single groove scraper bar Fineness Meter is 0~50 microns.

Product parameters

Squeegee accuracy: blade straight line tolerance 2um, surface roughness Ra0.4

Precautions

1. The front of the scraper can be used as a daily inspection of the straightness of the scraper;

2. Clean the scraper after use, apply anti-rust oil and put it in the box for storage;

3. The front of the scraper and the edge of the scraper must not be bumped;

4. The QXP0-50 single-slot Fineness of Grind Gauge should be calibrated in our factory after one year of use.

Packing Specifications

Each set of QXP0-50 single-slot Fineness of Grind Gauge includes one scraper and two scrapers.

Standards

QXP 0-50 single-slot Fineness of Grind Gauge is manufactured in accordance with the relevant provisions of the international standard ISO1524-1983 (E), and is used for the determination of particle fineness of paint and related products.

Same series model selection

Packing list：Scraper x1, doctor blade x2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
