JINGKELIAN QXP 0-100um single-channe Fineness of Ground Gauge Fineness gauge 0~100μm

QXP 0-100

ISO single-channe Fineness of Ground Gauge

Single-channe, range 0~100μm, scale unit µm, scraper material stainless steel, scraper size 175 * 65 * 13mm, groove size 140 * 12.5mm, Applicable standards GB/T 1724, GB/T6753.1, ISO1524, recommended range 40~90µm.

product description

JinKeLian QXP 0-100um single-groove Fineness of Grind Gauge is a stainless steel Fineness of Grind Gauge with a single groove. The rated range is 0-100 microns. value will be more accurate. The QXP 0-100um single-slot Fineness of Grind Gauge has a chute width of 12.5mm and is equipped with a stainless steel scraper.

The ISO Fineness of Grind Gauge is made in strict accordance with GB/T 1724, GB/T6753.1, ISO1524 and other standards, and is used to measure the particle size and dispersion degree of pigments and impurities in paints, paint pastes, inks and other liquids and slurries , so as to control the quality of dispersed products in production, storage and application, such as paint, plastic, pigment, printing ink, paper, ceramics, medicine, food and other fields.

Product parameters

Steps

Pour a little more sample into the deeper end of the groove, and use the straight edge of the provided scraper to scrape the sample toward the shallower end of the groove, where there are many rough particles on the surface of the fineness plate. is the corresponding test point.

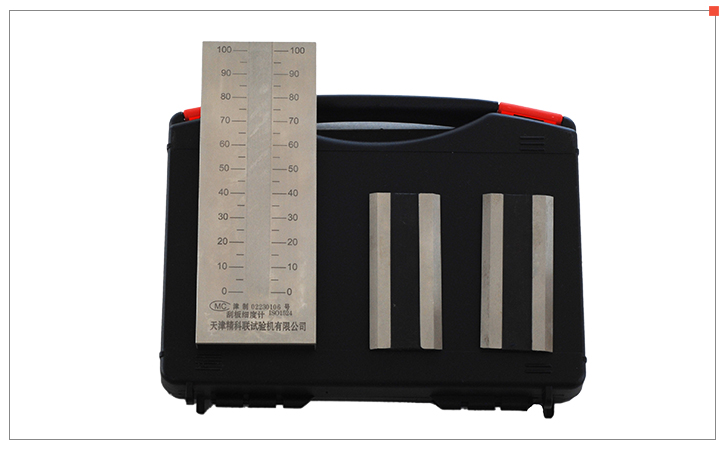

Detailed illustration of QXP single-slot Fineness of Grind Gauge

Various models of QXP single groove Fineness of Grind Gauge

Packing list：Scraper x1, doctor blade x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
