JINGKELIAN QND-4C Viscosity Cup measurement Coatings, paints and other viscosity Measurement range 10-150s viscosity

SE
Outflow time 0~150s, flow hole diameter 4mm, capacity 100ml, Total height 72.5mm, cup body material copper, filter material copper, Applicable standard GB/T 1723, flow hole length 4 +/- 0.02mm.
$136.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

JingKeLian QND-4C Coated 4 Viscometers (Copper Cup)SPEC

JingKeLian QND-4C Coated 4 Viscometers (Copper Cup)Details

JingKeLian QND-4C Coated 4 Viscometers (Copper Cup)Packing list

SKU
NB000563
outflow time
0~150s
Flow hole diameter
4mm
Capacity
100ml
Total height
72.5mm
Cup body material
copper
Filter material
copper
Applicable standard
GB/T 1723
Certificate
without
Outlet height
4±0.02mm
QND-4C
Coated 4 Viscometers (Copper Cup)
Outflow time 0~150s, flow hole diameter 4mm, capacity 100ml, Total height 72.5mm, cup body material copper, filter material copper, Applicable standard GB/T 1723, flow hole length 4 +/- 0.02mm.

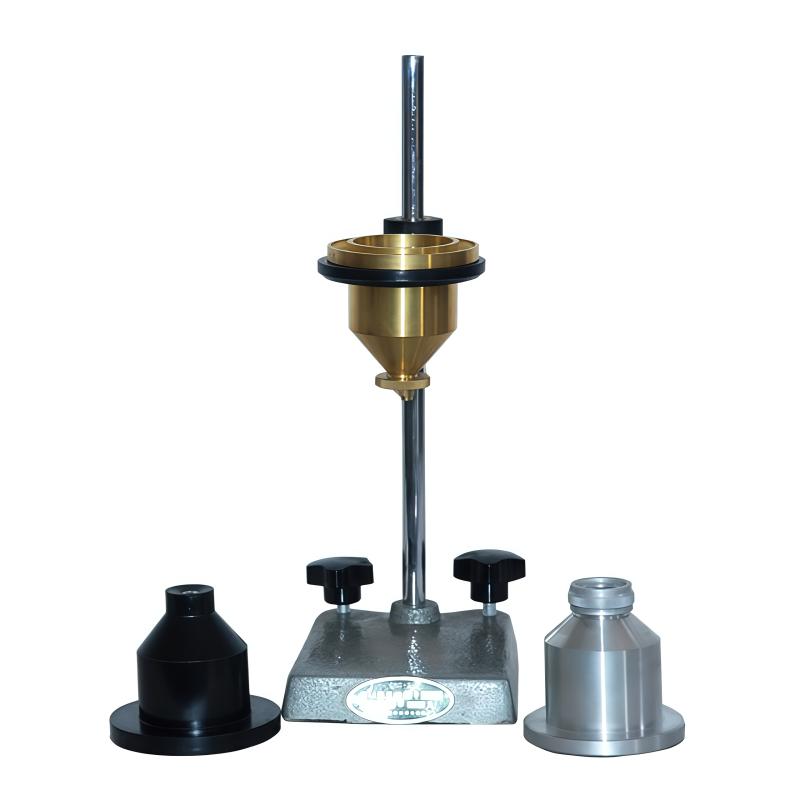

JINGKELIAN QND-4C Viscosity Cup measurement Coatings, paints and other viscosity Measurement range 10-150s viscosity Picture

QND-4C Viscosity Cup overview

QND-4C Viscosity Cup is a desktop structure design Viscosity Cup, the upper part is cylindrical in weight, and the lower part is a conical container. It is suitable for measuring the outflow time range of 0~150s.

QND-4 Viscosity Cup is designed and manufactured according to the national standard GB/T 1723-93. The viscosity measured in this way is the conditional viscosity. That is, the time it takes for a certain amount of sample to flow out of a hole with a specified diameter under certain temperature conditions. Expressed in seconds (s). It is suitable for measuring the viscosity of coatings, paints and other related products.

QND-4 has three cups made of different materials: plastic, aluminum and copper. But the metal cup shall prevail. The QND-4C Viscosity Cup is made of copper.

Detail image

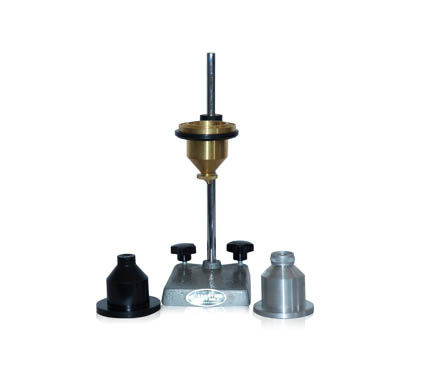

JinKeLian QND-4C Tu 4 Viscometer (Copper Cup) Details Figure 1

Other specifications

modelmaterial
QND-4Abakelite cup
QND-4BAluminum Cup
QND-4Ccopper cup
QND-4Dportable
Other parameters
outlet height4±0.02mm
outlet diameter4±0.02mm
volume100ml
FAQ
QDo you have the 4 Viscometer involved in JT/T821.2?
A The QND-4C can be coated with 4 Viscometers.
QQND-4 copper viscosity cup and bakelite cup which is good?
A Hello, all 4 cups can be used to test Coating viscosity, and the materials are different. You can enter the two product pages of/p/563 and/p/561 to compare.
QDo you need regular correction to apply 4 cups?
A Hello, apply 4 cups to ensure cleaning, no bumps, no need to calibrate.
