Defelsko PosiTector 6000 N0S3 imported platings Thickness Gauge
SERange 0~625μm, split eddy Current; 0 ° micro probe suitable for gadgets or narrow space Coating thickness test; support usb/bluetooth/wifi communication interface; can flip display touch LCD screen; with real-time drawing measurement data, batch processing mode, three scanning modes.
$1756.00/set
PromotionLoading...
Coupon
Model：
PosiTector 6000 N0S3
Similar products
Defelsko PosiTector 6000 N0S3 Coating Thickness GaugeSPEC
Defelsko PosiTector 6000 N0S3 Coating Thickness GaugeDetails

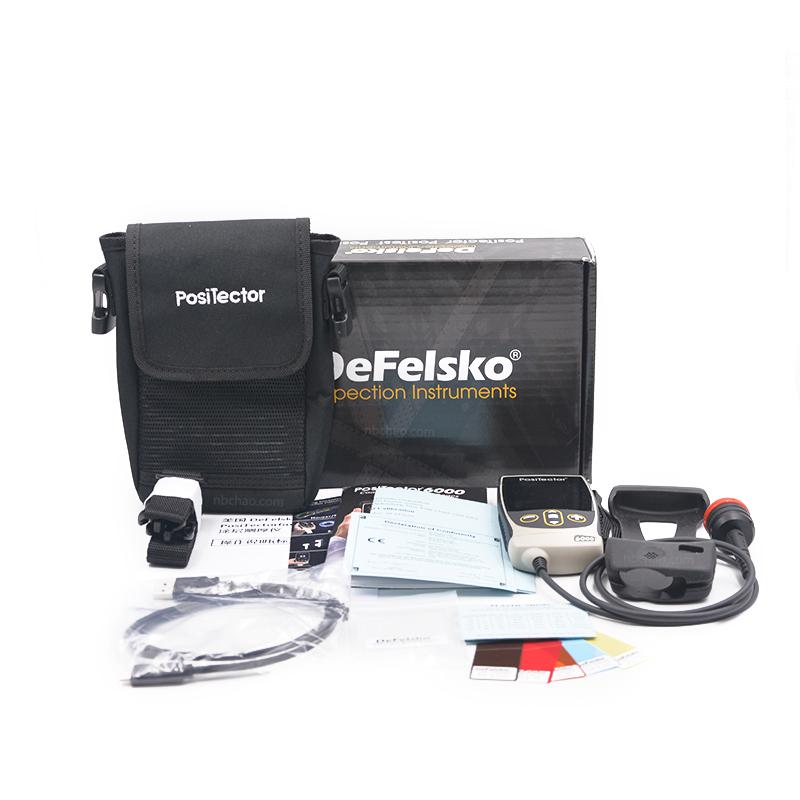

Defelsko PosiTector 6000 N0S3 Coating Thickness GaugePacking list
- SKU
- NB000565
- Measurement principle
- Eddy Current
- Measurement range
- 0~625μm
- margin of error
- ±3%
- Resolution
- 0.1μm
- probe
- N0S3 Probe (0 ° Micro)
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- without
- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English
- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB、Bluetooth
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 250000 Measured values, 1000 groups
- Test environment
- Non-ferrous metal substrate nonconductive coating environment
- Defelsko calibrated standard
- STDS2、STDA2
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- More than 180 readings per minute
PosiTector 6000 N0S3
Coating Thickness Gauge
Range 0~625μm, split eddy Current; 0 ° micro probe suitable for gadgets or narrow space Coating thickness test; support usb/bluetooth/wifi communication interface; can flip display touch LCD screen; with real-time drawing measurement data, batch processing mode, three scanning modes.
Introducing the PosiTector 6000 N0S3
PosiTector 6000 N0S3 Imported Coated Thickness GaugeIt is an imported testing instrument specially developed and produced by Ivesco, a familiar manufacturer of coating Thickness Gauge in the United States, which is specially used to measure the thickness of coating layers, with a measurement range of 0~625 microns, and is a coating Thickness Gauge with a small measurement range and probe in its Positector6000 series coating Thickness Gauge.The PosiTector 6000 N0S3 Imported Coated Thickness Gauge is a split structure that uses the principle of eddy current thickness measurement for stability and reliability.
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QIs this thickness gauge suitable for use in the workshop?
A
Ideal for field use! IP65 Protection Rating, dustproof and waterproof, Probe is small and flexible, and can measure workpieces of various complex shapes. With more than 180 readings per minute, it is very efficient, the color Touchscreen is easy to operate, and it also supports Bluetooth data transmission for easy field recording.
QCan I measure the thickness of the conformal paint on the circuit board?
A
Mainly look at the substrate material
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A

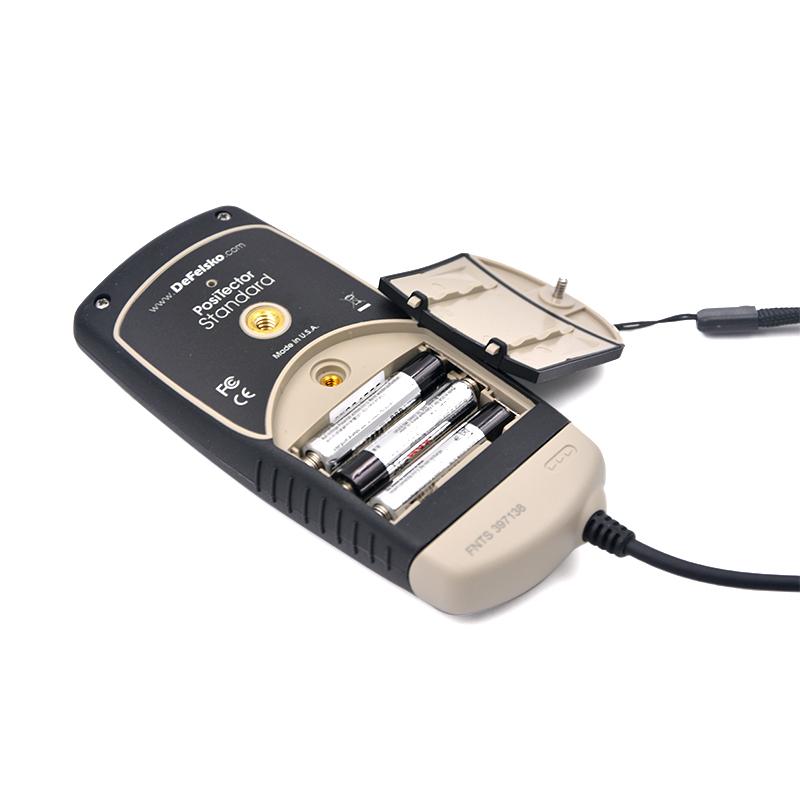

Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QCan the host of PosiTector6000 N0S3 Coating thickness gauge be equipped with a F0S probe?
A
Hello, yes, the Defelsko PosiTector host is universal.
QAre all Coating thickness gauges available for testing in ASTME376?
A
Not necessarily, but this PosiTector 6000 N0S3 Coating thickness gauge can be considered.
Knowledge
Standard
- 1ISO 《Non-magnetic metallic coatings on metallic and non-metallic basis materials — Measurement of coating thickness — Phase-sensitive eddycurrent method》
- 2JB/T 13939-2020《Nondestructive testing instruments.Eddy current thickness gauge》
- 3QJ 990.3A-2011《Inspection methods of coating.Part 3:Measurement of coating thickness》
- 4JJG 818-2018《Magnetic and Eddy Current M easuring I nstrument for Coating Thickness》
- 5GB/T 1727-2021《General methods for preparation of coating films》
- 6HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 7ASTM B244-2021《Standard Test Method for Measurement of Thickness of Anodic Coatings on Aluminum and of Other Nonconductive Coatings on Nonmagnetic Basis Metals with Eddy-Current Instruments》
- 8ISO 2360-2017《Non-conductive coatings on non-magnetic electrically conductive base metals — Measurement of coating thickness — Amplitude-sensitive eddy-current method》
- 9ASTM D7091-2022《Standard Practice for Nondestructive Measurement of Dry Film Thickness of Nonmagnetic Coatings Applied to Ferrous Metals and Nonmagnetic, Nonconductive Coatings Applied to Non-Ferrous Metals》
- 10ASTM E376-2019《Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy Current (Electromagnetic) Testing Methods》
