Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge non-ferrous metal substrate (such as copper and aluminum) nonconductive coating

SE
With 0 ° micro probe, it is specially used for the measurement of small area workpieces or the measurement of narrow Coating thickness in some areas. Suitable for non-ferrous metal (aluminum, copper) substrates
$1266.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 N0S1 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 N0S1 Coating Thickness GaugeDetails

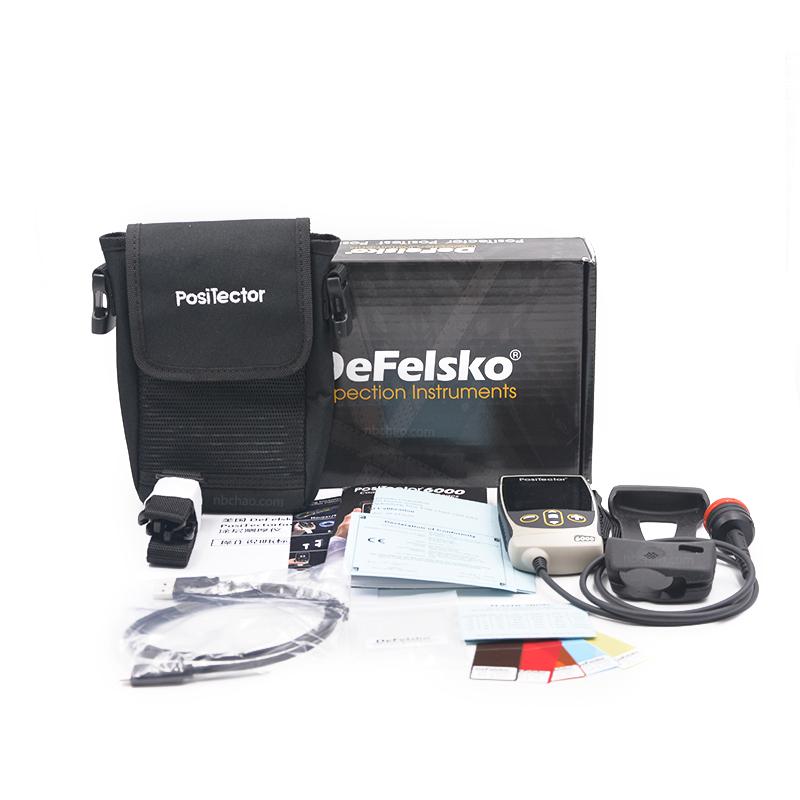

Defelsko PosiTector 6000 N0S1 Coating Thickness GaugePacking list

SKU
NB000569
Measurement principle
Eddy Current
Measurement range
0~625μm
margin of error
±3%
Resolution
0.1μm
probe
N0S1 Probe (0 ° Micro)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
Non-ferrous metal substrate nonconductive coating environment
Defelsko calibrated standard
STDS2、STDA2
screen image saving
One hundred.
Protection level
IP65
Measurement speed
60 + readings per minute
PosiTector 6000 N0S1
Coating Thickness Gauge
With 0 ° micro probe, it is specially used for the measurement of small area workpieces or the measurement of narrow Coating thickness in some areas. Suitable for non-ferrous metal (aluminum, copper) substrates
Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge non-ferrous metal substrate (such as copper and aluminum) nonconductive coating Picture

Coating Thickness Gauge selector

Overview

The Defelsko positector 6000 N0S1 coating Thickness Gauge is a split eddy current coating Thickness Gauge using a miniature 0° transducer, which is designed to measure small areas of workpieces or to measure the thickness of a narrow coating.The Positector 6000 N0S1 Coating Thickness Gauge is:PosiTector 6000 seriesStandardCoating Thickness Gauge with 250 test data storage function, large LCD screen can display the measured thickness data in real time during the thickness measurement process, and the F/N character represents the display of the measured substrate.

Single Function:

Substrate: Non-ferrous metals (aluminum, copper)

Coating: Non-conductive coating

N0S1 - Non-ferrous metal (aluminum, copper) 110° miniature probe

New features have been added to the new version of the Defelsko PosiTector console in the United States

Introducing the Defelsko brand

Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Protective benefits of the Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge

Typical application areas of the Defelsko PosiTector 6000 N0S1 coating Thickness Gauge

Why Choose Nanbeichao to Buy the Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure the film thickness on aluminum, is there a suitable instrument recommended?
A Recommended Defelsko PosiTector 6000 N0S1 Coating thickness gauge, which uses eddy current principle for the measurement of non-conductive coatings on non-ferrous metal substrates such as aluminum and copper, 0 ° miniature Probe is suitable for small area and narrow area measurement.
QWhat industrial scenarios is this thickness gauge suitable for?
A Quality control links suitable for automotive manufacturing, aerospace, electronic components and other industries, because these areas often need to measure anodic oxidation, painting and other nonconductive coatings on aluminum parts Film thickness to ensure that products comply with ISO, ASTM and other international standards.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhat is the probe measurement diameter for Defelsko's Coating thickness gauge?
A Hello, it's 5mm.
QIs the host of defelsko's PosiTector6000 and 200 ultrasonic Coating thickness gauge the same?
A Hello, it's the same.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QWhat is the Film thickness test range for the Defelsko PosiTector6000N0S1 Coating thickness gauge?
A Hello, the thickness measurement range of N0S1 is 0~ 625μm.
QHello, can this Coating thickness gauge from defelsko be used for underwater testing?
A Hello, yes, the probe has waterproof function.
QHelp me find a Coating thickness gauge that meets ASTMD7091 standard
A This PosiTector 6000 N0S1 Coating thickness gauge is ok!
QHow much data can the Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge store?
A Hello, the Defelsko coating thickness gauge can store 250 test data.
