Japan OSP-02/60 Mayer Rods WFT 2μm length 60mm
SEProvide 2 micron wet-film scraping sample, low film width requirements or good film effect on tinplate, diameter 10mm, Total length 60mm, application width 60mm
$115.00/piece
PromotionLoading...
Coupon
Model：
OSP-02/60
Similar products
![Japan OSP-02/500 Grooved Rods WFT 2μm length 500mm [Customized]](http://img.nbchao.com/imgs/200/2018/12/21/1057210394789041.jpg)
OSP OSP-02/60 coating rodSPEC
OSP OSP-02/60 coating rodDetails
OSP OSP-02/60 coating rodPacking list
- SKU
- NB000057
- Production process
- Formed
- WFT
- 2μm
- diameter
- 10mm
- Total length
- 60mm
- Application width
- 60mm
- Grip width
- 0
- material
- 304 stainless steel

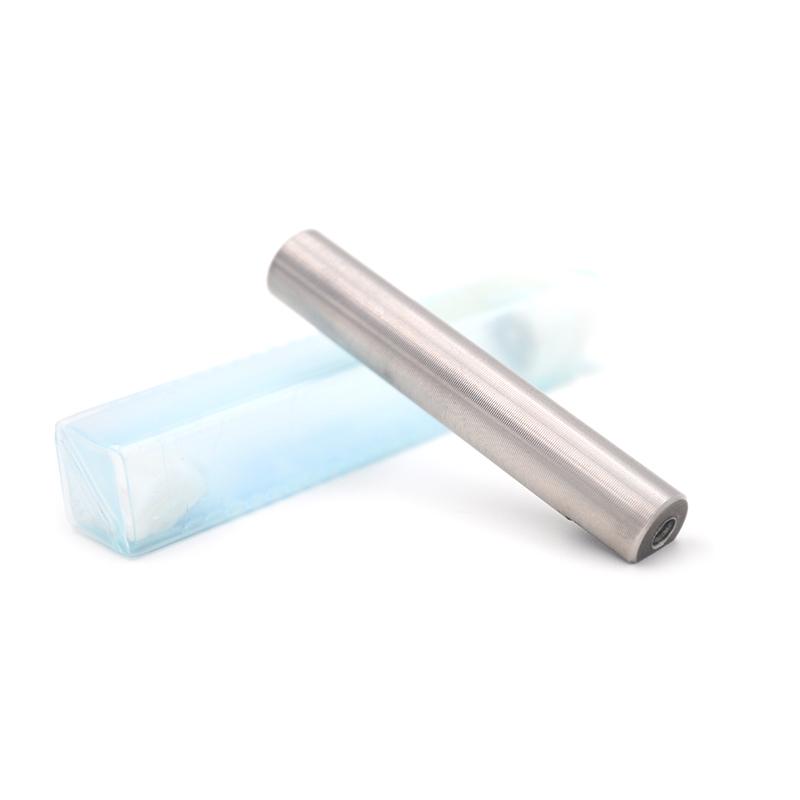

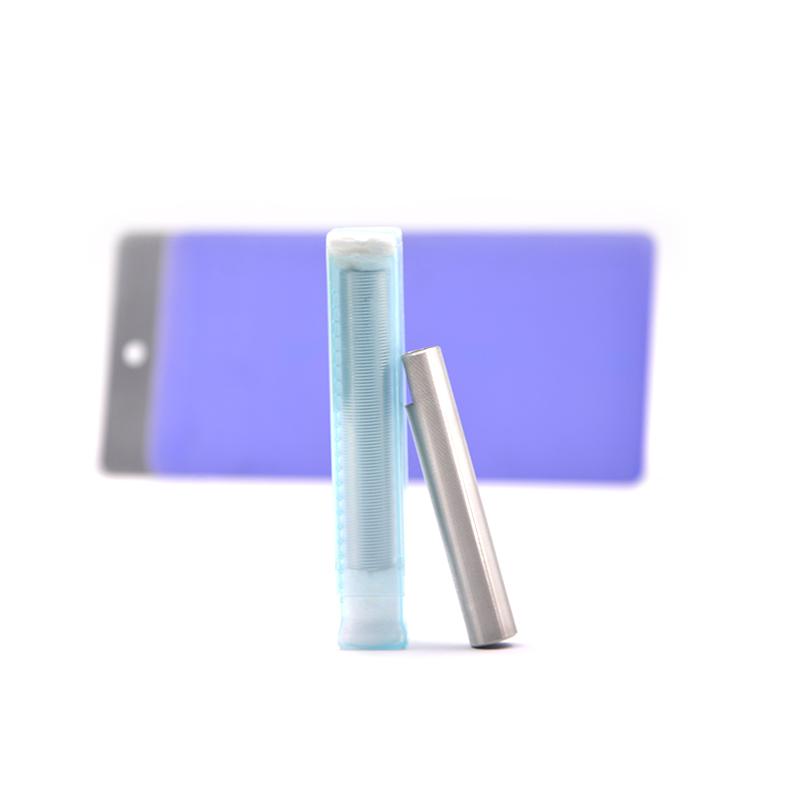

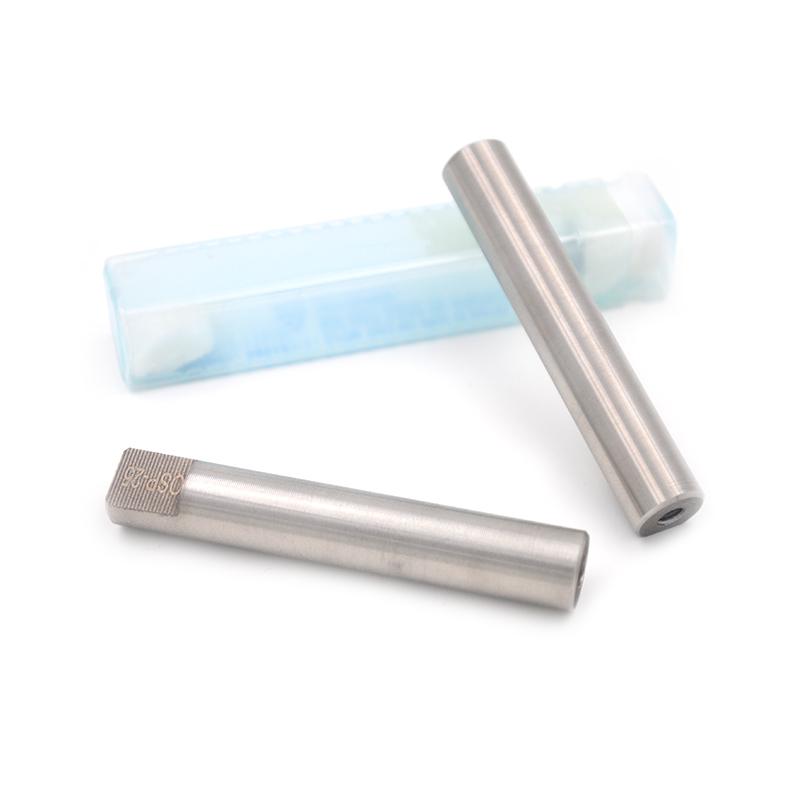

OSP-02/60
coating rod
Provide 2 micron wet-film scraping sample, low film width requirements or good film effect on tinplate, diameter 10mm, Total length 60mm, application width 60mm

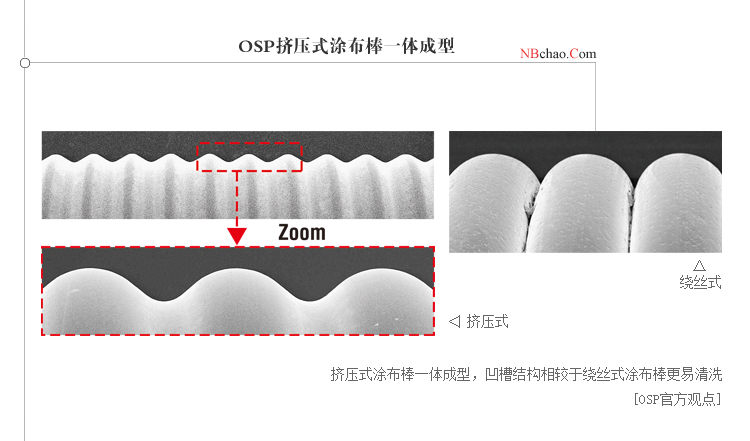

Japan OSP-02 coating rod is a kind of extruded coating rod. The wet film thickness of the coating film is 2μm, and it is divided into three lengths: 60mm, 250mm, and 400mm. Among them, the 60mm length coating rod is the shorter one. Type coating rod, which solves the problem of some users' demand for small coating width, saves cost and reduces waste. The 400mm length of the OSP coating rod has a handle part of 50mm at both ends, and the 250mm and 60mm have no handle part, and the handle can be purchased separately for matching coating.
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.
FAQ
QDo you have the Mayer-Rod Film Applicator for testing Coating emulsion? A film of about 2 microns
A
Hello, OSP's No. 2 rod film Film thickness is 2 microns, and there are three Spreader widths of 60mm, 250mm and 300mm.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A
The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QMeet ASTMD823 Mayer Rods
A
OSP-02/60 Mayer Rods, please refer to it.
Knowledge
- 1Bar Spreader Technology: Principles, Applications and Advantages over Miscellaneous coating methods
Standard
- 1GB/T 1727-2021《General methods for preparation of coating films》
- 2HG/T 5370-2018《Waterborne coatings for bicycles》
- 3HG/T 3951-2007《Water based colorants for architectural coatings》
- 4GB/T 13217.1-2020《Test method for colour and tinctorial strength of ink》
- 5GB/T 26461-2011《Gravure ink for paper》
- 6ASTM D823-2018《Paints, varnishes and related products of uniform thickness on the test board》
