Defelsko PosiTector 6000 FS3 Coating Thickness Gauge Iron metal substrate (steel, iron, etc.) Split probe type

SE
Advanced version defelsko6000 Thickness Gauge, magnetic Induction principle, thickness measurement range 0~1.5mm, accuracy accuracy +/- 1%, imported from the United States, with calibrated certificate, touch screen operation, screen image saving 100, in line with ISO, ASTM and other standards.
$1456.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FS3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FS3 Coating Thickness GaugeDetails

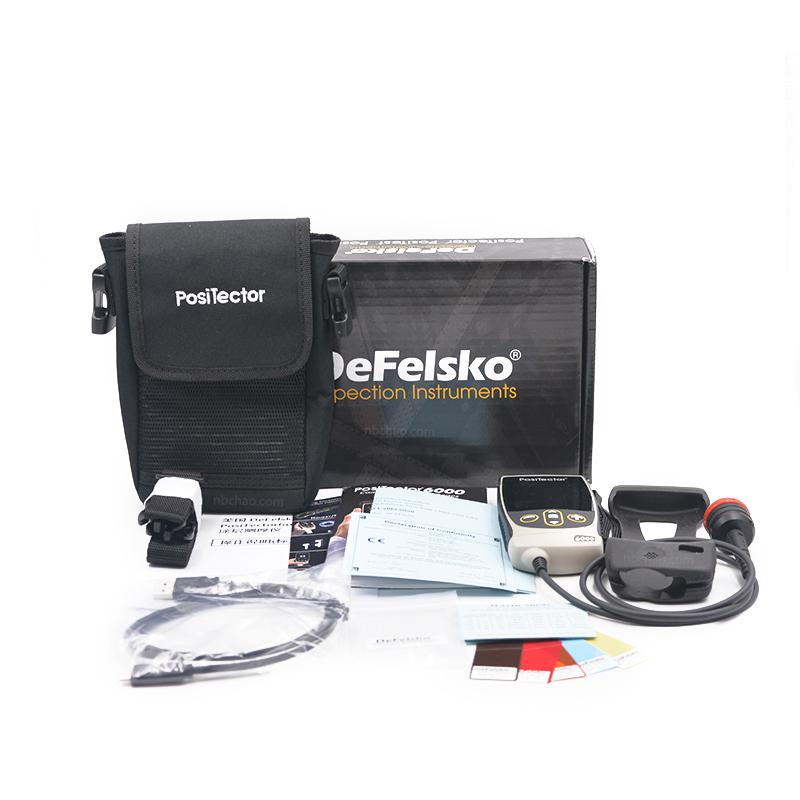

Defelsko PosiTector 6000 FS3 Coating Thickness GaugePacking list

SKU
NB000572
Measurement principle
Magnetic Induction
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
FS3 Probe (General Purpose)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.

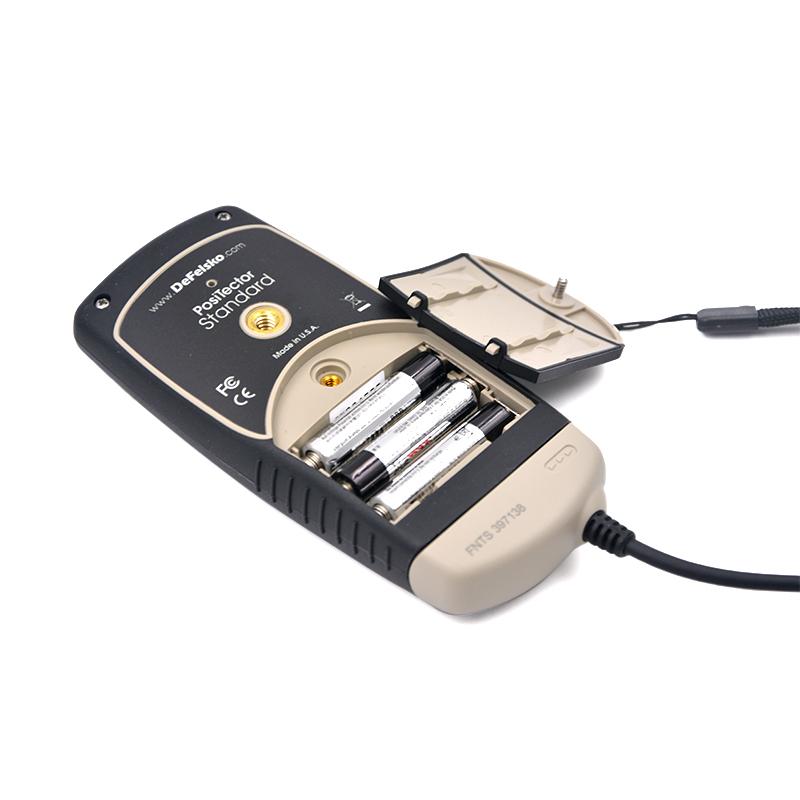

Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English

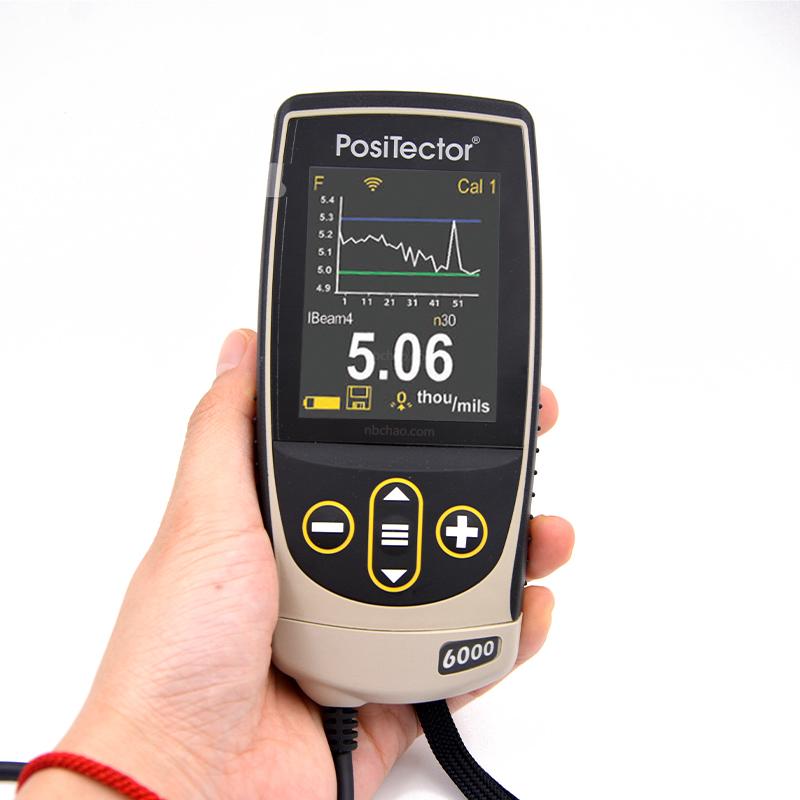

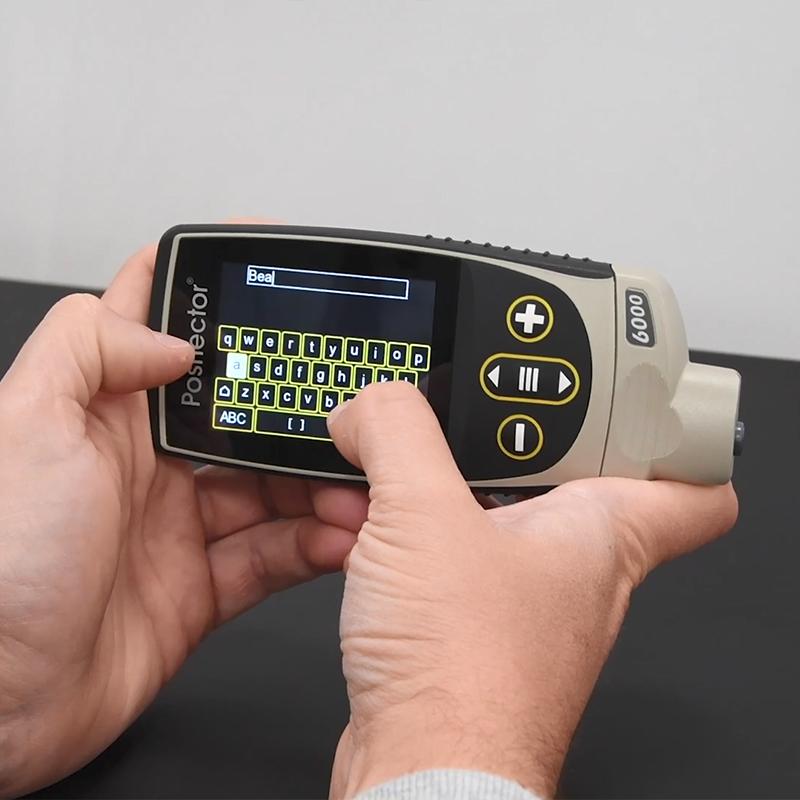

Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
250000 Measured values, 1000 groups
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDS1、STDA1
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 FS3
Coating Thickness Gauge
Advanced version defelsko6000 Thickness Gauge, magnetic Induction principle, thickness measurement range 0~1.5mm, accuracy accuracy +/- 1%, imported from the United States, with calibrated certificate, touch screen operation, screen image saving 100, in line with ISO, ASTM and other standards.

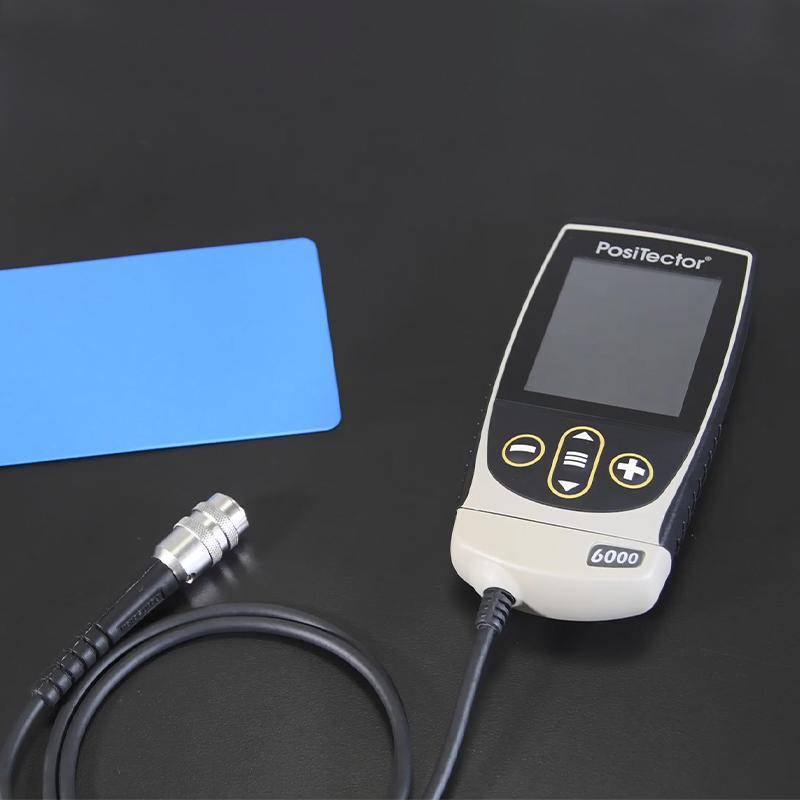

Defelsko PosiTector 6000 FS3 Coating Thickness Gauge Iron metal substrate (steel, iron, etc.) Split probe type Picture

Coating Thickness Gauge selector

Overview

The Defelsko PosiTector 6000 FS3 Coating Thickness Gauge is a magnetic metal coating Thickness Gauge used to measure ferrous metal substrates, which is imported from Jeffs High in the United States, which has the advantages of accurate measurement, wide use, compliance with a variety of standards, and easy to use, and the measurement accuracy is higher than that of most domestic (CN) coating Thickness Gauges.The PosiTector 6000 FS3 Coating Thickness Gauge is a general-purpose split probe that measures thickness in the 0~1500 micron range, making it an advanced coating Thickness Gauge.201403171759339576.jpg

Single Function:

Substrate: Ferrous metal (steel)

Coating: Non-magnetic coating

FS3 – ferrous metal substrate (steel, iron, etc.) – split probe type



New features have been added to the new version of the Defelsko PosiTector console in the United States

Introducing the Defelsko brand

Defelsko PosiTector 6000 FS3 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

The protective benefits of the Defelsko PosiTector 6000 FS3 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FS3 Coating Thickness Gauge

Typical application area of the Defelsko PosiTector 6000 FS3 coating Thickness Gauge in the United States

Why choose the Defelsko PosiTector 6000 FS3 Coating Thickness Gauge from the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure the paints Film thickness on steel, which instrument is suitable?
A The PosiTector 6000 FS3 Coating thickness gauge is recommended for the measurement of nonmagnetic coatings on ferrous metal substrates, such as paints. This imported instrument has high measurement accuracy and can measure more than 180 data per minute, making it suitable for Quality control and on-site inspection of painting construction.
QI need to measure the galvanized film thickness, what function thickness gauge should I choose?
A If you are measuring galvanized layers on steel substrates, the PosiTector 6000 FS3 is suitable. It uses the principle of magnetic Induction to measure nonmagnetic coatings on ferrous metals. The galvanized layer is in this range. The instrument has a resolution of 0.1 microns and can accurately control the platings mass.
QDefelsko 6000 thickness gauge measures steel, the thickest is about 200 microns, which model is suitable?
A FS3 split Coating thickness gauge can.
QIron-based painting, iron surface phosphating, iron surface gluing, which model to choose?
A Both 6000FS1 and 6000FS3 are OK.
QBuy a Coating thickness gauge that can be used underwater, as long as the probe is launched, the magnetic iron is within 200, it is a steel pipe with a large arc, the diameter is more than 5 meters, the longer the probe line, the better
A Defelsko probe for underwater measurement with extension cable up to 75m
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QCan this thickness gauge test the Film thickness of rubber layer?
A Hello, this is the principle of magnetic Induction, which can test the film thickness of the rubber layer on the magnetic metal.
QThis American Coating thickness gauge has a calibrated certificate, right?
A Hello, yes.
QPrinting ink is coated on tin-lead alloy. Printing ink thickness of dry film is about 20μm. Do you have an instrument that can test Printing ink Film thickness?
A This one is fine, or you can consider FS1, which is cheaper.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
