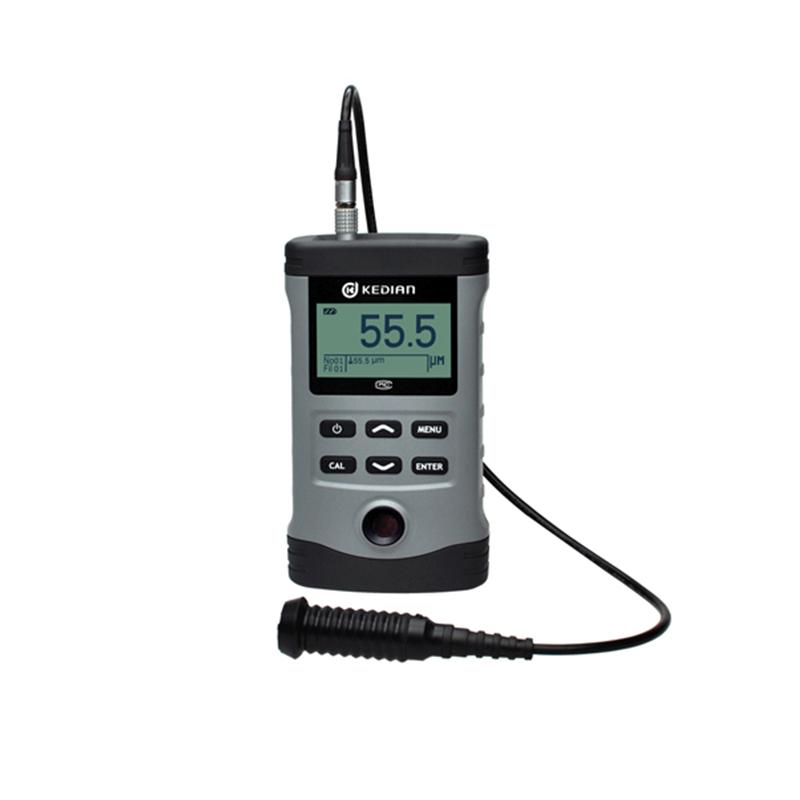

Kedian MC-3000C paints Thickness Gauge, thickness range 0~5000um
MC-3000C
KODIN MC-3000C Coating Thickness GaugeSPEC
KODIN MC-3000C Coating Thickness GaugeDetails
KODIN MC-3000C Coating Thickness GaugePacking list
- SKU
- NB005737
- Measurement principle
- Magnetic Induction
- Measurement range
- 0~5000μm
- margin of error
- ±3%
- Resolution
- 0.1μm
- probe
- Split F probe
- statistical function
- MAX Maximum, MIN Minimum, Average
- Power Supply
- 2 * AA battery, continuous use time up to 200 hours
- Calibrated Certificate
- none
- system language
- Chinese
- Display screen
- 3-Digit LCD digital display
- supporting software
- none
- Machine Weight
- 360g
- Machine size
- 146*81*30mm
- Voltage prompt
- Display icon in upper left corner
- Storage method
- Manually stored measurements
- Data storage
- 100 Measured values, 6 groups
- Operating temperature
- 0~40℃
- shutdown mode
- The shutdown mode can be manually set.
- Keypad
- 6-Key waterproof, oil-proof keyboard
- Relative Humidity
- ≤90%RH
Kedian MC-3000C paint Thickness Gauge can easily and non-destructively measure the thickness of non-magnetic coating on ferromagnetic materials, such as zinc, copper, chromium or the thickness of paint, enamel, fiberglass, rubber, spraying, asphalt and other coatings on the surface of steel;
PrimacyYes
● Basic measurement mode: regular mode, minimum mode, statistical mode
●Monitoring and measurement mode: the difference can be set, and the upper and lower limit alarm settings can be set
● You can delete and store a single data, a group of data, or all data
●Zero-point calibration, two-point calibration and system calibration can be performed
●The shutdown mode can be set, the backlight is turned on or off, and the factory state can be restored
●Stored values can be printed, and statistical values can also be printed
●There are 6 groups of data stored in groups, and each group stores 100 measurement points
●Stored measurements can be viewed in groups

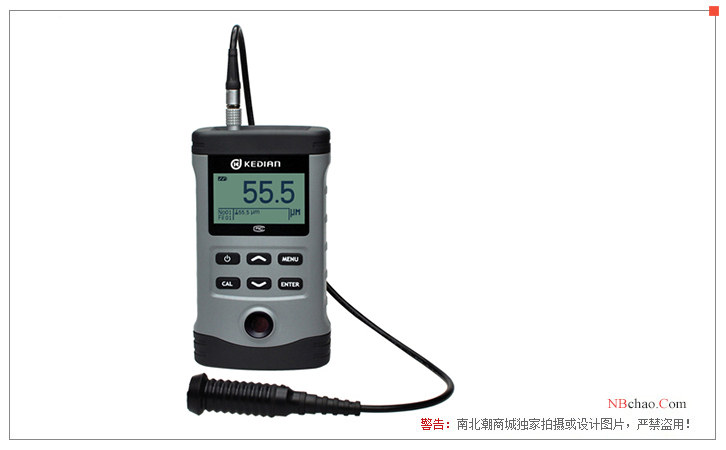

Product display diagram
