Defelsko PosiTector 6000 FNS1 coated platings Thickness Gauge that automatically converts in magnetic and nonmagnetic environments

SE
PosiTector6000 series popular models, 0~1500μm range, magnetic eddy current dual function; probe with temperature compensation; can flip display touch LCD screen, support screenshot; with sound visual alarm.
$1432.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FNS1 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FNS1 Coating Thickness GaugeDetails

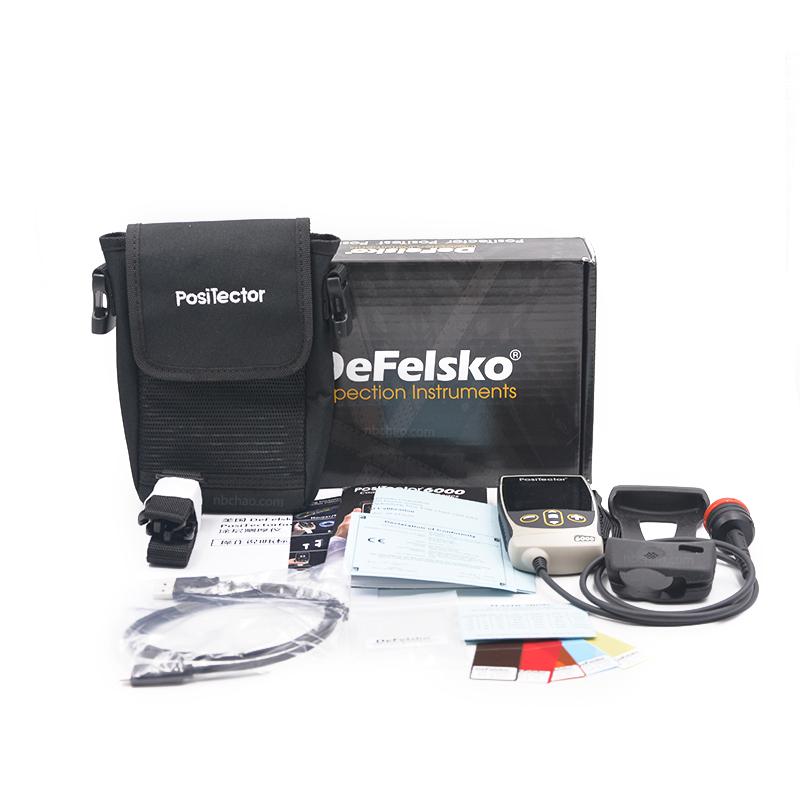

Defelsko PosiTector 6000 FNS1 Coating Thickness GaugePacking list

SKU
NB000574
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
FNS1 Probe (Universal)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply

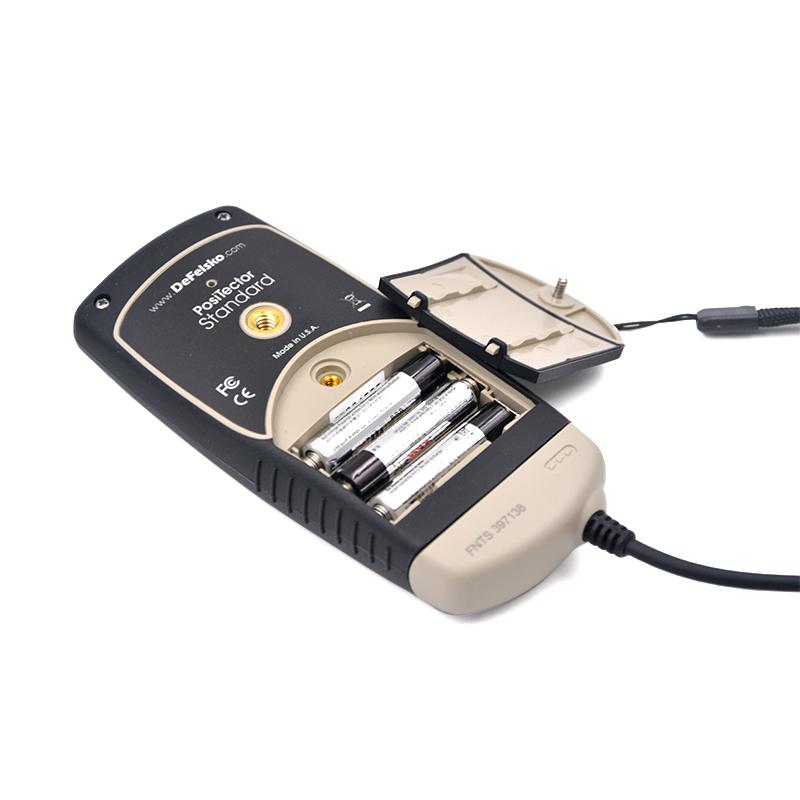

3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
All metal substrates automatically convert measurements in magnetic and nonmagnetic environments
Defelsko calibrated standard
STDS1、STDA1
screen image saving
One hundred.
Protection level
IP65
Measurement speed
60 + readings per minute
PosiTector 6000 FNS1
Coating Thickness Gauge
PosiTector6000 series popular models, 0~1500μm range, magnetic eddy current dual function; probe with temperature compensation; can flip display touch LCD screen, support screenshot; with sound visual alarm.
Defelsko PosiTector 6000 FNS1 coated platings Thickness Gauge that automatically converts in magnetic and nonmagnetic environments Picture

Coating Thickness Gauge selector

Introducing the PosiTector 6000 FNS1

The Defelsko PosiTector 6000 FNS1 Coating Thickness Gauge is a standard dual-function Positector 6000 series coating Thickness Gauge that uses a general-purpose split probe equipped with F and N probes to measure both magnetic and non-magnetic substrate coating thicknesses.The PosiTector 6000 FNS1 Coating Thickness Gauge has a measurement range of 0~1500 microns, can store up to 250 measurements, and is equipped with Posisoft analysis software for easy analysis and management of test data.

Dual-function Thickness Gauge – for all ferrous and non-ferrous coating thickness inspections

FN – All Metal Substrates – automatically identifies the substrate type and measurements

1. Substrate: ferrous metal (steel)

Coating: Non-magnetic coating

2. Substrate: non-ferrous metal (aluminum, copper)

Coating: Non-conductive coating

Split Probe Type – The FNS1 Coating Thickness Gauge probe replacement is easy!

The dual-purpose FNS1 gauge is interchangeable with a variety of transducers and is compatible with all host computers

All metal surfaces can be measured

New features have been added to the new version of the Defelsko PosiTector console in the United States

Introducing the Defelsko brand

Defelsko PosiTector 6000 FNS1 Coated Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 FNS1 Coated Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FNS1 Coating Thickness Gauge

Typical application areas of the Defelsko PosiTector 6000 FNS1 coating Thickness Gauge

Why choose the Defelsko PosiTector 6000 FNS1 Coating Thickness Gauge from the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QIs this a multifunctional Film thickness gauge? Iron-based and non-iron-based can be tested.
A Yes, this is the magnetic and nonmagnetic dual-function Coating thickness gauge.
Q1. Base metal, stainless steel, titanium alloy 2. lame plating layer: arc lame plating zinc layer 3. lame plating thickness: 0.025-0.1mm
A Coating thickness gauge with 6000 FNS1
QSubstrate is mainly copper; Miscellaneous materials are also available, such as FR4 fiberglass, steel, and even compositions with copper wiring and fiberglass; FR4 fiberglass is Non-metallic Inks type: epoxy resin Inks thickness: 5-100μm Accuracy requirements: +/- 2μm Size of inks area: 2 * 2mm-7 * 7mm
A You can use Defelsko's host + 2 probes, a 6000 series magnetic Induction eddy current dual-function probe, and a probe to test the principle of non-metallic substrate ultrasound
QI want to find a thickness gauge that can measure the thickness of the galvanized layer. The galvanized layer is relatively thin and needs to be more accurate, within 10μm.
A This one is ok.
QMeasurement range 0-1000 microns, magnetic, nonmagnetic applicable, to have Measurement test report, choose which?
A Defelsko6000 fns1 can be tested.
QThis one is non-metallic on metal (metal surface spray). What I want to measure now is galvanized metal surface; substrate, magnetic metal
A Can test
QDoes the PosiTector 6000 FNS1 platings thickness gauge calibrate the standard sheet on the iron block?
A Yes.
QAluminum alloy anodic oxidation thickness detection I want an instrument that can detect a circular surface. This is not a coating, but a surface anodic oxidation treatment with a thickness between 0-30micron. The small diameter is 20mm, the large diameter is 94mm.
A Recommendation: 6000FNS1, support sample testing.
QMainly measurement of body, metal surface painting thickness
A Recommended Defelsko PosiTector 6000 FNS1 for all metal substrate coatings
QMeasure PVC leather, about 0.5-2 thickness
A This one can only test 0-1500μm and requires a metal substrate
