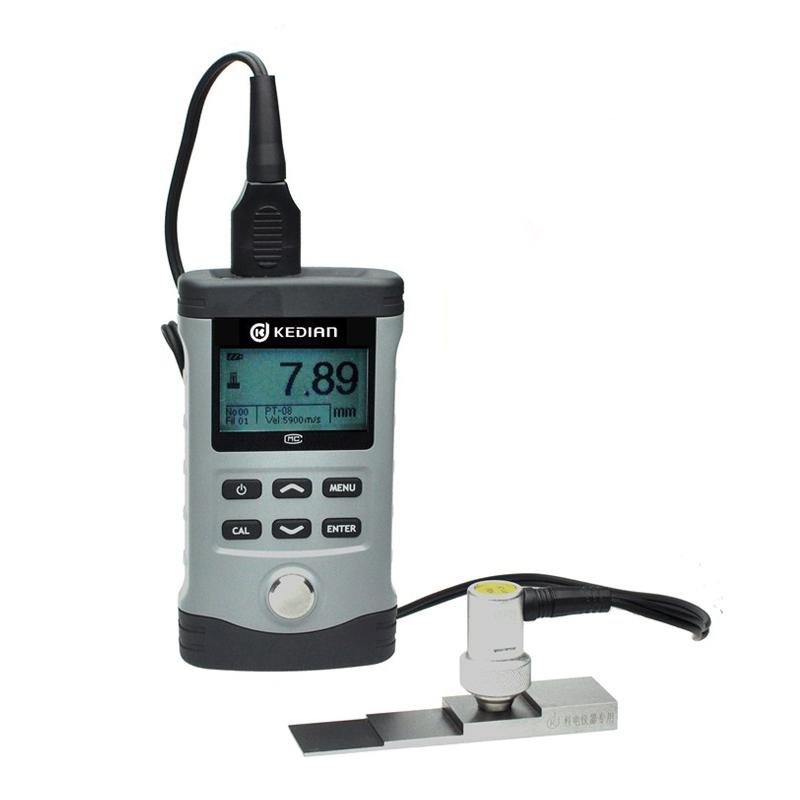

Kedian MC-3000F magnetic platings Thickness Gauge, suitable for automobiles, Eletroplating, spraying, plastics, etc

MC-3000F

Platings Thickness Gauge

MC3000F Overview of Magnetic Plating Thickness Gauges

The MC-3000 Magnetic Coating Thickness Gauge with F-probe is used to measure the thickness of the coating on magnetic metals. The unique deviation automatic tracking technology makes the measured value more accurate, the probe is processed according to German process standards, and the use of new alloy materials greatly improves the service life and accuracy of the probe. The magnetic coating Thickness Gauge can easily and non-destructively measure the thickness of the non-magnetic coating on ferromagnetic materials, such as zinc, copper, chromium and other coatings on the surface of steel or the thickness of paint, enamel, fiberglass, spraying, asphalt and other coatings.

Application

MC-3000 magnetic coating Thickness Gauge is widely used in machinery, automobile, shipbuilding, petroleum, chemical, electroplating, plastic spraying, enamel, plastic and other industries. This type of coating Thickness Gauge.

Product performance

1. Basic measurement mode: conventional mode, minimum mode, statistical mode.

2. Monitoring and measurement mode: the difference can be set, and the upper and lower limit alarm settings can be set.

3. You can choose to delete a single stored data, or a certain group of data, or clear all data.

4. Zero-point calibration, two-point calibration and system calibration can be carried out.

5. The shutdown mode can be set, the backlight can be turned on or off, and the factory state can be restored.

6. It can print the stored value and the statistical value.

7. There are 6 groups of data stored in groups, and each group stores 99 measurement points.

8. The stored measured values can be viewed in groups.

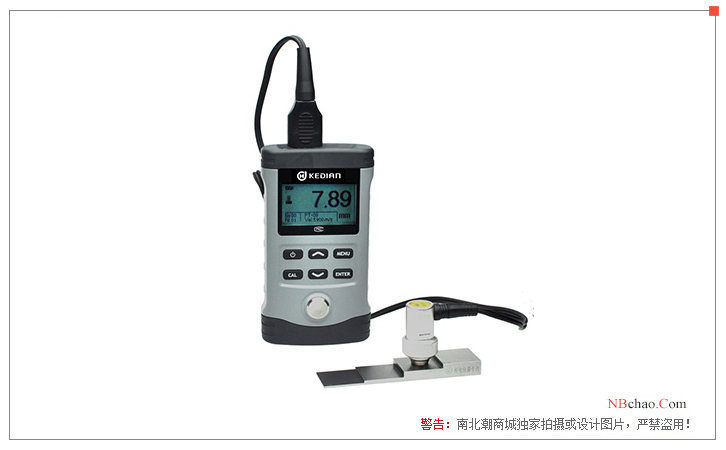

Product display diagram

Packing list： host x1, probe x1, coupling agent x1, battery x2, instruction manual x1, warranty card x1, certificate x1, suitcase x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
