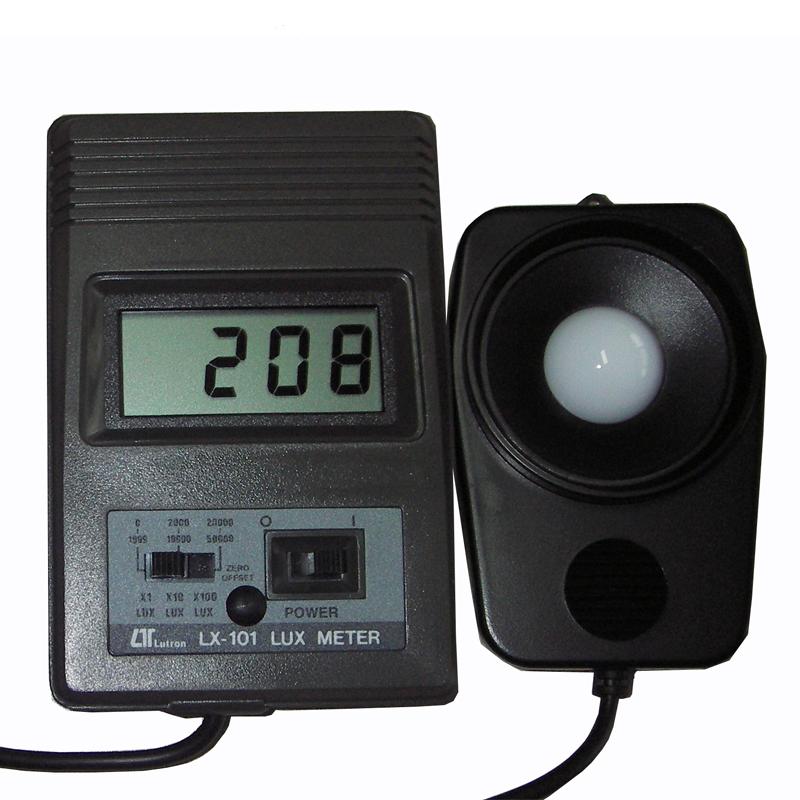

TEC LX-101 White luminometer Range 0~50000Lux C.I.E. Photo Spectrum Applicable

TEC LX-101 white luminometer is a unique photographic diode and Color Correction filter white luminometer, suitable for C.I.E. photo spectrum, LX-101 measurement range of 0~50000Lux.
Model：
Certificate
Contact
Details SPEC CAT

KODIN LX-101 White luminometerSPEC

KODIN LX-101 White luminometerDetails

KODIN LX-101 White luminometerPacking list

SKU
NB005755
Measurement range
0 ~ 50000Lux （ 0 ~ 2000 Luxury ≤ 2000 ~ 20000 Luxury, 20000 ~ 50000 LuxÕ ）
Accuracy
+/- (5% + 2d) Accuracy Measurement conditions are: Standard parallel light tungsten lamp, temperature 2856K
Resolution
1 Lux；10 Lux；100 Lux
Response time
0.4s
Operating temperature
0~50℃
Operating humidity
Less than 80% RH
Sensors
Unique photodiode with Color Correction Filter
show
13mm LCD
Power Supply
9V battery
current consumption
DC 2mA
Instrument Weight
160G (including battery)
Host size
108*73*23mm
Sensors size
82*73*3mm
LX-101
White luminometer
TEC LX-101 White luminometer Range 0~50000Lux C.I.E. Photo Spectrum Applicable Picture

Introduction

1. The sensor uses a unique photographic diode and color correction filter, which is suitable for C.I.E. photo spectrum.

2. The CMOS correction factor of the sensor meets the standard.

3. Separate brightness sensor allows users to take appropriate position measurements.

4. Accurate and convenient reading display, wide range.

5. High-precision measurement.

6. Built-in low battery indicator.

7. The application of large-scale integrated circuits (LSI) improves reliability and durability.

8. Small and compact, light weight, easy to operate.

9. LCD display, clear reading.

Product display diagram

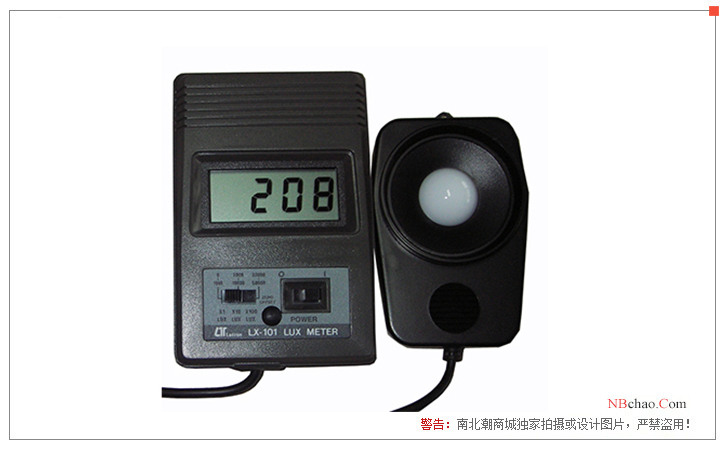

Kedian LX-101 white light meter photograph

FAQ
QCan this LX-101 white luminometer measure 0.02-2000lx?
A OK
