KCT-IC Digital Display Magnetic Particle Flaw Detector Can Store Thousands of Image Data

KCT-IC

Magnetic Particle Flaw Detector

KCT-IC digital display electromagnetic yoke (horseshoe) flaw Detector is a new generation of high-quality magnetic particle flaw detection equipment that uses color screen to display the working Voltage magnetization current, and is a new domestic (CN) and international characteristic of the company, which can store thousands of images and data. This product is a magnetic particle flaw Detector that uses a magnetic yoke to carry out AC magnetization of ferromagnetic workpieces, which can carry out local magnetization flaw detection on various parts, including local magnetization flaw detection on large parts, and can be used for additive and remanent magnetic flaw detection.

KCT-IC digital magnetic particle flaw Detector uses thyristor to form a non-contact switch, which has the characteristics of low noise, long life, small size, light weight, large lifting force, adjustable living joint, etc., especially suitable for flaw detection of flat welds, fillet welds, pressure vessels, pipelines and complex shape parts. The output of the instrument is low Voltage, which is more suitable for the occasion that high Voltage is not allowed to enter the equipment for flaw detection.

Technical specifications of KCT-IC digital magnetic particle flaw Detector

1. Input Voltage: AC 220V±10%V

2. Output Voltage: AC 36V

3. Output current: >10A

4. Lifting force: more than 5kg

5. Duty cycle: 50%

6. Electromagnetic yoke pole spacing: 0-250 horseshoe pole spacing: 0-160 (two kinds of probes are common, only one kind is randomly matched)

7. Flaw detection sensitivity: The A-type 1# specimen is clearly displayed

8. Host dimensions: 170×130×180mm

9. Weight: 5kg

KCT-IC digital magnetic particle flaw Detector equipment complete

1. 1 main machine

2. 1 electromagnetic yoke/horseshoe probe

3. 1 power cord

4. 1 cable

5. 5 5A fuse tubes

6. 5 lighting bulbs 5W/12V (with horseshoe type).

7. 1 copy of certificate warranty card

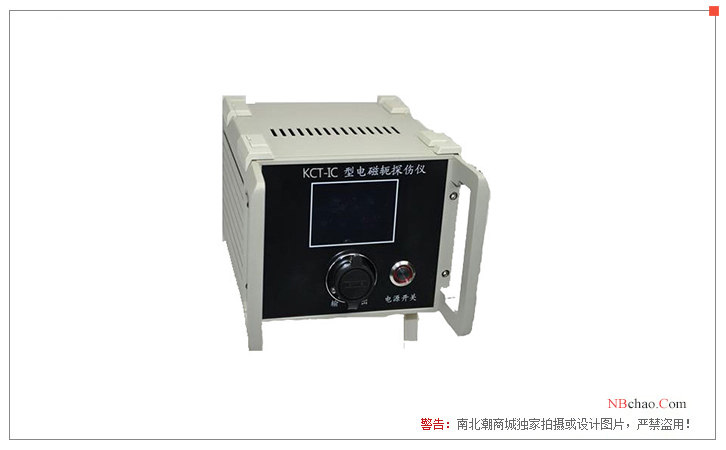

Product display diagram

Packing list： probe x1, battery pack x1, power cord x1, surround wire x1, fuse x5, instruction manual x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
