Defelsko PosiTector 6000 FN1 Coating Thickness Gauge for automatic substrate type and measurement

SE
Magnetic Induction and eddy Current thickness measurement principle, range 0~1500μm, accuracy +/- 1%, integrated FN probe, 2.8-inch color touch screen, screen image saving 100, can store 1000 readings.
$1266.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FN1 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FN1 Coating Thickness GaugeDetails

Defelsko PosiTector 6000 FN1 Coating Thickness GaugePacking list

SKU
NB000579
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
FN1 Probe (Universal)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
All metal substrates automatically convert measurements in magnetic and nonmagnetic environments
Defelsko calibrated standard
STDS1、STDA1
screen image saving
One hundred.
Protection level
IP65
Measurement speed
60 + readings per minute
PosiTector 6000 FN1
Coating Thickness Gauge
Magnetic Induction and eddy Current thickness measurement principle, range 0~1500μm, accuracy +/- 1%, integrated FN probe, 2.8-inch color touch screen, screen image saving 100, can store 1000 readings.
Defelsko PosiTector 6000 FN1 Coating Thickness Gauge for automatic substrate type and measurement Picture

Coating Thickness Gauge selector

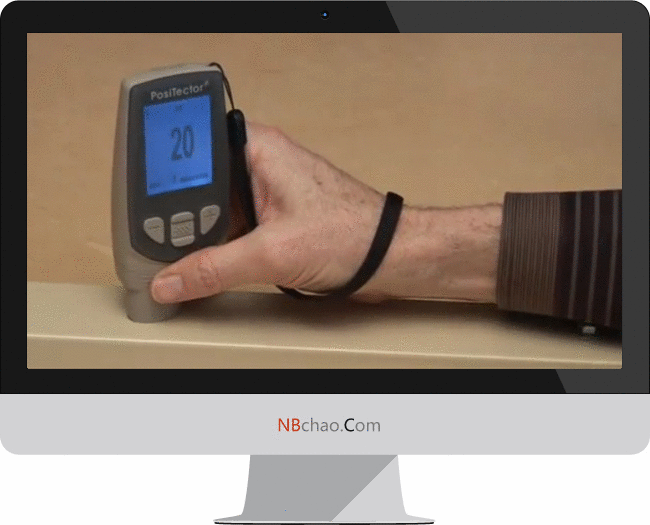

Defelsko PosiTector 6000 N1 涂层测厚仪操作视频

Coating Thickness Gauge PosiTector 6000 Introduction to FN1

The Defelsko PosiTector 6000 FN1 Coating Thickness Gauge is a built-in probe with dual measurement capabilities that automatically recognizes different test substrates and provides accurate and fast thickness measurements. The all-in-one PosiTector 6000 FN1 Coating Thickness Gauge is easy to carry and easy to perform one-handed measurements, and the probe is made of abrasion-resistant materials that are resistant to wear and tear even on rough surfaces. In addition, the PosiTector 6000 FN1 Coating Thickness Gauge eliminates the need for calibration adjustments for most tests, reducing the flow of procedures and making operation easier.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 FN1 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Protective benefits of the Defelsko PosiTector 6000 FN1 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FN1 Coating Thickness Gauge

Typical application area of the Defelsko PosiTector 6000 FN1 coating Thickness Gauge in the United States

Why choose the Defelsko PosiTector 6000 FN1 Coating Thickness Gauge in the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI need to measure the coating thickness on a metal surface, which instrument should I choose?
A Recommended Defelsko PosiTector 6000 FN1 Coating thickness gauge. It has built-in dual function Probe, can automatically identify magnetic or nonmagnetic metal substrate, measurement range 0-1500 μm, accuracy +/- 1%, suitable for metal surface coating inspection, simple operation, one hand can complete the measurement.
QIs this thickness gauge convenient to use in industrial sites?
A The PosiTector 6000 FN1 is a one-piece design with a weight of only 137g and an IP65 Protection Rating. The wear-resistant Probe is suitable for rough surfaces. It can measure more than 60 readings per minute. In most cases, it does not need to be calibrated. It is used directly and is suitable for on-site rapid inspection.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QCan Defelsko Coating thickness gauge Test film thickness on aluminum plate?
A Hello, yes, this is a magnetic eddy current dual-use film instrument.
QCan FN1 Coating thickness gauge be used to test Galvanized Film thickness?
A Hello, this is a dual-function type, which can be used to test the film thickness of the galvanized layer on magnetic metal and non-magnetic metal substrates.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QTo use Ali to test the coating thickness of the truck wheel, the film thickness within 1000μm, is this model okay?
A Hello, ok.
QMeasurement of steel structure-based Paint Film thickness, Paint Film thickness 20um, this is suitable?
A suitable
QDoes the Coating thickness gauge meet the specifications of ASTMB499?
A Model PosiTector 6000 FN1 Coating thickness gauge
QI bought this model of FN1 film thickness meter, but how to measure it and automatically shut down?
A You should have a measurement interval of more than 3 minutes, the instrument is set to no operation for more than 3 minutes, and the thickness gauge will automatically shut down to save power.
