Japan OSP-03/60 Applicator rod WFT 3μm length 60mm

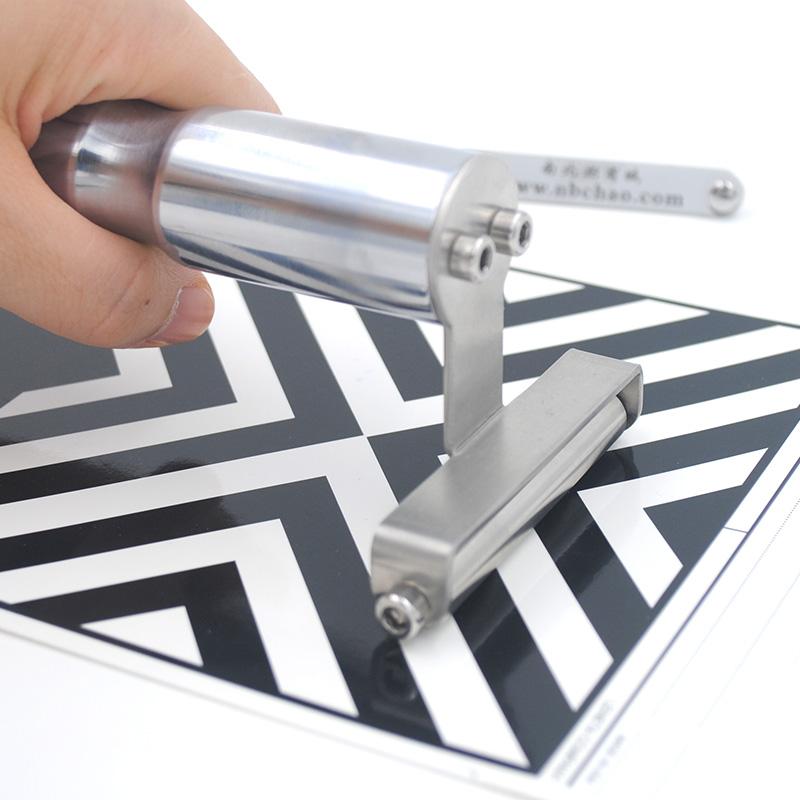

SEThe OSP-03/60 film has a thickness of 3μm and can be purchased with an L60 handle to provide Spreader stability. The application width of the OSP-03 Wire-wound drawdown Bar Applicator rod is 60mm.
$115.00/piece
PromotionLoading...
Coupon
Model：
OSP-03/60
Similar products
OSP OSP-03/60 coating rodSPEC
OSP OSP-03/60 coating rodDetails
OSP OSP-03/60 coating rodPacking list
- SKU
- NB000058
- Production process
- Formed
- WFT
- 3μm
- diameter
- 10mm
- Total length
- 60mm
- Application width
- 60mm
- Grip width
- 0
- material
- 304 stainless steel
OSP-03/60
coating rod
The OSP-03/60 film has a thickness of 3μm and can be purchased with an L60 handle to provide Spreader stability. The application width of the OSP-03 Wire-wound drawdown Bar Applicator rod is 60mm.
Japan's OSP coating rods have occupied part of the market in the coating industry with the unique advantages of developing extruded coating rods without wire winding with exquisite craftsmanship. The new type of film coating rod developed for the problem of easy clogging and impurity that is difficult to clean sometimes is very popular among industry users in Japan and South Korea, and is widely used. The thickness of the OSP-03 coating film is 3μm, and the coating width is divided into three types: 300mm, 250mm, and 60mm.
Optional
|
|
|
FAQ
QI want to apply a very small sample. Can the scraper be applied? By the way, does this have any viscosity requirements?
A
Hello, there are ultra-short scrapers with a length of 6cm. The scrapers have requirements for viscosity. If the viscosity is too high, you can consider choosing Film Applicator.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A
The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QHelp me find a Mayer Rods that meets the HG/T4914 standard.
A
This OSP-03/60 Mayer Rods is fine!
