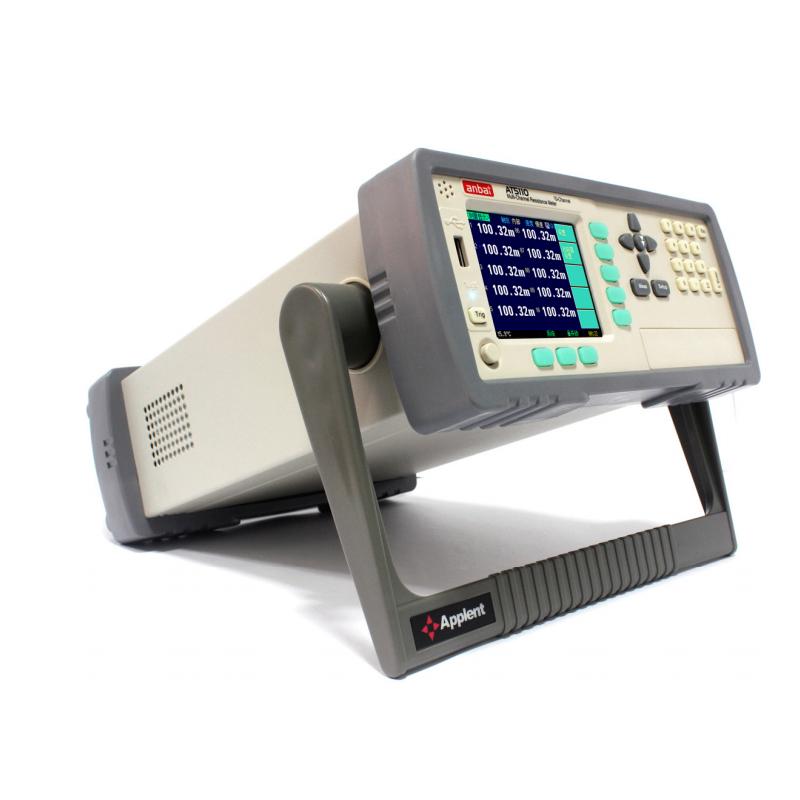

APPLENT AT5130 DC resistance Tester, scanning measurement 30 channels
AT5130
Applent AT5130 DC resistance TesterSPEC
Applent AT5130 DC resistance TesterDetails
Applent AT5130 DC resistance TesterPacking list
- SKU
- NB005822
- number of ways
- 30 channels (scanning measurement)
- Measurement parameter
- DC resistance
- Basic Precision
- 0.05%
- Measurement range
- 1μΩ~30KΩ
- signal source
- Current: < 1A
- range
- Automatic and manual
- Test speed
- 30ms channel
- Show results
- 30-Way direct reading display
- Maximum reading
- 30000
- correction
- Short circuit clearing in full scale
- comparator
- 10 channels set individually
- trigger method
- Internal triggering and remote triggering
- standard interface
- RS-232C interface (SCPI Instruction Set Architecture) HANDLER interface (PLC interface)
- temperature compensation
- Precision: 0.2 ℃ Temperature range: 0~80 ℃
- test side
- 4-End Shielding per channel (including 2 detection terminals and 2 drive terminals)
- other
- True color LCD display, can set the Upper/Lower limits of resistance, with temperature compensation function keypad lock
- power requirements
- Voltage: 198VAC~ 250VAC Frequency: 50Hz Power: Maximum 15VA
- Size and Weight
- Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) Weight: 4kg
Introduction
AMBER AT5130 DC Resistance TesterIt is a newly designed high-precision wide-range, multi-channel resistance Tester that can perform scanning tests on 30 resistors. It is controlled by a high-performance ARM microprocessor. The true color 3.5-inch LCD can display 30 resistors at the same time, and each channel can be set with a comparator individually, AT5130 can test the resistance of 1μΩ~30KΩ, and the maximum display is 30,000 numbers. At the same time, it also has a standard temperature compensation function, which can be adapted to different requirements of the test. Applied to automation equipment, GD/NG signals can be output using RS232C and HANDLER interfaces to improve production automation testing capabilities!
Performance characteristics
● 30-channel resistance scanning measurement
● True color LCD display
● The upper and lower limits of resistance can be set
● It has the function of temperature compensation
● Keypad lock
Display diagram
Application
● DC resistance measurement of multi-winding transformer
● Coil DC resistance measurement
● Multi-winding resistance measurement of motor
AMBE DC Resistance Tester Selection Table
