PUSHEN ADM-II Automatic scraper

SE
The PUSHEN ADM-II automatic scraper is an automatic Fineness Meter suitable for different sizes of Fineness gauge and drawdown blade. The load range of the ADM-II automatic scraper is 1.75-6 kg and the drawdown blade angle is 85 °.
$1314.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

Pushen ADM-II Automatic scraperSPEC

Pushen ADM-II Automatic scraperDetails

Pushen ADM-II Automatic scraperPacking list

SKU
NB005826
Net Weight
20kg
input Voltage
220V AC 50Hz
Minimum scraper load
1.75kg
Maximum scraper load
6kg
Scraper size
250*110mm
Scratching speed
10-100 mm/s
Scraper angle
85°
scraper
buy separately
ADM-II
Automatic scraper
PUSHEN ADM-II Automatic scraper Picture

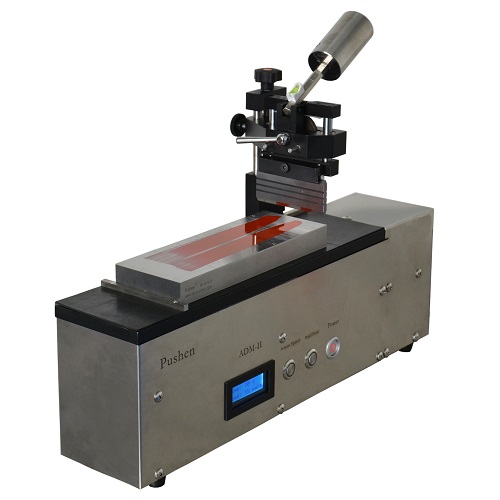

Pushhen ADM-II automatic scraper machine display

ADM-II Automatic Scraper Machine Instructions

Versatile, robust and precise.

The structure is strict, and it can be applied smoothly and evenly.

The main unit includes a universal base and scraper holder.

Each bench is designed to the highest flat rating to meet specific testing requirements.

Cooperate with various high-precision Fineness of Grind Gauges for fineness detection.

With adjustable speed and pressure, it greatly improves the accuracy of various tests and avoids the errors of different personnel tests.

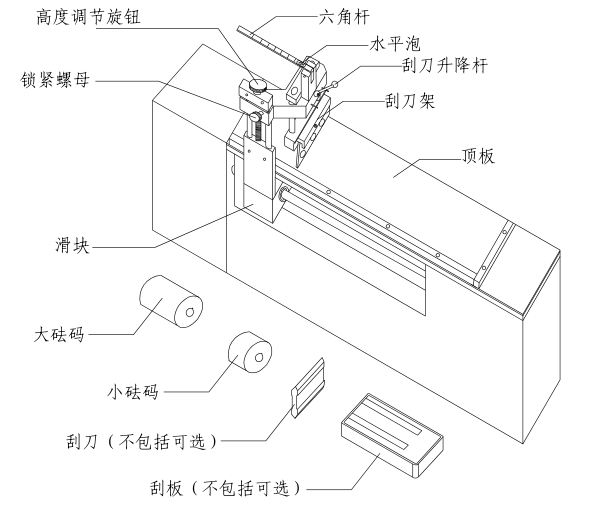

Pushhen ADM-II automatic scraper machine structure diagram

FAQ
QAnd what is the accuracy of the drawdown blade pressure?
A Pressure is controlled by load weight, 1.75-6 kg
QHello, what is the accuracy of the translation speed of the drawdown blade?
A Scratching speed: 10-100 mm/s
QIs it complicated to disassemble the scraper and drawdown blade?
A The cutter head is magnetic, easy to disassemble, and the cutter head is magnetic.
QThis one can automatically scrape and the data can be automatically read?
A This is not an automatic reading, but an automatic scratching. There is no automatic reading.
QDoes ADM-II Automatic Scraper have requirements for matching scraper Fineness Meter size?
A Hello, the size of the scraper can be within the range of 250x110mm.
QIs the ADM-II automatic scraper equipped with a scraper Fineness Meter?
A Hello, no.
QDo you have the automatic scraper required by the ASTMD1210-05 standard?
A This ADM-II automatic scraper will do.
