PUSHEN QT-I Drying Time Recorder

PUSHEN QT-I paint film Drying Time Recorder is used to test the drying time of paints, coatings and other surface coatings. The diameter of the scribing spherical surface is 8mm, the power of the QT-I paint film Drying Time Recorder motor is 4w, and the scribing stroke is 80mm.
Model：
Certificate
Contact
Details SPEC

Pushen QT-I Drying Time RecorderSPEC

Pushen QT-I Drying Time RecorderDetails

Pushen QT-I Drying Time RecorderPacking list

SKU
NB005827
Number of strokes
6-Pin
Scribing needle specification
Φ8mm
Load Weight
12g
itinerary
Φ50mm
trajectory period
0.5/1/2/6/12/24h
Motor Power
4W
input Voltage
100-240V AC 50/60Hz
Dimension
140*140*160mm
Machine Weight
4kg
QT-I
Drying Time Recorder

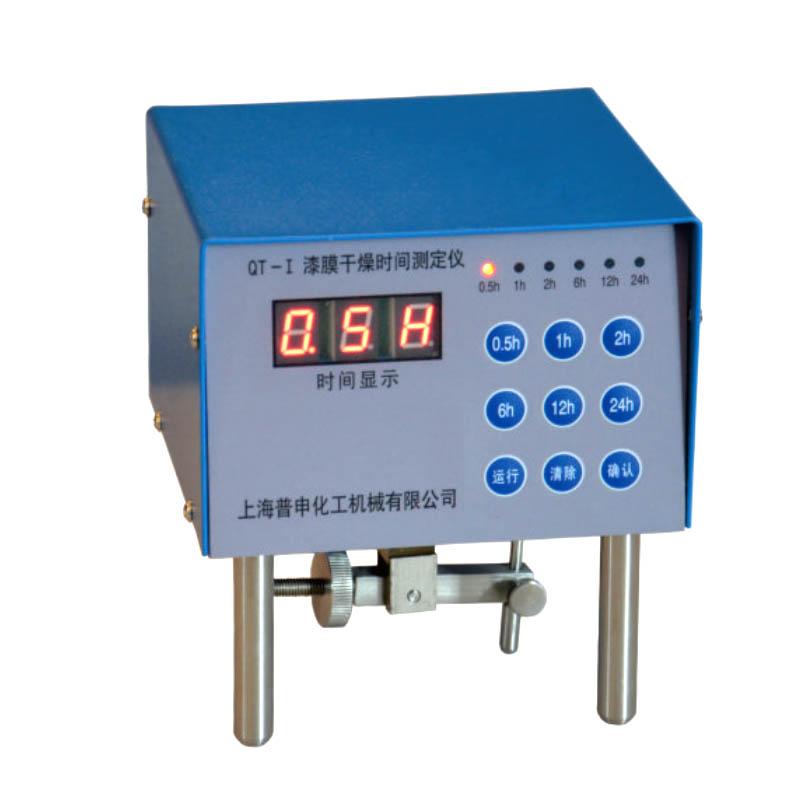

PUSHEN QT-I Drying Time Recorder Picture

QT-I Paint Film Drying Time Tester

It is suitable for measuring the drying time of paints, coatings and other surface coatings to ensure the surface quality of paints, coatings and coatings.

The high-precision stepper motor drives the scribing rod of the spherical contact, and draws a circumference with a diameter of 50mm at a certain speed under a load of 12g.

According to the position where the trajectory disappears, the drying time of the paint film is obtained after covering it with a drying time chart.

Six time settings: 0.5, 1, 2, 6, 12, 24h

The drying time Tester uses the following formula to calculate the drying time:

Distance = Speed × Time

Reference standards

ASTM D5895 Standard Test Method for Measuring Film Generation Time During Drying or Vulcanization with Organic Coatings for Mechanical Recorders.

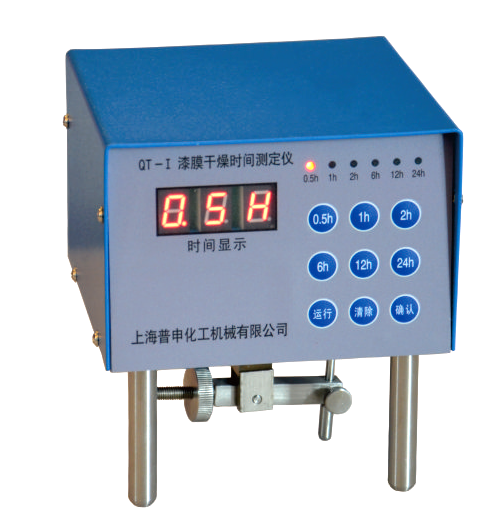

Pushen QT-I paint film drying time Tester display diagram

FAQ
QDo you have the film Drying time Recorder required by ASTMD 5895?
A This QT-I film Drying time Recorder.
