PUSHEN STM-IVB Stormer Viscometer KU/G/CP

SE
With KU value, g (g), CP (centipoise) three kinds of Measurement unit, the range of 40.2~ 141.0KU, equipped with printing interface, built-in overload protection program.
$596.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

Pushen STM-IVB Stormer ViscometerSPEC

Pushen STM-IVB Stormer ViscometerDetails

Pushen STM-IVB Stormer ViscometerPacking list

SKU
NB005833
Power
220V AC 50Hz
Measuring range
40.2 ~ 141.0KU, 32 ~ 1099g, 27 ~ 5250cP
resolution
0.1KU / 1g / 5cP
Accuracy
±1.5%
Repeatability
±1.5%F.S
Overall Dimensions
180*210*470mm
Shipment Weight
10kg
Applicable standard
GB/T 9269、ASTM D 562
Unit display
KU / g / cP
Interface
With print interface
Sample temperature
23℃±0.2℃
Lifting method
Leverage lift
STM-IVB
Stormer Viscometer
With KU value, g (g), CP (centipoise) three kinds of Measurement unit, the range of 40.2~ 141.0KU, equipped with printing interface, built-in overload protection program.

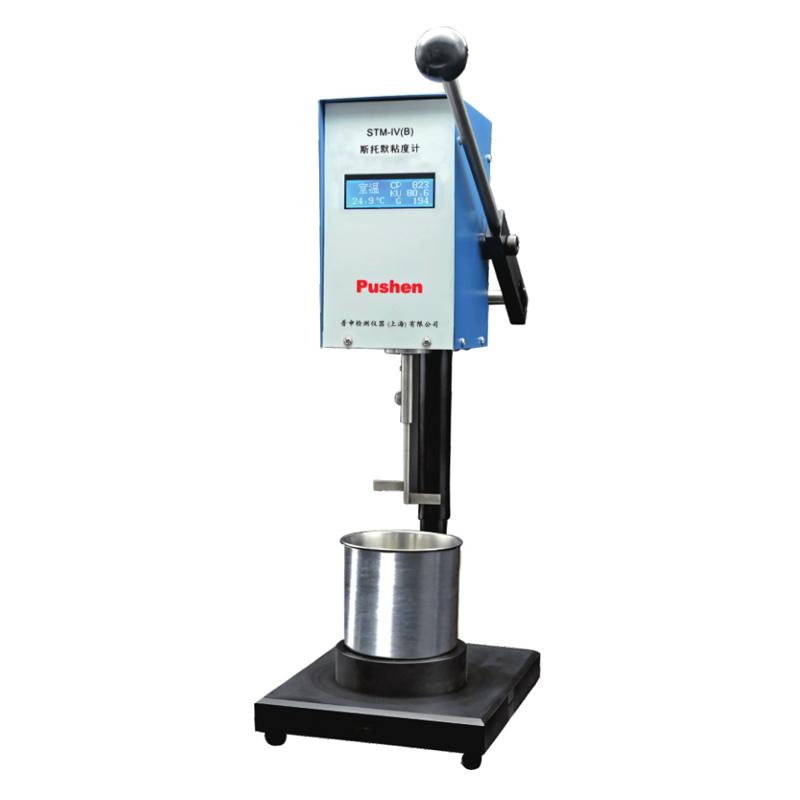

PUSHEN STM-IVB Stormer Viscometer KU/G/CP Picture

The Stormer Viscometer STM-IV is suitable for measuring paint and paint related viscosity values. Press the handle to start measuring automatically, can test Krebs unit and gram unit. The test result can be locked during the test; the built-in overload protection program will automatically stop when the range is exceeded. Equipped with a printing interface, the measurement results can be output to the computer.

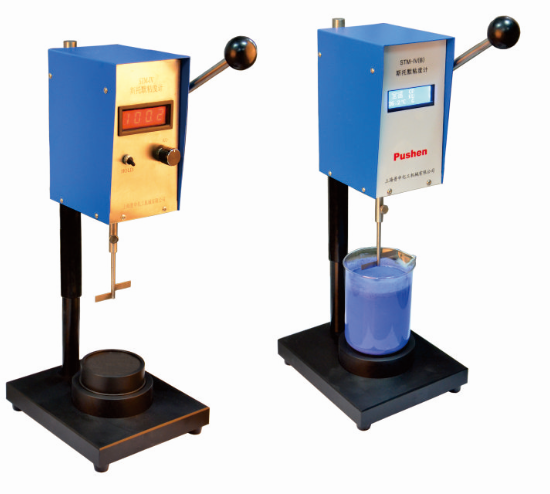

Compared with STM-IV, STM-IV(B) has increased the measurement unit output of CP (centipoise).

Features

1. Easy to use, no need for weights, which simplifies the testing procedure.

2. The LED display can display KU value, g (gram), CP (centipoise).

3. Use the HOLD key to lock the test result.

4. Compared with the old Stormer viscometer, the measurement accuracy and reproducibility are higher.

5. Built-in overload protection program, over-range automatic shutdown.

6. Equipped with a printing interface, which can output the measurement results to the computer.

Standards

GB/T 9269-2009 Method for Determination of Coating Viscosity--Stormer Viscometer

ASTM D 562

FAQ
QI want to measure the viscosity of paint, which Stormer Viscometer should I choose?
A STM-IVB Stormer Viscometer can be used for coating viscosity testing, in line with national and ASTM standards, simple operation, press the handle to automatically measure, and can also display KU, gram and centipoise units, ideal for quality control in the coatings industry.
QWhat more features does STM-IVB have than STM-IV? Which one is better to choose?
A STM-IVB increases the output of cP (centipoise) units. If your application requires a wider range of viscosity units, such as detailed analysis of fluids, STM-IVB is more suitable; it retains all basic functions such as automatic measurement and result locking, and is more cost-effective.
QCan Stormer Viscometer KU/G/CP measure sludge? The moisture content of mud is about 80%?
A Measurement range can be measured, beyond the test can not be measured, in addition, the cement for a long time, easy to dry, may test the value will be affected
QCan I test real stone paint?
A Viscosity values in the range of 27-5250 cP can be measured
QHello, can STM-IVB be connected to a computer? Is there a printing function?
A Yes, you can only link to the computer to support the printing function.
QI bought Pushon's Stormer Viscometer, why does it automatically shut down?
A Hello, this STM-IVB Stormer Viscometer has an automatic shutdown function for overrange. Check if it is overrange.
QWhat is the difference between STM-IV and STM-IVB?
A Hello, the model IV shows KU and g values; while the IVB shows KU G CP, one more centipoise value.
QWhat is the difference between STM-IVB and STM-IV Stormer viscosity meters?
A Hello, STM-IVB has increased the display of cp centipoise viscosity units compared to STM-IV, and the Miscellaneous parameters are exactly the same.
QSTM-IVB Stormer Viscometer comes standard with a print interface, right?
A Hello, yes.
QCan the PUSHEN STM-IVB Stormer Viscometer meet the ASTMD 562 standard?
A Applicable, please consult the customer service of the mall for details about the ASTMD 562 standard.
