PUSHEN TCJ-II resilience impact test instrument 100cm/1000g ISO/ASTM

SE
PUSHEN PS2701 TCJ-II resilience impact tester, according to ISO and ASTM standards, this resilience impact tester is used for impact testing of various types of coatings on metal substrates.
$660.90/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

Pushen TCJ-II Resilience Impact DeviceSPEC

Pushen TCJ-II Resilience Impact DeviceDetails

Pushen TCJ-II Resilience Impact DevicePacking list

SKU
NB005843
Impact height
0~100cm
Scaling
1cm
ISO punch weight
1000g
Punch diameter
F20mm
ISO additional punch weight
1000G, can be linked with ISO punch
die base aperture
F27mm
ASTM punch weight
2lbs
Punch diameter
F15.9mm
ASTM additional punch weight
2lbs
die base aperture
F17mm
Depth Control Loop
1/2/4/5mm
Overall dimensions
300*300*1400mm
Shipment weight
30kg
TCJ-II
Resilience Impact Device

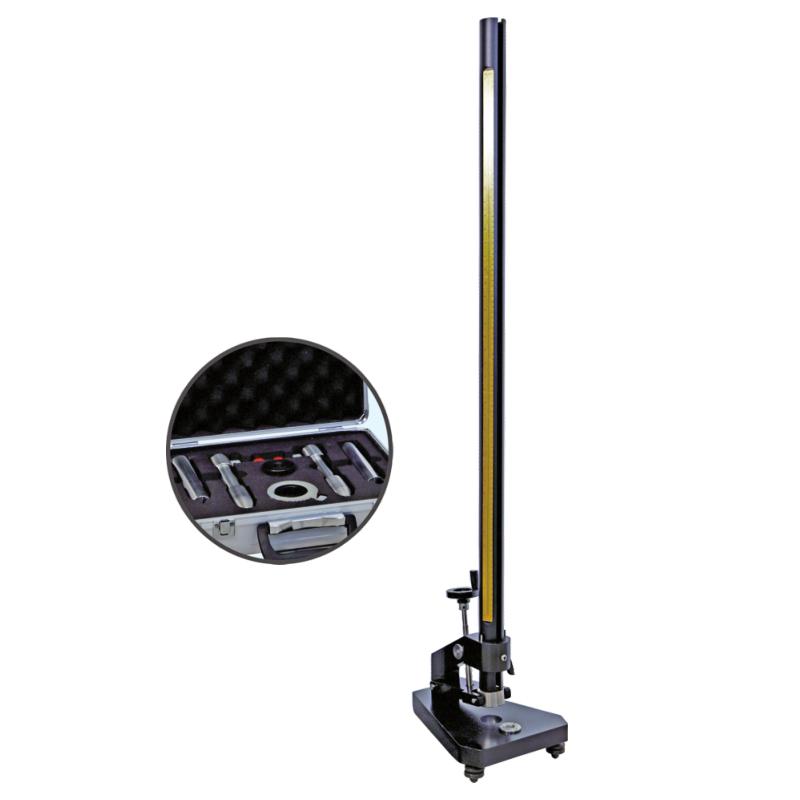

PUSHEN TCJ-II resilience impact test instrument 100cm/1000g ISO/ASTM Picture

TCJ-II Elastic Impact Tester

For impact testing of various types of coatings on metal substrates.

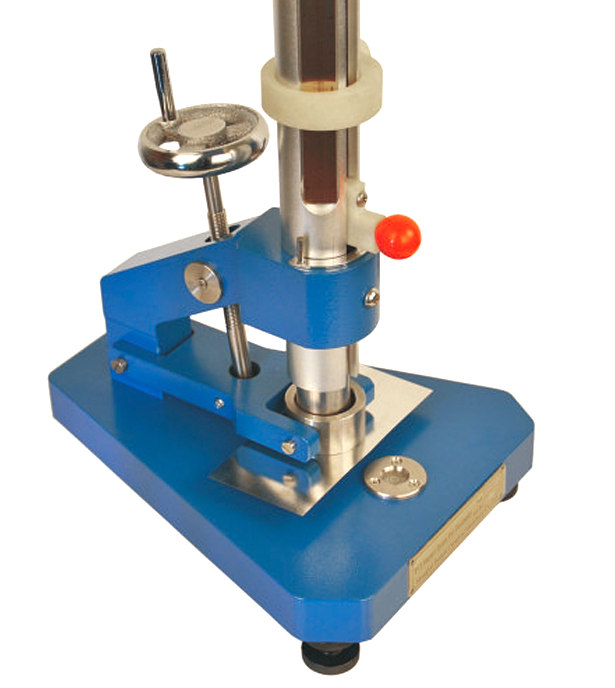

According to ISO and ASTM standards, use the clamping device to clamp the test panel on the mold base, so that the surface of the coating outside the test area will be free during the test.

Not affected by rapid deformation due to falling weights.

- Anodized conduit marked with imperial and metric graduations

——A pipe with a slit in the body and a guide tube in the middle that can guide the cylindrical punch to fall

——A ring that can adjust the rise and reset of the falling punch

Steps

Place the sample under the punch and secure

Raise the punch to a preset height and drop it

Observe sample damage visually or with a magnifying glass

Adjust the drop weight and height of the impact tester to get the exact failure point or set the pass/fail scale

The calculation formula of impact strength is as follows:

Drop height × punch weight = impact force

Standards

ISO 6272 Paints and varnishes Rapid deformation (impact resistance) test

ASTM D 2794 Test Method for Resistance of Organic Coatings to Rapid Deformation (Impact) Actions

FAQ
QMay I ask how big a test board this testing device needs to use, and are there any restrictions?
A There is no big restriction, as long as the testing device can be stuck in this position, because the Impact point is only one place. Generally, the size of the test board 150 * 70mm can be used.
Q TCJ-II resilience impact test instrument, this testing device needs to use a large test board, is there any limit?
A There is no big restriction, as long as the position of the Impact head can be stuck, because the Impact point is only one place.
QI would also like to ask, that is, the 1-meter Impact instrument comes standard with 20mm steel balls and 27mm mold seats. Do you want to buy another set of 8mm steel balls and 15mm mold seats?
A The resilience Impact device comes standard with two steel balls. Wow, the 20mm one and the 15.9mm one. The 8mm one is on the paint film Impact device, which does not match the resilience Impact device.
QDoes this TCJ-II coated impactor meet the ISO 6272 standard?
A Hello, satisfied.
QWhat is the duct height of the Purson TCJ-II resilience impactor?
A Hello, the duct height of this resilience impactor is 1.265 meters.
QIs this TCJ-II testing the impact resistance of the film?
A Hello, yes, it can test the impact resistance of paint varnish and other films. It is a resilience impact test instrument.
QWhat is the punch load of the Purson TCJ-II resilience impactor?
A Hello, the punch weight is 1000g.
QDoes the Purdue resilience impactor have requirements for the test plate Film thickness?
A Hello, yes, the film thickness of the test plate tested by the TCJ-II resilience impactor should be at least 0.25mm, and it is required to be flat and free of deformation.
QDoes the PUSHEN resilience Impact device meet the standard GB/T20624.2?
A The TCJ-II resilience Impact can be referred to
QDoes it meet the American standard ASTM D2794 coating Impact Tester?
A This one is it.
