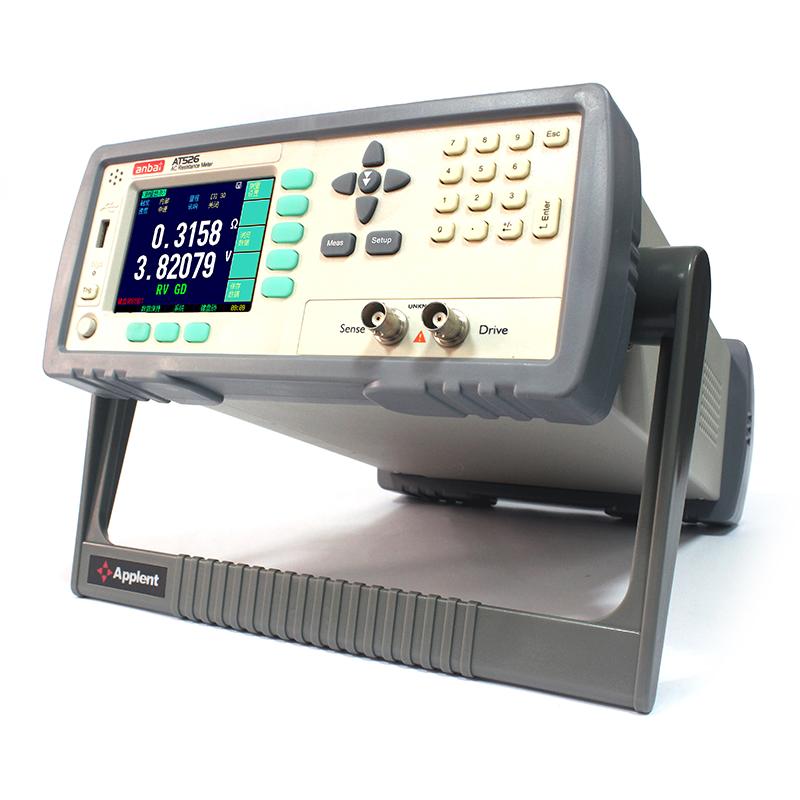

APPLENT AT526B AC Resistance Tester, Economical, Battery Internal Resistance Test
AT526B
Applent AT526B AC resistance TesterSPEC
Applent AT526B AC resistance TesterDetails

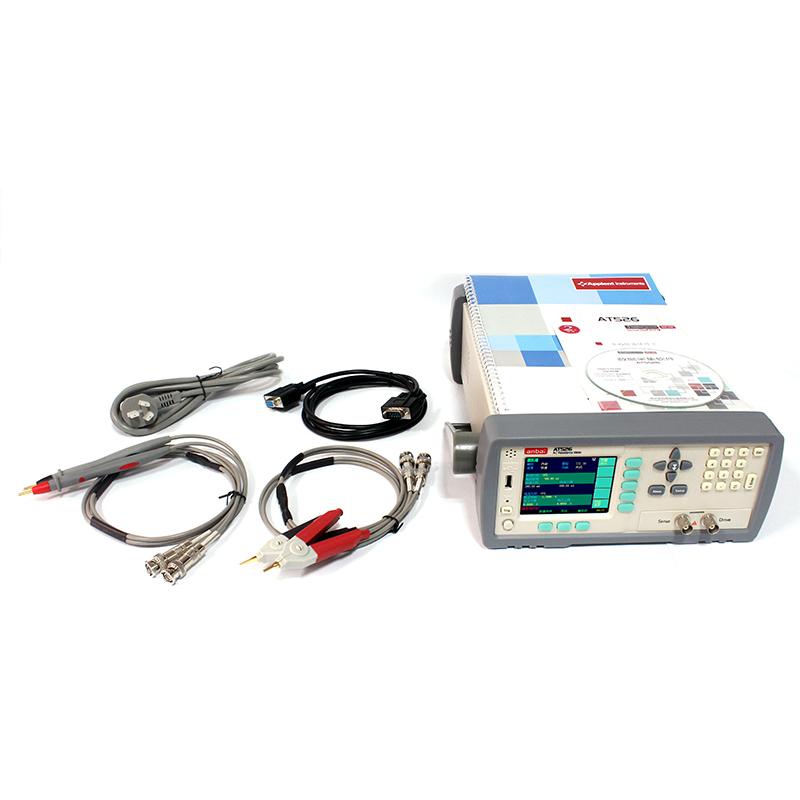

Applent AT526B AC resistance TesterPacking list
- SKU
- NB005848
- Measurement parameter
- AC resistance, DC Voltage
- Basic Precision
- Resistance: 0.001mΩ~ 33.00Ω Voltage: 0.0001V~ 60.000VDC
- signal source
- AC 1kHz
- range
- Four-range automatic and manual
- Test speed
- 30 times/second, 10 times/second, 1 time/second
- Show results
- Direct reading, sorting results
- Maximum reading
- Resistance: 33,000 Voltage: 60,000
- correction
- Short circuit clearing in full scale
- comparator
- RHI/RNG/RLO output VHI/VNG/VLO output, absolute tolerance +/- TOL sorting, percentage tolerance TOL sorting, sequential comparison sorting
- trigger method
- Internal trigger, manual trigger, external trigger and remote trigger

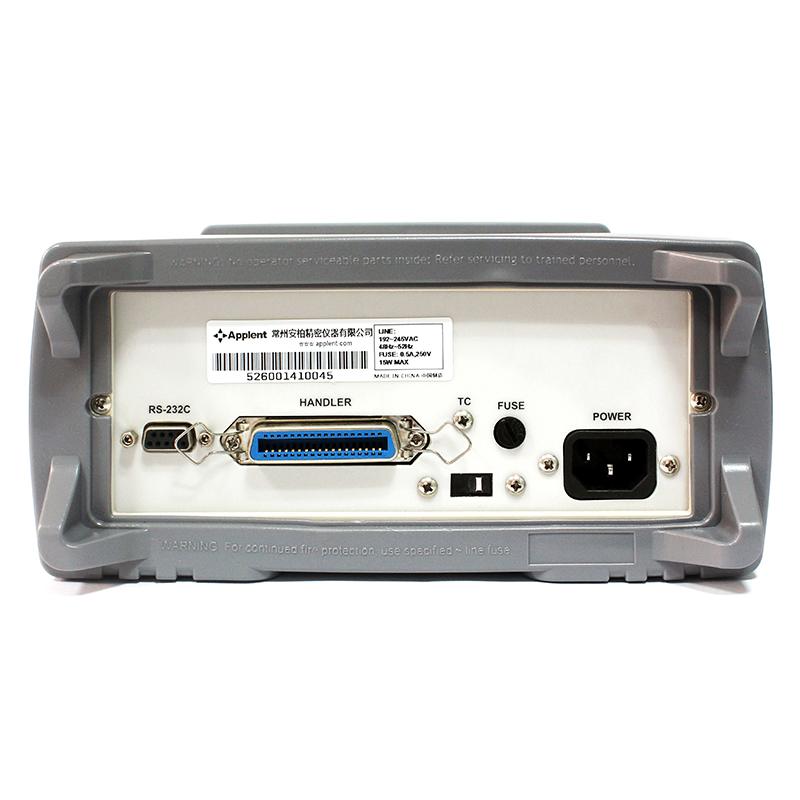

- standard interface
- RS-232C interface USB interface Handler interface (PLC interface) RS-232C interface USB interface
- other
- True color TFT-LCD display, keylock and data retention function, internal flash memory and U disk data recording
- power requirements
- Voltage: 110VAC/240VAC Frequency: 50Hz Power: Maximum 15VA
- size
- External Dimensions (mm): 264 (W) x107 (H) x350 (D)
- Weight
- 4kg
Introduction
AMPLUS AT526B AC Resistance Tester is a newly designed high-precision, high-stability and economical battery Tester. It is controlled by a high-performance ARM microprocessor. True color 3.5-inch LCD display in Chinese and English, more convenient to operate. It is an upgraded product of AT520. It is a high-performance, intelligent instrument widely used in contact resistance, battery Voltage and battery internal resistance testing. New and improved sampling circuitry that can measure any kind of battery. The instrument has a professional sorting function, which is suitable for the rapid determination of battery Voltage and internal resistance!
Performance characteristics
●Vector method is used to measure, and a variety of parameters are measured at the same time.
●Comparator (sorting) function
●Test line damage detection.
●Compatible with SCPI instruction set.
● New and improved sampling circuitry
apply
●Tests of various contact resistances
●Alkaline batteries, lead-acid batteries, and lithium batteries deterioration measurement and life evaluation
●UPS on-line detection
●Battery factory inspection
●Supercapacitor equivalent resistance (ESR) measurement
