APPLENT AT521 AC Resistance Tester, Simplified, Battery Internal Resistance Test

APPLENT AT521 AC resistance Tester is a compact intelligent battery Tester, AT521 measurement resistance range of 10μΩ~ 32Ω, Voltage range of 1mV~ 30VDC, suitable for battery Manufacturers inspection of batteries.
Model：
Certificate
Contact
Details SPEC CAT

Applent AT521 AC resistance TesterSPEC

Applent AT521 AC resistance TesterDetails

Applent AT521 AC resistance TesterPacking list

SKU
NB005849
Measurement parameter
AC resistance, DC Voltage
Basic Precision
Resistance: 0.5% Voltage: 0.1%
Measurement range
Resistance: 10uΩ~ 32uΩ Voltage: 1mV~ 30VDC
signal source
AC 1kHz, open circuit Voltage < 20mV, test current: < 10mA
range
Four-range automatic or manual
Test speed
1 time/second
Show results
Direct reading value, Voltage and resistance are displayed simultaneously
Maximum reading
Resistance: 3,200 (32/3) Voltage: 3,000
correction
Short circuit clearing in full scale
comparator
No comparator
trigger method
internal trigger
standard interface
No interface
other
Test line damage detection, four-color vacuum fluorescent screen VFD
power requirements
Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA
size
External Dimensions (mm): 264 (W) x107 (H) x350 (D)
Weight
4kg
AT521
AC resistance Tester
APPLENT AT521 AC Resistance Tester, Simplified, Battery Internal Resistance Test Picture

Introduction to the AT521 AC Resistance Tester

AMPLUS AT521 AC Resistance Tester is a compact smart battery internal resistance Tester. The internal resistance of the battery and the battery Voltage can be accurately measured. The resistance measurement range is 10μΩ~32Ω and the Voltage measurement range is 1mV~30VDC, which can fully meet the inspection of the battery manufacturer and meet the test requirements of GB5095/GJB1217. AT521 is also an economical and practical AC milliohmmeter, which can meet your AC resistance test of 10μΩ~32Ω.

Performance characteristics

● Dual display: battery internal resistance and Voltage are displayed at the same time

● 1kHz AC low current test

● Four-end test

● Alarm sounds

Display diagram

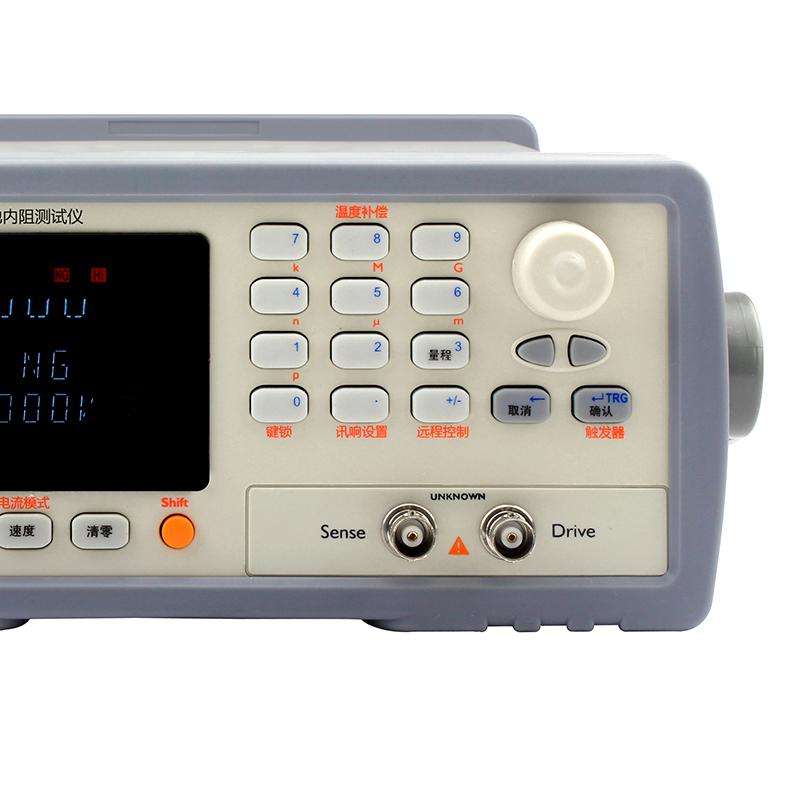

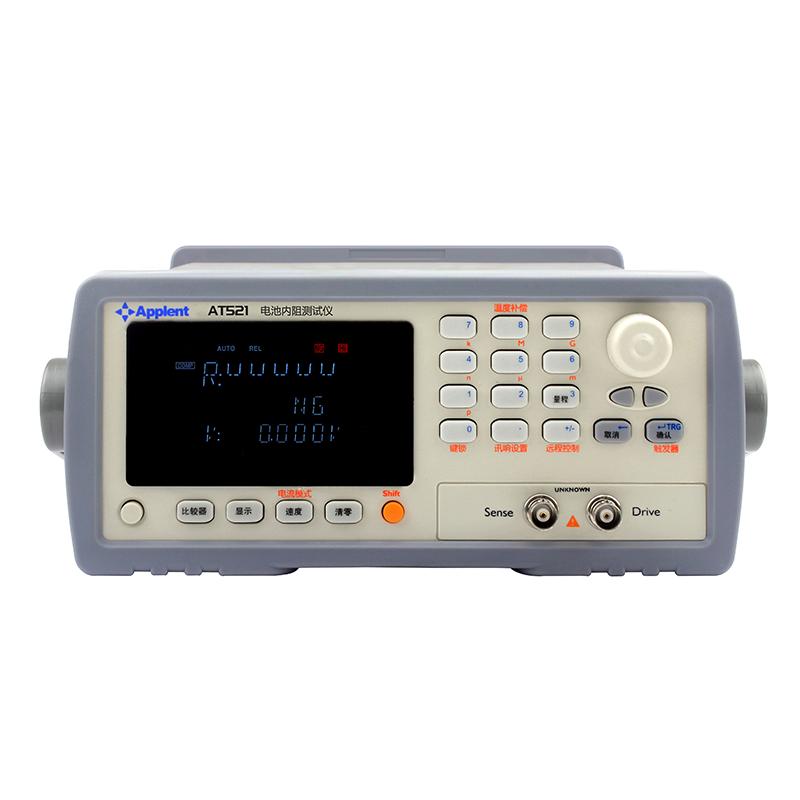

Front view of the AMG AT521 AC Resistance Tester

Image of the AMG AT521 AC Resistance Tester

Side view of the AMG AT521 AC Resistance Tester

Left side of the AMG AT521 AC Resistance Tester

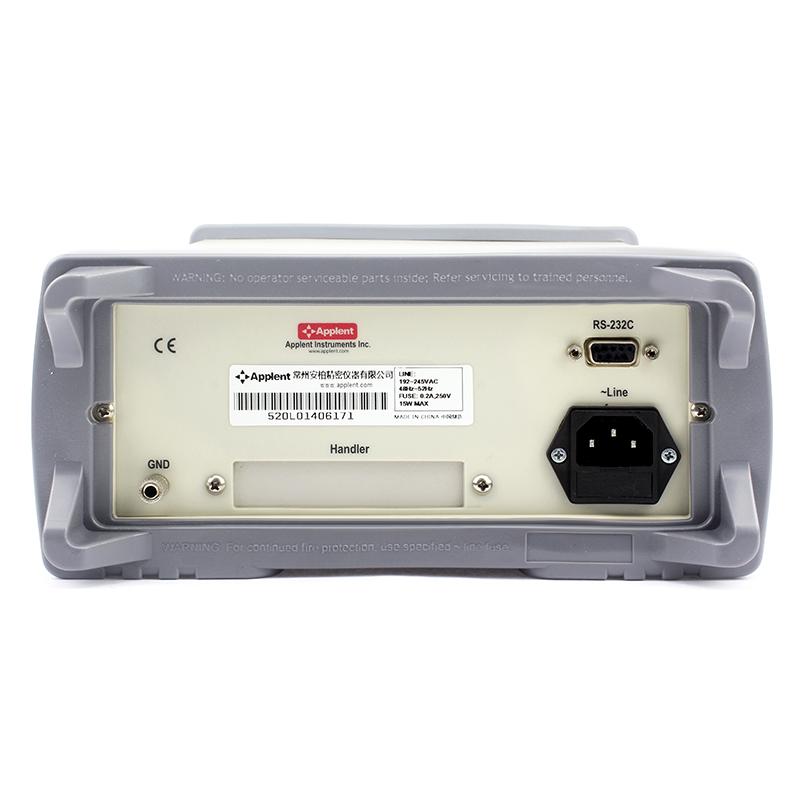

Rear view of the AMG AT521 AC Resistance Tester

Amber AT521 AC Resistance Tester Accessories Diagram

App collarregion

● It is used for pipeline testing and streamlined configuration

● The low-resistance characteristics of electromechanical components are characterized under the condition of low current

● Test of various contact resistances

● Determination of deterioration and life assessment of alkaline batteries and lead-acid batteries

● UPS online detection

● Battery factory inspection

● Supercapacitor equivalent resistance (ESR) measurement

Amber Battery Tester Selection Table

Amber Battery Tester Selection Table
