APPLENT AT525D battery internal resistance Tester, Voltage range 0.0001V~ 200.00V

APPLENT AT525D battery internal resistance Tester can measure AC resistance and DC Voltage at the same time. Unlike the AT525 model, the measurement Voltage range of the AT525D battery internal resistance Tester is 0.0001V~ 200.00V.
Model：
Certificate
Contact
Details SPEC

Applent AT525D AC resistance TesterSPEC

Applent AT525D AC resistance TesterDetails

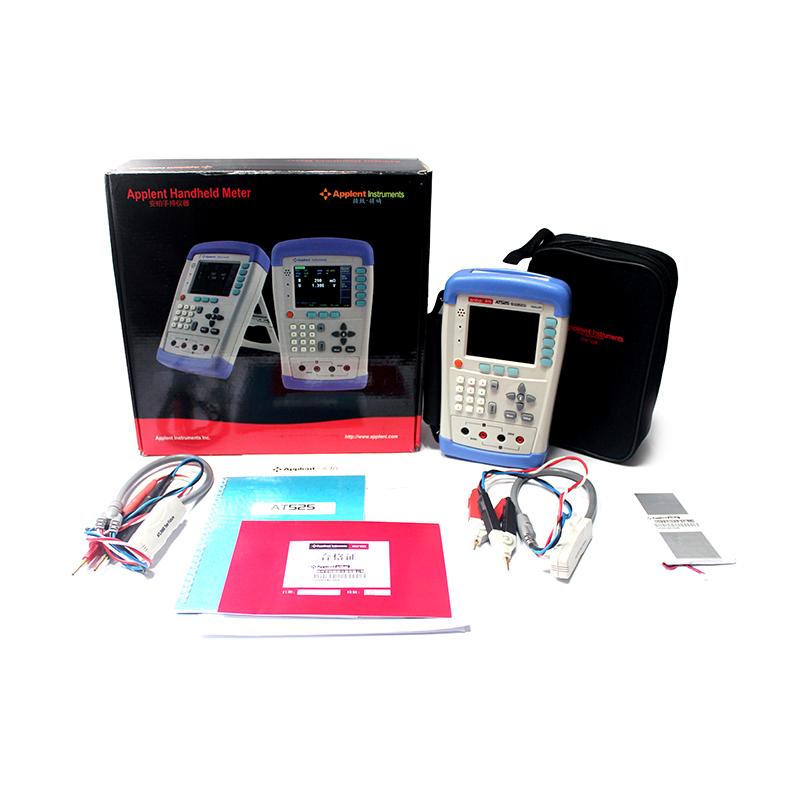

Applent AT525D AC resistance TesterPacking list

SKU
NB005851
Measurement parameter
AC resistance, DC Voltage
Basic Precision
Resistance: 0.5% +/- 5dgt Voltage: 0.05% +/- 5dgt
Measurement range
Resistance: 0.001mΩ~ 3.3000Ω Voltage: 0.0001V~ 200.00V
signal source
AC: 1kHz open circuit Voltage: < 30mV (reduce damage to the battery under test) Test current: < 15mA
range
Four-scale automatic, manual, and nominal testing
Test speed
1 time/second
Show results
Absolute deviation (ABS) comparison, relative deviation (PER) and sequential (SEQ) comparison
Maximum reading
Resistance: 3300 number, Voltage: 60,000 number
Maximum resolution
Resistance: 0.01mΩ Voltage: 1mV
correction
Short circuit clearing in full scale
comparator
The Voltage is compared separately, the resistance is compared separately, and the Voltage-resistance combination is compared. The GD/NG sorting results show that the signal
trigger method
Internal trigger, manual trigger, remote trigger
test side
4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals
other
3.5-Inch true color 16M color TFT-LCD display; keyboard lock, data retention function; compatible with SCPI Instruction Set Architecture; Chinese and English switching; backlight adjustment; automatic shutdown; 500 sets of measurement data saved with one click
Power adapter
Input: 100-240V~ 50/60Hz 0.35A Output: 9V 1A DC
Battery parameters
8.4V, 2200mAh lithium battery
Charging time
Charging time: 300Min max.
Battery operating life
≥ 8 hours
size
External Dimensions (mm): 130.23 (W) x 210.76 (H) x 37.88 (D)
Weight
650g
AT525D
AC resistance Tester
APPLENT AT525D battery internal resistance Tester, Voltage range 0.0001V~ 200.00V Picture

Introduction

AT525D battery internal resistance Tester is an instrument that can measure battery internal resistance and Voltage online, using high-performance 32-bit ARM microprocessor control. Fully automatic real-time detection of micro handheld instrument, built-in large-capacity lithium battery to achieve ultra-long standby.

AT525D has both the superior performance of the portable and desktop instrument of the handheld meter, the main performance is compatible with the Hioki 3554, the instrument can test the resistance of 0.01mΩ~3.3Ω, the Voltage of 0~60V DC, the data display is stable, the maximum resistance is 3300 display digits, and the Voltage is up to 6000 display digits. The test speed is 10 times/second, and the accuracy of 0.5% can still be guaranteed, and the reading runout is controlled below 3 characters.

The resistance measurement of the instrument adopts the vector test principle, and the Voltage measurement adopts the differential test principle, so that the open circuit Voltage can be accurately measured. In addition, the instrument has a professional sorting function, built-in sorting record, GD/NG sorting result display sorting signal setting, and is applied to UPS online battery measurement automatic sorting system to complete the automatic assembly line test.

The AT525D is equipped with 500 sets of data storage, which can save measurement data with one click, saving you time in recording data. It can also be equipped with a USB interface for remote control and data acquisition and analysis, making it very suitable for assembly line inspection of all kinds of batteries.

Performance characteristics

● Fresh and dazzling two-color cast plastic shell

● Battery and external power supply power supply

● Four-end test

● Switch between Chinese and English

● 500 sets of measurement data are saved

● Backlight adjustment

● Auto shutdown setting

● Maximum power consumption≤5W

● Long continuous working time≥8h

Structural diagram

Functional structure diagram of AMPLUS AT525D battery internal resistance Tester

Application

● Measure all kinds of low-Voltage batteries, accumulators, lithium batteries, mobile phone batteries

● Contact resistance, internal resistance of the battery

● Battery Voltage

● UPS online measurement

Amber Battery Tester Selection Table

Amber Battery Tester Selection Table
