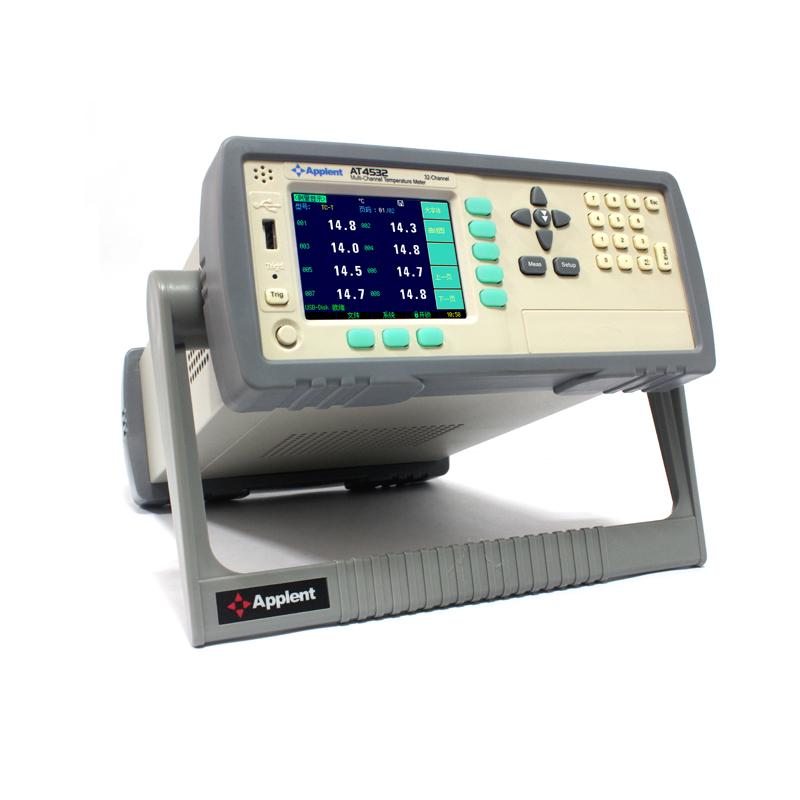

APPLENT AT4532 Multi-channel temperature Tester 32 Number of channels Compatible with multiple temperature sensors
AT4532
Applent AT4532 Multichannel temperature TesterSPEC
Applent AT4532 Multichannel temperature TesterDetails
Applent AT4532 Multichannel temperature TesterPacking list
- SKU
- NB005864
- indexing mark
- Thermocouple: J/K/T/E/S/N/B/R type, thermal resistance PT100, CU50
- Basic Precision
- 0.2 ℃ +/- 2 characters (excluding Thermocouple)
- Temperature Measurement Range
- -200~1300℃
- resolution
- 0.1℃
- Number of channels
- 32 channels
- Sampling rate
- Fast: 100ms Medium speed: 500ms Slow speed: 1s
- correction
- error correction per channel
- comparator
- Up and down super alarm, set up and down super value separately for each channel
- Interface
- RS232C interface, U disk interface
- Standard software
- ATS45 data collection software
- cold junction compensation
- Precision: 0.5 ℃
- other
- TFT-LCD true color liquid crystal display, even detection function
- Power Supply
- Voltage: 85VAC~ 260VAC Frequency: 50Hz/60Hz Power: 10VA
- Dimension
- 216*88*300
- Weight
- 3kg
Introduction to the AT4532 Multiplex Temperature Tester
AMBER AT4532 multi-channel temperature Tester is an ARM microprocessor-controlled multi-channel temperature Tester, which samples multi-channel parallel testing, and simultaneously collects, alarms, and communicates 32-channel temperature transmission. Compatible with a variety of temperature sensors, fast response, stable data, and has the function of broken detection.
The sampling professional test principle makes the temperature test resolution to 0.1°C.
Similarly, the AT4532 has a wide range of adaptability and supports thermocouples type K/N/E/J/T/R/S/B. The test range is from -200°C~1800°C.
AT4532 adopts AMMG instrument operating system ATOS™v4 with independent property rights, which makes the operation of the test instrument simpler and more convenient, and relies on ATOS™v4 at the same time, the instrument can be well compatible with large-capacity memory and has strong PC communication capabilities, the instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication through PC software can easily realize data acquisition, analysis and printing.
The AT4532 is housed in a rugged, vibration-resistant enclosure that can operate in harsh environments. Fully isolated digital and analog signals, AT4532 comes standard with a USB flash drive interface to support real-time data storage.
Performance characteristics
● TFT true color LCD display, three display fonts
● Fast, medium and slow three-level scanning speed
● Cold junction compensation
● Standard USB disk interface, supporting large-capacity storage devices
● Standard RS232C interface and USB interface
● Automatic detection of broken couples
● Designated channel scanning
● ATS45 data acquisition software is standard
Application
● It is suitable for multi-point temperature testing by manufacturers and quality inspection departments of home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LEDs and other industries

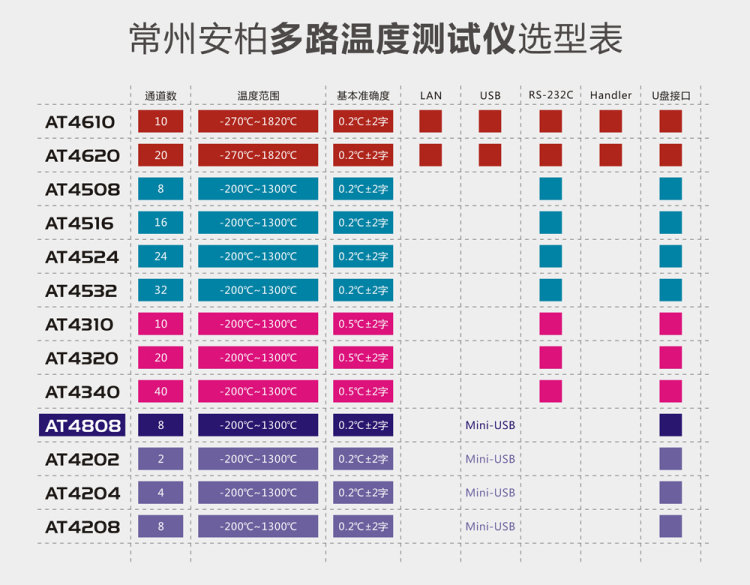

Amber Multi-way Temperature Tester Selection Table
