APPLENT ATN4508 multi-channel temperature Tester with cold junction compensation
Applent ATN4508 Multichannel temperature TesterSPEC
Applent ATN4508 Multichannel temperature TesterDetails
Applent ATN4508 Multichannel temperature TesterPacking list
- SKU
- NB005866
- Thermocouple indexing number
- J/K/T/E/S/N/B/R type
- Basic Precision
- 0.2 ℃ +/- 2 words (excluding Sensors error)
- Temperature Measurement Range
- -200~1300℃
- resolution
- 0.1℃
- Number of channels
- 8 channel
- Sampling rate
- Fast: 100ms/channel, Medium speed: 500ms/channel, Slow speed: 1s/channel
- correction
- error correction per channel
- comparator
- Up and down super alarm, set up and down super value separately for each channel
- Interface
- RS232C interface, U disk interface, USB Communication interface
- Standard software
- ATS45 data collection software
- cold junction compensation
- Precision: 0.5 ℃
- other
- TFT-LCD true color liquid crystal display, even detection function
- Power Supply
- Voltage: 85VAC~ 260VAC Frequency: 50Hz/60Hz Power: 10VA
- Dimension
- 216*88*300mm
- Weight
- 3kg
- Accessories
- K-type Thermocouple 8 pcs (2 m/pc), data collection software CD-ROM
Introduction
AMPRE ATN4508 multi-channel temperature Tester is a multi-channel temperature Tester controlled by ARM microprocessor, which samples multi-channel parallel testing, and simultaneously collects, alarms, and communicates 8-channel temperature transmission. Compatible with a variety of temperature sensors, fast response, stable data, and has the function of broken detection.
The sampling professional test principle makes the temperature test resolution to 0.1 degrees.
Similarly, the AT4508 has a wide range of adaptability and supports thermocouples type K/N/E/J/T/R/S/B. The test range is from -200°C~1300°C.
AMPO'ATN4508 multi-channel temperature Tester adopts the AMMG instrument operating system ATOSTMv4 with independent property rights, which makes the operation of the test instrument simpler and more convenient, and relies on ATOSTMv4 at the same time, the instrument can be well compatible with large-capacity memory and has strong PC communication capabilities.
The instrument is equipped with RS-232 and USB interfaces as standard, and provides free communication for easy data acquisition, analysis and printing via PC software.
The AT4508 is housed in a rugged, vibration-resistant enclosure that can operate in harsh environments. Fully isolated digital and analog signals, AT4508 comes standard with a U disk interface to support real-time data storage.
Performance characteristics
● TFT true color LCD display, three display fonts.
● Fast, medium and slow three-level scanning speed
●Cold end compensation
●Standard USB disk interface, support large-capacity storage devices.
●Standard RS232C interface and USB interface
●Automatic detection of broken couples
●Designated channel scanning
●AT45 data acquisition software is standard
apply
It is suitable for multi-point temperature testing by manufacturers and quality inspection departments in home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LEDs and other industries.

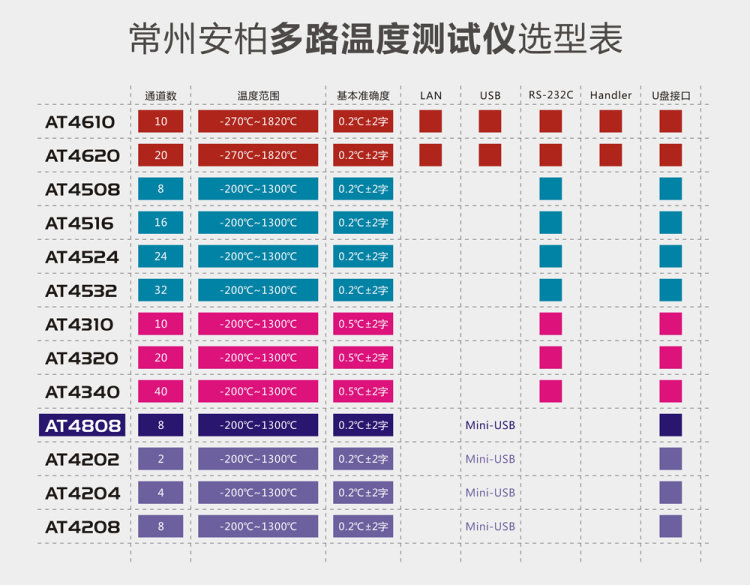

Amber Multi-way Temperature Tester Selection Table
