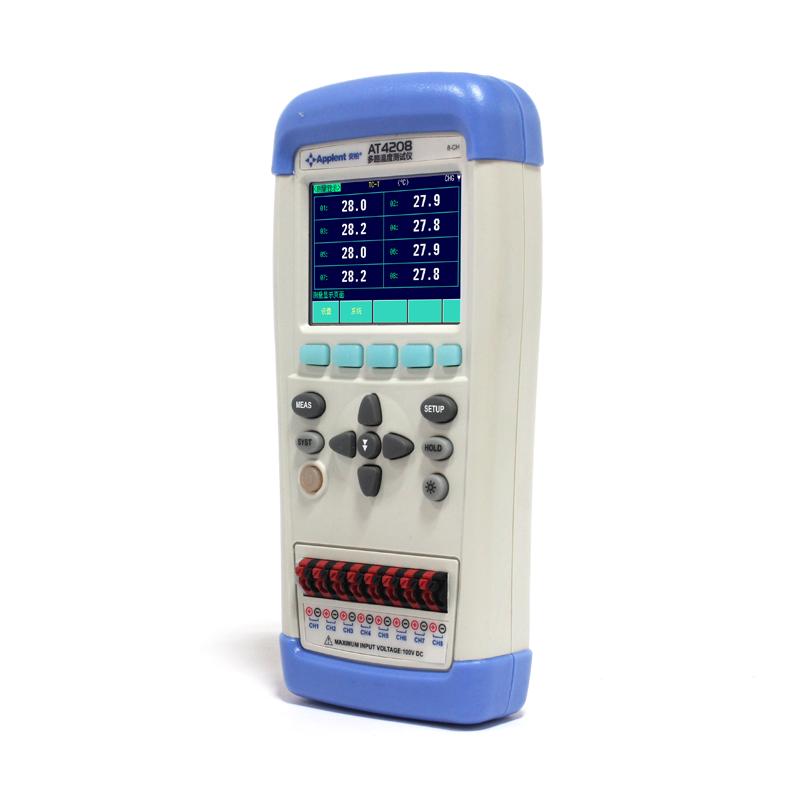

APPLENT AT4202 Portable multi-channel temperature Tester 2 Number of channels
AT4202
Applent AT4202 Multichannel temperature TesterSPEC
Applent AT4202 Multichannel temperature TesterDetails

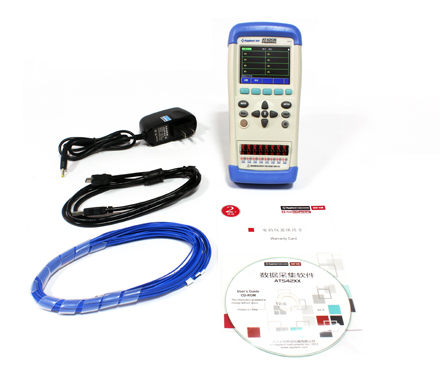

Applent AT4202 Multichannel temperature TesterPacking list
- SKU
- NB005867
- indexing mark
- Thermocouple: J/K/T/E/S/N/B/R type
- Basic Precision
- 0.2 ℃ +/- 2 characters (excluding Thermocouple)
- Temperature Measurement Range
- -200~1300℃
- resolution
- 0.1℃
- Number of channels
- 2 channel
- Sampling rate
- Fast: 100ms Medium speed: 500ms Slow speed: 1s
- correction
- error correction per channel
- comparator
- Up and down super alarm
- Interface
- Mini-USB, charging interface, TF card interface, U disk interface
- Standard software
- ATS42 data collection software
- cold junction compensation
- Precision: 0.5 ℃
- other
- 2.8-Inch true color 16M color TFT-LCD display; touch screen; USB communication, compatible with SCPI Instruction Set Architecture; Chinese and English switching; backlight adjustment; Timer shutdown, support TF card storage and USB disk storage
- Power Supply
- Input: 100-240V~ 50/60Hz 0.35A Output: 9V 1A DC
- Power Supply
- 8.4V, Li, 1400mAh rechargeable battery
- Power Supply
- Charging time: 200Min max.
- Battery life
- Luminance 30% ≥ 14 hours, luminance 50% ≥ 12 hours, luminance 100% ≥ 9 hours
- Dimension
- 90*190*31mm
- Weight
- 400g
Introduction
AMPLUS AT4202 portable multi-channel temperature Tester is a handheld multi-channel temperature Tester, which adopts high-performance 32-bit ARM microprocessor control, which can collect multi-channel temperature data at the same time, and can be used for alarm and communication transmission, compatible with a variety of temperature sensors, with fast response speed, stable data, and disconnection detection function. Ultra-low power consumption design and high-density SMD assembly process, true color TFT LCD display, and with keyboard, touch screen dual control. Powered by lithium battery, USB communication. The operation interface between Chinese and English can be quickly switched. The standard data acquisition software provides you with strong support for data analysis!
Performance characteristics
● TFT true color LCD display
● Touch screen control
● Fast, medium and slow three-level scanning speed
● Cold junction compensation
● Standard USB disk interface, supporting large-capacity storage devices
● Standard MiniUSB interface
● Automatic detection of broken couples
● Designated channel scanning
● ATS42 data acquisition software is standard
● Powered by 8.4V lithium battery
Application
● It is suitable for multi-point temperature testing by manufacturers and quality inspection departments of home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LEDs and other industries.

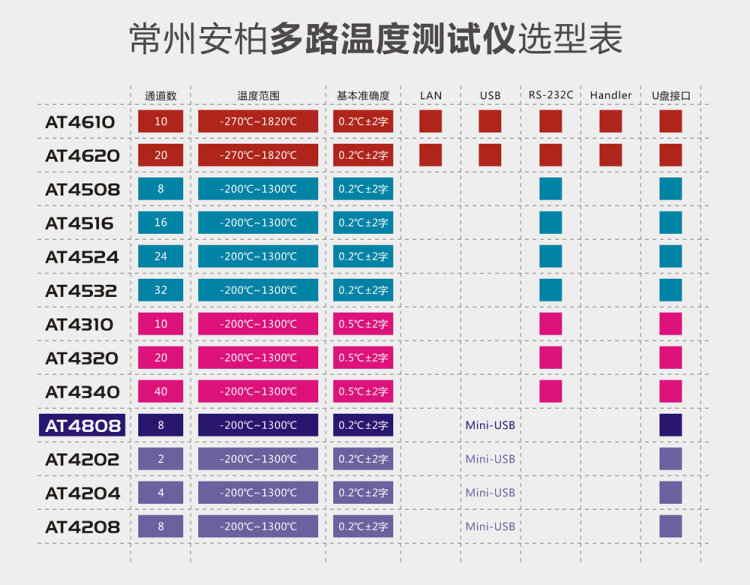

Amber Multi-way Temperature Tester Selection Table
