Defelsko PosiTector 6000 N1 film thickness Measurement Instrument nonconductive coating Measurement Instrument

SE
PosiTector6000 series hot-selling models, measuring thickness 0~1500μm, eddy Current high-precision anti-wear one-piece probe, built-in temperature compensation function; can flip the display touch LCD screen, support screenshots; with sound visual alarm; USB interface can transmit data and charge.
$929.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 N1 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 N1 Coating Thickness GaugeDetails

Defelsko PosiTector 6000 N1 Coating Thickness GaugePacking list

SKU
NB000588
Measurement principle
Eddy Current
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
N1 Probe (Universal)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
LCD screen
Interface
USB
supporting software
Yes.
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
Non-ferrous metal substrate nonconductive coating environment
screen image saving
One hundred.
Protection level
IP65
Measurement speed
60 + readings per minute

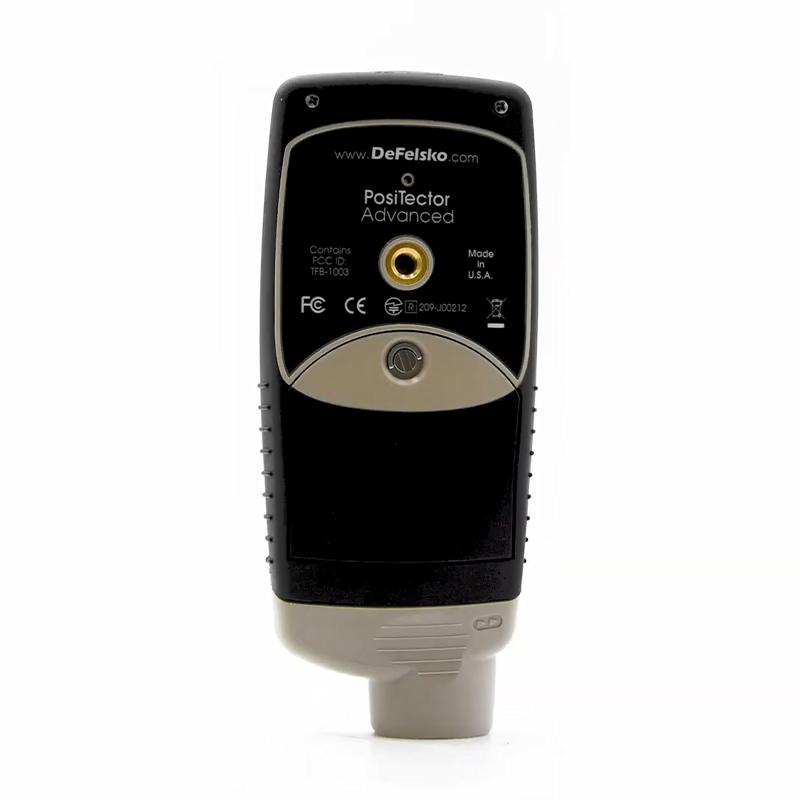

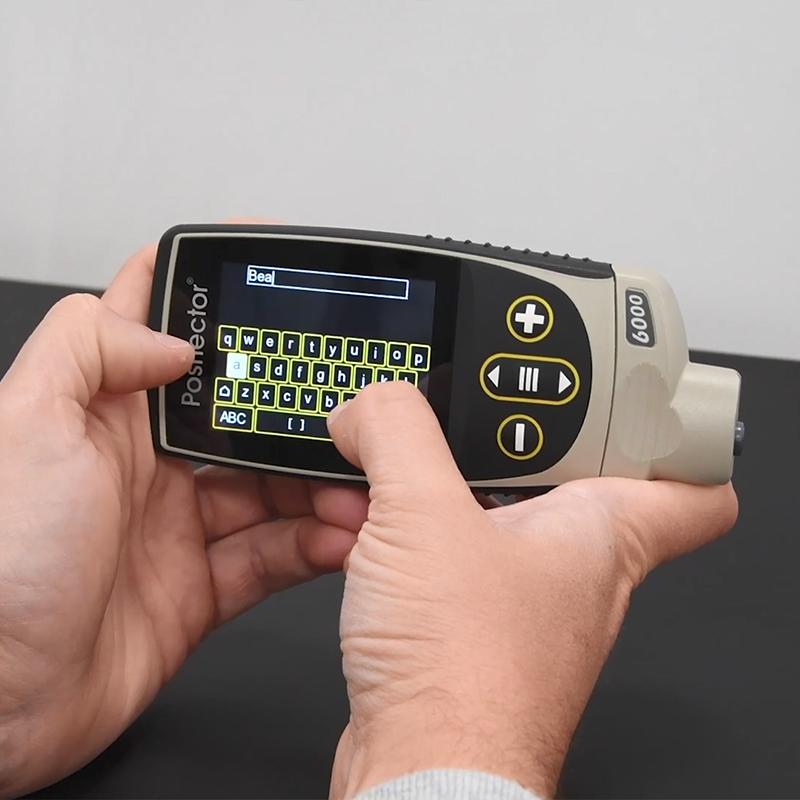

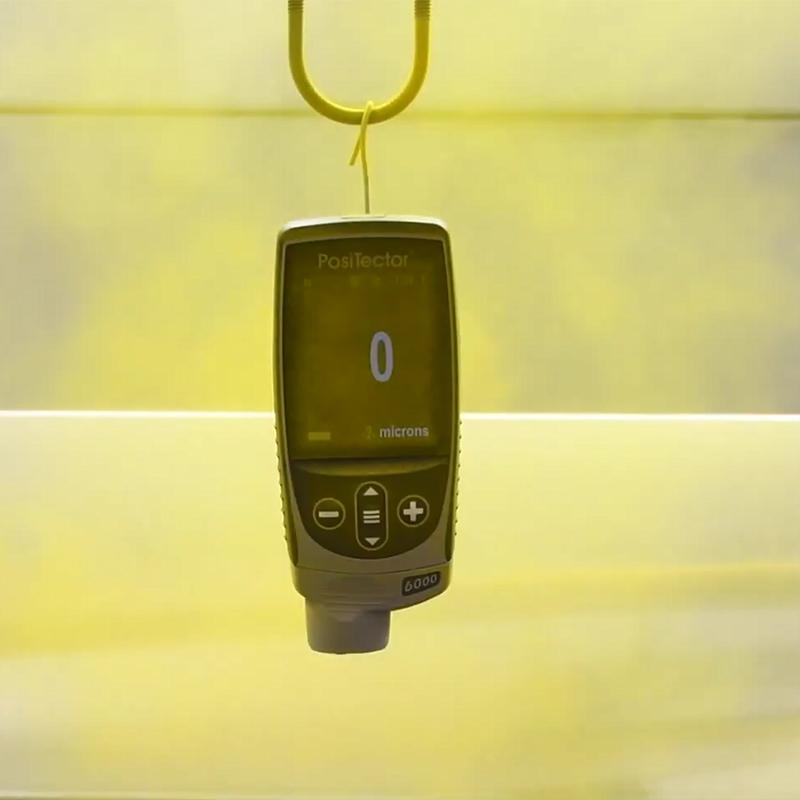

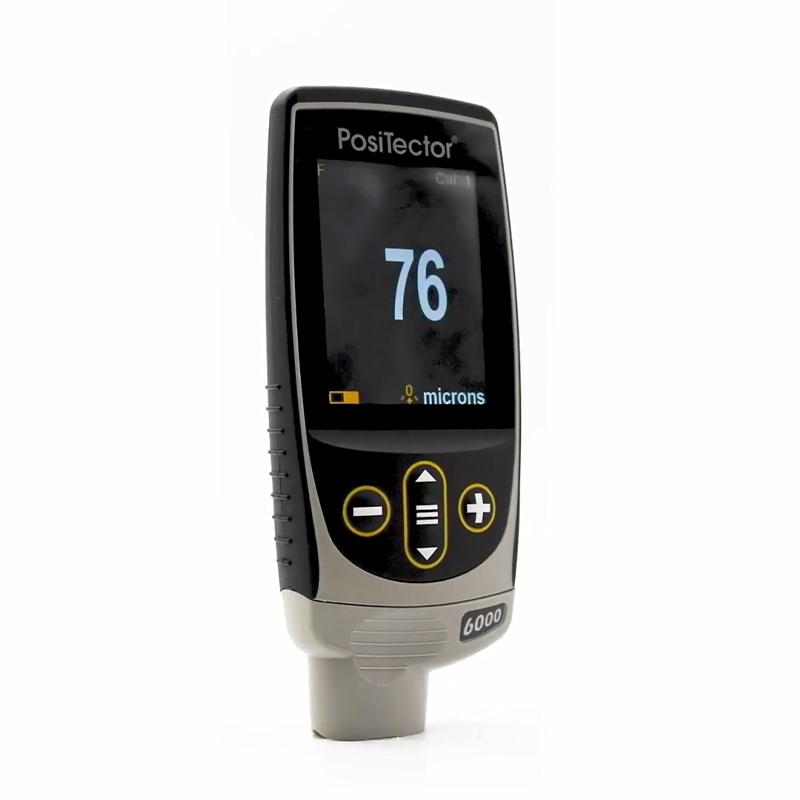

PosiTector 6000 N1
Coating Thickness Gauge
PosiTector6000 series hot-selling models, measuring thickness 0~1500μm, eddy Current high-precision anti-wear one-piece probe, built-in temperature compensation function; can flip the display touch LCD screen, support screenshots; with sound visual alarm; USB interface can transmit data and charge.
Defelsko PosiTector 6000 N1 film thickness Measurement Instrument nonconductive coating Measurement Instrument Picture

Coating Thickness Gauge selector

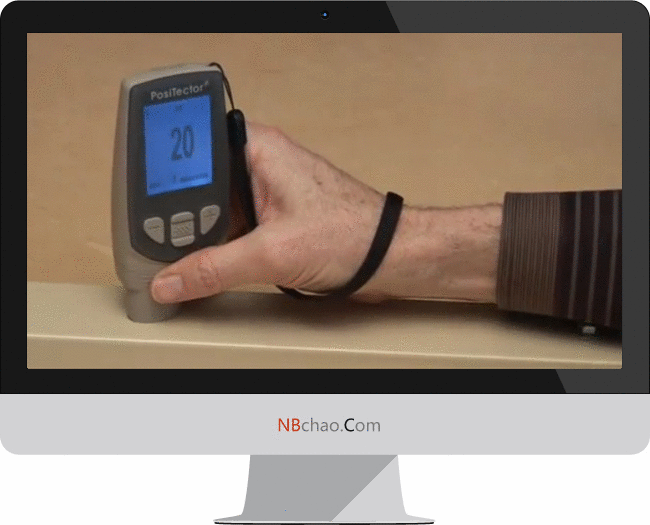

Defelsko PosiTector 6000 N1 涂层测厚仪操作视频

Introducing the PosiTector 6000 N1 Paint Film Thickness Gauge

The PosiTector 6000 N1 Paint Film Thickness Gauge is a U.S. Graves gaugeDefelsko's measuring instrument for measuring paint film thickness features an anti-wear conjoined probe that accurately and non-destructively measures the coating thickness of paint film, and a built-in probe-type construction that is ideal for one-handed operation.The PosiTector 6000 N1 Paint Thickness Gauge is a large LCD display that stores up to 250 test data and provides easy and convenient operation of the gauge with menu-based navigation.

Single-functional:

Substrate: Non-ferrous metal (copper aluminum)

Coating: Non-conductive coating

N1 – Non-ferrous metal substrate (copper, aluminum, etc.) – Conjoined probe type

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 NKS1 Aluminized Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 NKS1 aluminized Thickness Gauge

Other features of the Defelsko PosiTector 6000 NKS1 Aluminized Thickness Gauge

Typical application areas of the Defelsko PosiTector 6000 NKS1 aluminized Thickness Gauge

Why choose the Defelsko PosiTector 6000 NKS1 Aluminum Thickness Gauge from the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QCan this American film Film thickness measurement instrument test the coating thickness on copper plates?
A Hello, it's OK.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QAre all Coating thickness gauges available for testing in the ASTMD7091 standard?
A Not necessarily, but this PosiTector 6000 N1 Coating thickness gauge can be considered.
QWhat is the test accuracy of PosiTector6000 N1 Coating thickness gauge?
A Hello, the measurement accuracy is + (1 um + 1%) 0~ 50 um; + (2 um + 1%) > 50 um
QIs the N1 model of the PosiTector 6000 series a color screen or a monochrome screen?
A Hello, the new N1 model has been updated to a color screen, and the previous version had a monochrome screen.
QI want to measure the coating thickness on the aluminum plate, is this Defelsko PosiTector 6000 N1 okay?
A Hello! Yes, Defelsko N1 is suitable for non-conductive coating measurement on non-ferrous metal substrates (copper and aluminum), and it is an integrated probe.
QDo you have the instruction manual for the defelsko 6000 N1 thickness gauge?
A Defelsko thickness gauges sold by NBchao come standard with operating instructions. If you need a translation of the Chinese version, you can ask the customer service.
QIs there a probe that can measure 15mm Film thickness?
A Hello, this series can replace the probe for measurement 13mm
QIs this the model for the measurement of the surface coating of the aluminum plate substrate?
A Hello, yes.
