KINGWELL JZ-350 Colorimeter 8mm caliber, suitable for plastic, lame plating, design, printing, clothing, printing and dyeing, etc

JZ-350

Color Colorimeter

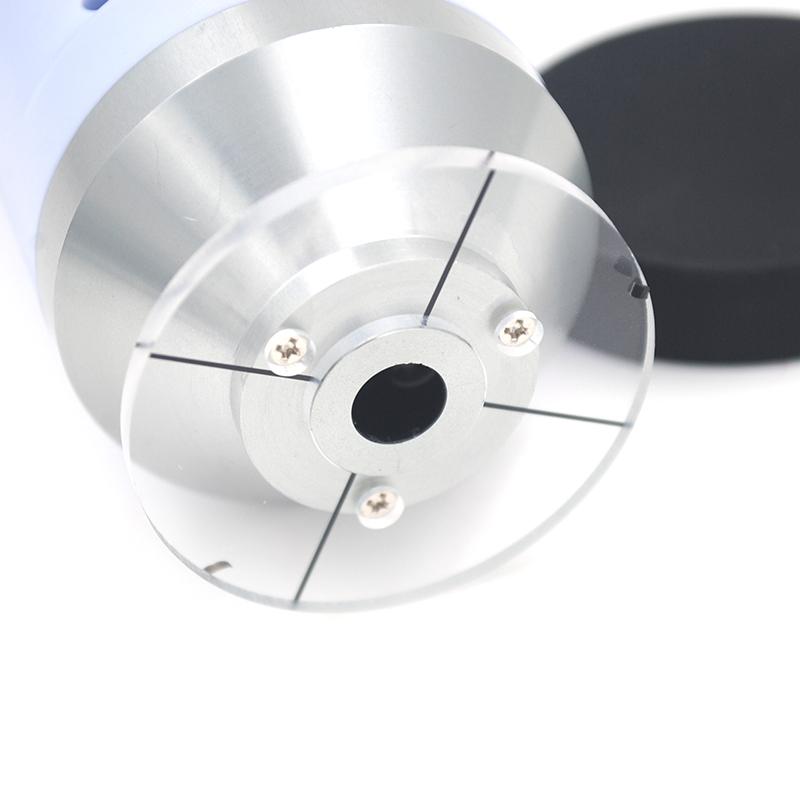

JZ-350 parts imported from Japan and Germany, in line with CIE1931, 1976 and other standard design, measurement diameter 8mm, handheld structure design, with color quality management software.

product description

Kingwell JZ-350 Colorimeter is a new type of handheld Colorimeter produced and developed according to multinational standards. The main components of the JZ-350 Colorimeter are imported products and have relatively high stability and durability in measurement. Good advantage. JZ-350 Colorimeter integrates multiple display modes, including L*a*b*, L*C*H*, XYZ, ΔE*ab, Δ(L*a*b*), Δ(L*C *H*), ΔXYZ, giving users more room for choice, and has four observation light sources.

JZ-350 Colorimeter is a new type of portable Colorimeter developed and produced in accordance with international CIE1931, 1976 and other relevant standards and JJG595-2002 national standard. The main components of the instrument are all imported from Japan and Germany, and are stable, durable and economical.

Product Structure

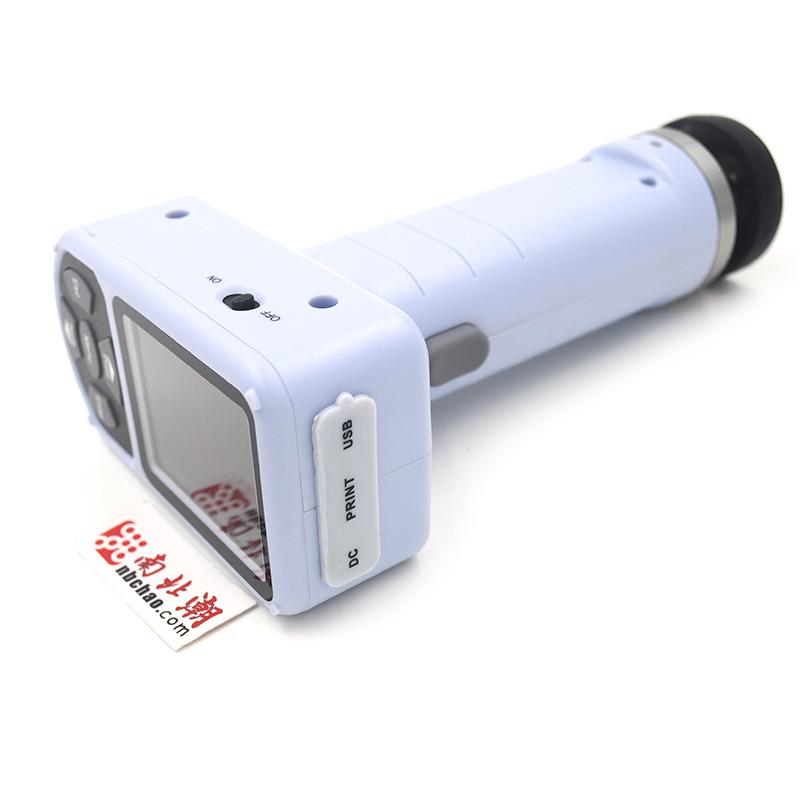

 JZ-350 Colorimeter host structure diagram

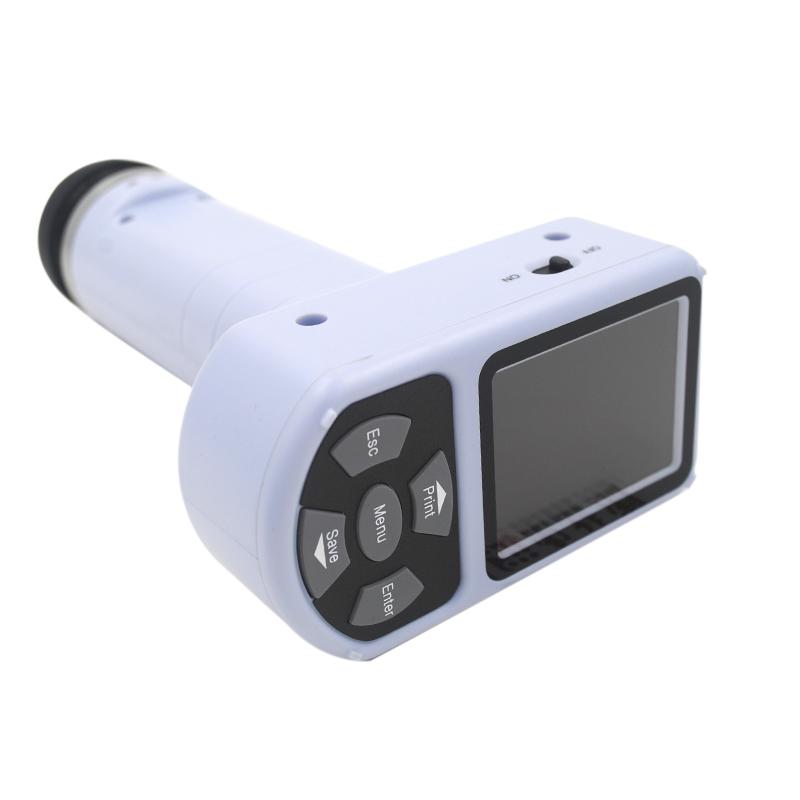

 JZ-350 Colorimeter button diagram

Application

JZ-350 Colorimeter is mainly suitable for plastic, spraying, design, printing, clothing, printing and dyeing and other industries. Color matching analysis and color quality control can be performed.

Features

■Kingwell JZ-350 Colorimeter can be freely switched between three operating languages, and the menu-based operation interface is easier to control.

■ Multiple light sources and color space modes to meet special requirements under different measurement conditions

■ Equipped with whiteboard calibration and zero calibration as standard, the measurement data is more accurate and stable

■ Kingwell JZ-350 Colorimeter has a large storage space and can store 1500 sets of data. The data can be viewed, recalled and uploaded to the computer at any time.

■ Professional color quality software can assist in color matching analysis and quality control

■ Optional micro printer. Through the micro printer, data can be output on-site without connecting to a computer.

■Color quality software can analyze and communicate color charts and data

Main functions of the software

* Numerical data analysis of standard and sample color difference.

* Color simulation chart, color difference chart, batch.

* Color difference column chart analysis.

* Save and call out standard database.

* Color quality report output and printing.

* The data saved in Kingwell JZ-350 Colorimeter can be uploaded to the computer.

Color difference formula of Colorimeter

Note:

△ E* =[(△L*)2 + (△a*)2+(△b*)2 ]1/2

△ L* = L*sample - L*standard

△ a* = a* sample - a* standard

△ b* = b*sample - b*standard

△ E*: The size of the total color difference

△ L+ means whiter, △L- means black

△a+ means reddish, △a- means greenish

△ b+ means yellowish, △b- means bluish.

Packing list：host x1, instrument soft package x1, protective cover x1, AC adapter x1, standard calibration cylinder x1, color quality management software x1, USB data cable x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
