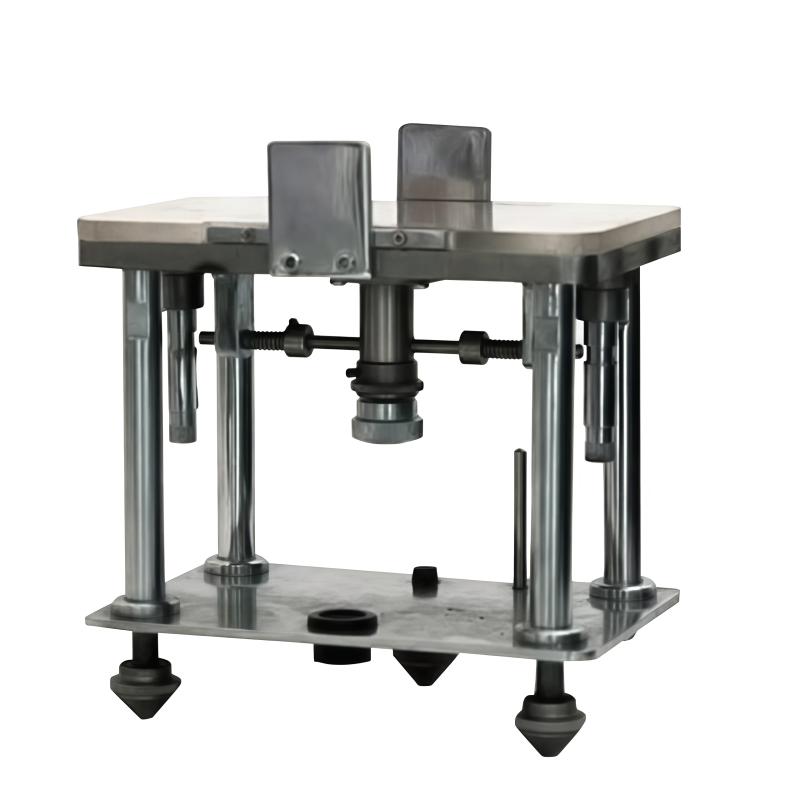

JINGKELIAN QNP Plate Viscometer accurately measures the flow of inks between two parallel plates

QNP

Flat Viscometer

Application standard GB/T14623.3 standard, Glass platen weight 115 +/- 0.5g, inks sample volume 0.5 cubic centimeters +/- 0.003 cubic centimeters, plate maximum Measurement range diameter 9cm, indication resolution value 0.1cm.

QNP Plate Viscometer Overview

JinKeLian QNP plate viscometer is a plate viscometer designed according to the national standard GB/T14623.3. The volume of the test sample is 0.5±0.003 cubic centimeters, which is suitable for testing the viscosity value of water-based ink, paint, paint, etc. .

JinKeLian QNP plate viscometer is a viscometer based on the principle of ink flow between two parallel plates. It can quickly and accurately measure the flow of ink between two parallel plates under low shear stress. (Some countries in the world take the spreading diameter in one minute as the fluidity of the ink), so the flat viscometer is also called a spreading meter.

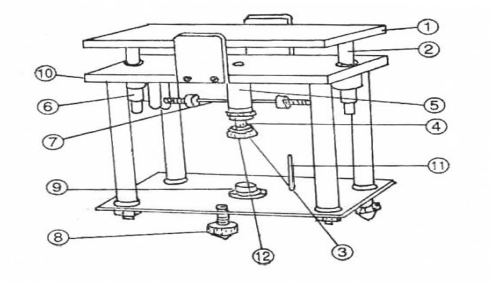

Structural diagram of QNP plate viscometer

1. Press plate; 2. Guide post; 3. Tight nut; 4. Central shaft; 5. Set; 6. Guide post cover; 7. Spring shaft; 8. Adjusting screw ; 11. small column; 12 adjustment female

Product Details

Packing list：Viscometer x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
