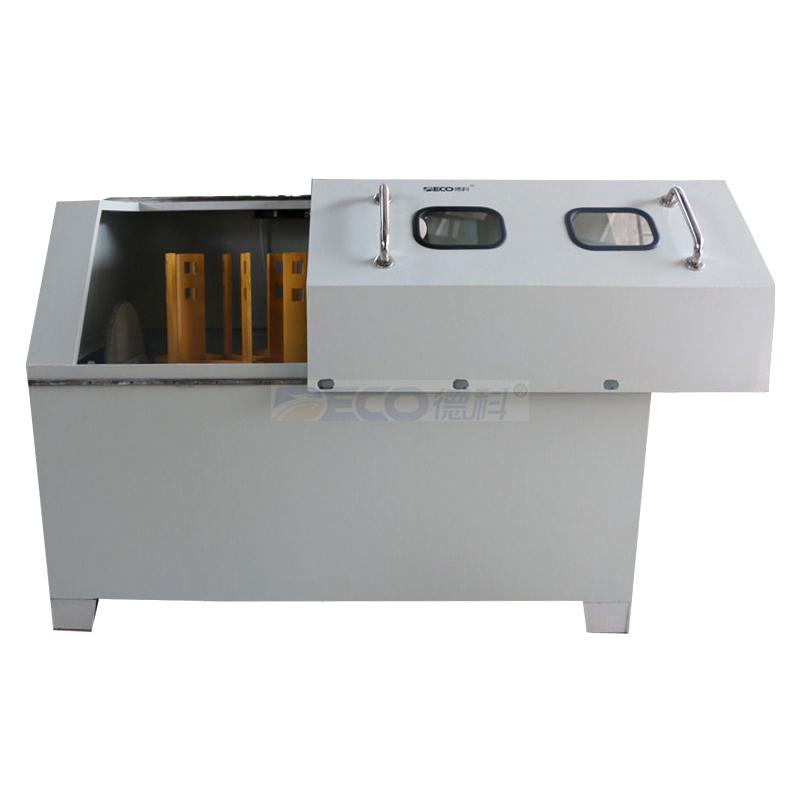

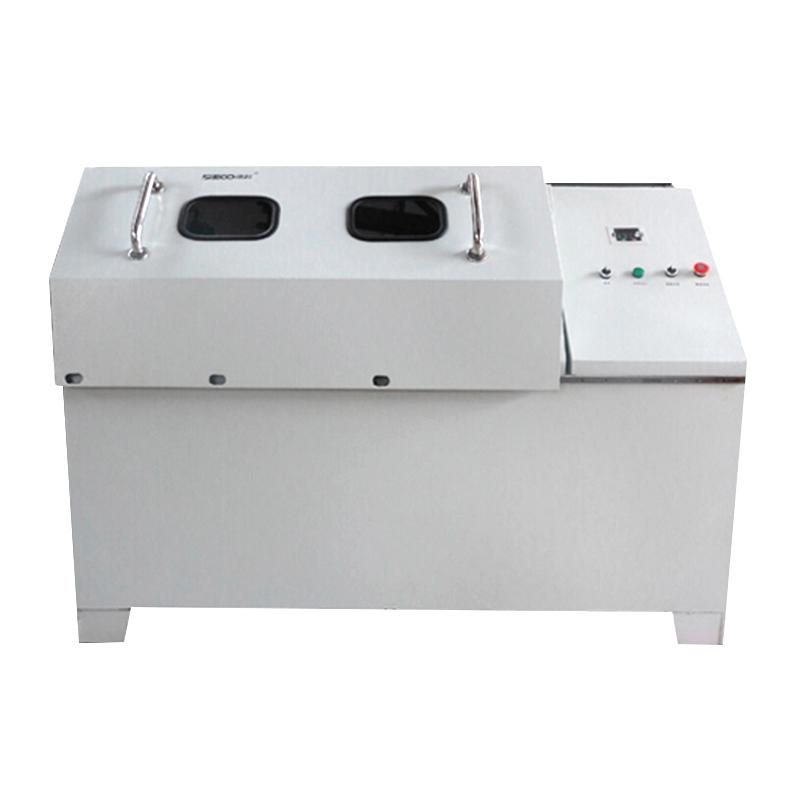

DECO Instruments DECO-PBM-AD-20L All round planetary Ball mill for production

DECO-PBM-AD-20L

All round planetary Ball mill for production

Introduction:

"DECO-PBM-AD-20L" comprehensive planetary ball mill is a productive batch grinding equipment. This product has the characteristics of large processing capacity, uniform output, safe and simple use, and various grinding materials.

Principle:

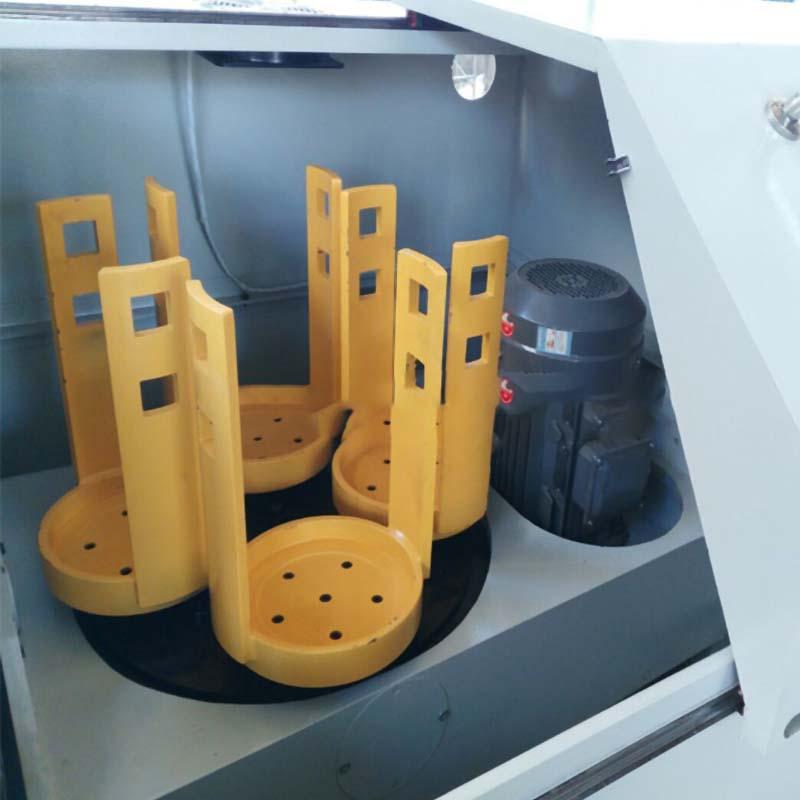

In the planetary ball mill, the four ball mill pots placed on the planetary disc also rotate at a high speed in the opposite direction under the high-speed rotation of the planetary disc. At the same time, the planetary disc and the ball mill as a whole are tumbling 360° under the power of the motor. In the process of constantly changing the orientation, more intense and uniform friction and impact energy will be generated between the material and the grinding ball, and this energy will fully pulverize, mix and homogenize the material in the ball mill tank.

Performance advantages:

 о Powerful, fast and comprehensive grinding, which can achieve high precision and highly consistent output effect;

 о Fine grinding, no pollution, wide range of materials suitable for grinding;

 o The control of grinding data such as rotation speed and time can ensure the repeatability and consistency of sample grinding;

 о Can control the tumbling speed of the planetary disc to improve the grinding effect;

 о Configure a variety of ball milling jars of different materials to grind at the same time to increase the diversity of ground samples;

 o Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding and multiple grinding methods;

 о The grinding room and control room are equipped with high ventilation and heat dissipation;

 о The control system has strong maneuverability, convenient parameter setting, various functions, intuitive digital display, simple operation, one-piece operation and safe use;

 о Power-off protection function, automatic storage of grinding data;

 о Standard production process, exquisite workmanship, exquisite material selection, environmental protection and energy saving, and good service life;

 о The ball mill and the ball mill jar are easy to use;

 о Simple and convenient maintenance and repair;

Performance:

   Application: crushing, mixing, homogenizing, colloid grinding, mechanical alloying, etc.

   Applications: pharmaceuticals, food, chemical industry, synthetic materials, electronics, engineering, metallurgy, glass, ceramics, biology, etc.

   Sample characteristics: soft/hard material, dry/moisturized material, brittle, fibrous material, viscous material

   Crushing principle: friction, impact

   Maximum feed size: <2mm

   Discharge particle size: the minimum can reach 0.1um

   Speed ratio: 1:2

   Ball milling tank speed: 450r/min

   Type of ball mill: practical/vacuum

   Ball mill material: stainless steel/tungsten carbide/nylon/polyurethane/polytetrafluoroethylene/polypropylene/polymer polyethylene/agate/alumina/zirconia

   Ball mill size: 5000ml

   Grinding ball material: stainless steel/alumina/zirconia/agate/tungsten carbide

   Grinding ball size: 3-30mm

   Function mode: run, pause, reverse run, forward and reverse alternately run, intermittent run, adjustable speed tumbling, adjustable speed rotation, running time can be set;

   Grinding time setting: digital display, 00:00:01 to 99:59:59

   Pause time setting: digital display, 00:00:01 to 99:59:59

   Intermittent operation time setting: digital display, 00:00:01 to 99:59:59

   Drive: frequency converter, three-phase AC motor

   Driving Voltage: 380V

   Frequency: 50-60Hz

   Drive power: 4kw

   Power connector: three-phase

   Body size (length*width*height): 1650*1250*1200mm

   Net weight: 1100kg

   Gross weight: 1200kg

   Protection class: IP53

   Standard: CE

   Accessories: pressure rod, tools, lubricant, manual, warranty card, certificate of conformity

Applications:

Licorice, Dendrobium officinale, Ginseng, Paeoniae Alba, Angelica, Honeysuckle, Zirconia, Aluminum Oxide, Aluminum Oxide, Iron Powder, Titanium Oxide, Zinc Oxide, Calcium Carbonate, Quartz Sand, Titanium Dioxide, Chlorinated Paraffin, Silicon Dioxide, Silicic Acid Sodium, graphite, ink, paint, coke, kaolin, etc...

Packing list：completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
