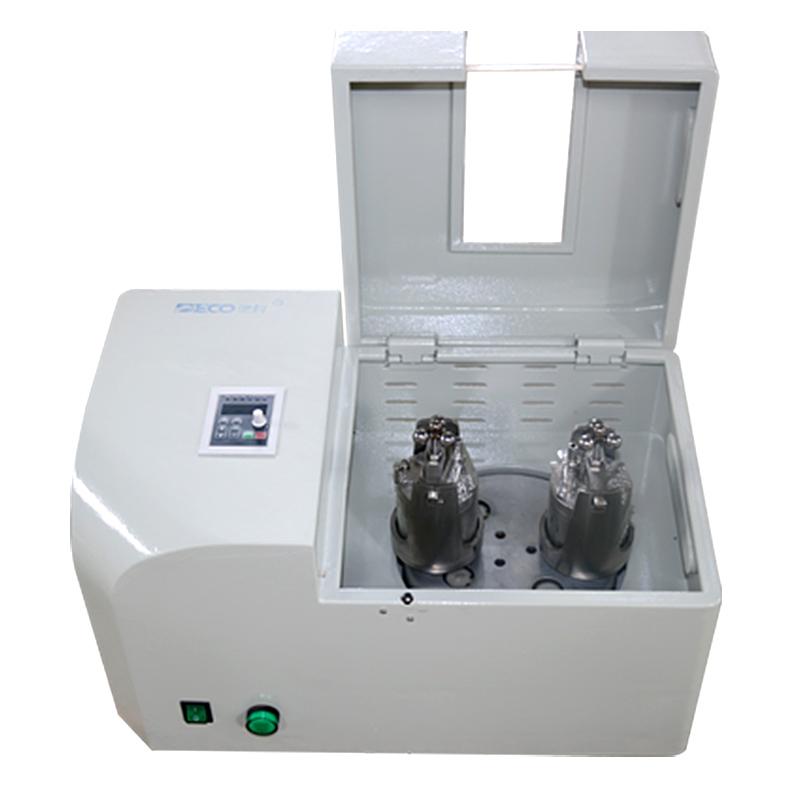

DECO Instruments DECO-SG100 Double Tank LABOratory Planetary High Energy Ball mill

DECO-SG100

Double tank laboratory Planetary Ball mill

Introduction:

Double-tank laboratory planetary ball mill (instrument) is suitable for grinding hard to soft and brittle samples and samples in suspension in the laboratory. It is ultra-fine powder grinding, sample processing in the pharmaceutical industry, preparation of new materials, and material purification Excellent choice for mechanical alloying and mechanical activation. It is suitable for fine grinding of a single batch of samples, and it can also be used for mixing and homogenizing emulsions and pastes.

Principle:

The planetary ball mill uses the principle of planetary revolution and rotation, and the grinding balls move at high speed in the ball mill tank, and the sample is crushed through high-energy friction and impact force, and the sample can be quickly ground to below nanometers, so as to realize the refinement and mixing of the sample ,average.

Features

- Desktop operation, no installation required, safe and easy to use;

- Small grinding space can achieve excellent grinding effect for a small amount of samples;

- The highest speed is 900r/min, and has a good speed control function to achieve fast and uniform grinding;

- suitable suspension for loss-free grinding;

- selectable power supply Voltage (100-120 / 200-240 V);

- Motor control and frequency conversion control system to ensure repeatable grinding and highly consistent grinding;

- Use the easy-to-operate compensating principle to compensate for the unbalance of loading samples and ball weights in different ball mill jars;

- The volume of the grinding bowl is between 50–200ml;

- Grinding materials with analytical grade purity, there are more than ten kinds of grinding devices with different materials to choose from, ensuring pollution-free grinding;

- Programmable control of grinding time and cooling time, as well as grinding sequences such as changing direction and alternation, can be set to grind for a short time accurate to the second to enhance the grinding effect;

- Vacuum ball milling tanks of various materials can be used to fill in gas for mechanical alloying or vacuum grinding;

- Easy cleaning of grinding elements;

- CE standard;

- 1 year warranty;

The main parameters:

1. Maximum injection size: <10mm

2. Maximum capacity: 200ml

3. Discharge particle size: the minimum can reach 0.1um

4. The maximum number of samples that can be processed at the same time: 2 types

5. The volume of the ball mill jar is: 50 ml, 100 ml 2 types

7. Electrical description: 100 -120 / 200 -240 V/1～, 50-60 Hz 0.25kw

8. Main functions: running, stopping, changing direction running, forward and reverse alternate running, intermittent running, timing, stepless speed regulation, restoration, protection, etc.

9. Weight: net weight 38 kg gross weight 45 kg

10. Dimensions (L×W×H): 550×330×290 mm

main feature:

1. Mainly used for laboratory laser spectrum analysis, precision grinding of chemical, pharmaceutical, biological, glass, ceramics, building materials, coal raw materials, pretreatment of laboratory samples in food industry and material technology, geology, mineralogy and nuclear industry research field.

2. The grinding time and cooling time accurate to the second can be set, as well as forward and reverse operation, and the grinding frequency can be set.

3. Analytical grade grinding material ensures contamination-free grinding.

4. The instrument and grinding components are easy to clean, which minimizes the contamination of samples.

5. Can be filled with inert gas for grinding, and can be vacuum ground.

6. There are more than ten kinds of ball milling jars of different materials to choose from, including agate, alumina, zirconia, stainless steel, polypropylene, polyethylene, polyurethane, nylon, tungsten carbide, etc.

7. Heating equipment and refrigeration equipment can be added to realize high-temperature ball milling and high-temperature ball milling.

Applications:

Geology, mineralogy, ceramic industry, chemical industry, biology, pharmaceutical industry, mineralogy research, metallurgy, electronics industry, glass industry, nuclear research, soil research, etc.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
