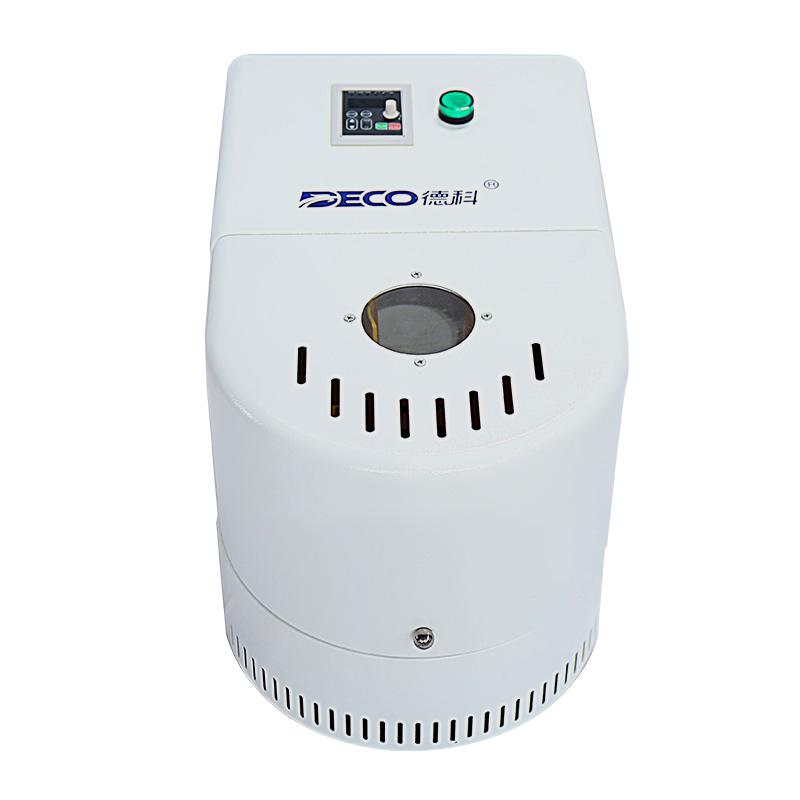

DECO Instruments DECO-PBM-V-0.4L four-tank laboratory planetary high-energy Ball mill
SE
DECO-PBM-V-0.4L
DECO DECO-PBM-V-0.4L Planetary High Energy Ball millSPEC
DECO DECO-PBM-V-0.4L Planetary High Energy Ball millDetails
DECO DECO-PBM-V-0.4L Planetary High Energy Ball millPacking list
- SKU
- NB005960
- application
- Crushing, mixing, homogenization, colloidal grinding, mechanical alloys, etc
- Application
- Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Pottery and porcelain, Biology, etc
- Sample characteristics
- Soft/hard material, dry/moisturizing material, brittle chat, fiber material, tack material
- Processing principle
- Friction, impact force
- Maximum feed size
- 2mm
- Minimum discharge particle size
- 0.1µm
- speed ratio
- 1:2
- Ball mill tank speed
- 1100rpm
- Planetary disk diameter
- 190mm
- Film thickness
- 6mm
- Type of ball mill
- Practical type, vacuum type
- Ball mill material
- Stainless steel/tungsten carbide/nylon/polyurethane/polytetrafluoroethylene/polypropylene/polymer polyethylene/agate/oxidation aluminum/zirconia
- Grinding tank size
- 50ml|100ml
- Grinding material
- Stainless steel, aluminum oxidation, zirconia, agate, cemented carbide
- Grinding ball size
- 3~30mm
- Function Mode
- Running, pause, reverse running, alternating positive and negative running, intermittent running, adjustable speed tumbling, adjustable speed swirl/spin, running time can be set
- Ground time setting
- Digital display, 00:00:01 to 99:59:59
- Intermittent run time setting
- Digital display, 00:01:00~99:59:59
- Intermittent run time setting
- Digital display, 00:00:01~ 99:59:59
- driver
- Frequency converter, three-phase AC motor
- Power
- 110-120V / 220-240V
- frequency
- 50-60Hz
- Drive power
- 0.25kw
- Power Connector
- single phase
- Dimensions
- 502*300*296mm
- Net Weight
- 32kg
- Gross Weight
- 45kg
- Protection class
- IP53
- standard
- CE
DECO high-energy planetary ball mill "DECO-PBM-V-0.4L" is suitable for rapid, effective and accurate sample development, mixing and homogenization in the laboratory. It is a small volume, low noise, strong controllability and function Comprehensive, fine grinding, fast grinding small grinding equipment, widely used in chemical industry, medical treatment, food, beauty, metallurgy, ceramics, glass, scientific research, teaching and many other fields;
Principle:
In the planetary ball mill, the ball mill jar with the grinding balls and samples rotates in reverse at high speed under the high-speed motion of the planetary disc, and the sample and the grinding balls are constantly colliding and rubbing against the inner wall of the ball mill jar. The energy, this huge energy makes the sample achieve a good crushing effect; DECO Deke planetary high-energy ball mill has a short grinding time, and the output reaches nano-scale ultra-fine particle size;
Customer application:
Chinese medicinal materials, Chinese medicine powder, tablets, cosmetics, pigments, inks, soil, quartz powder, metal powder, plastics, ceramic chips, coke, tobacco, chemicals, calcium, minerals, tobacco, milk powder, grains, etc...
Performance advantages:
1. The grinding time is short, the output particle size is fine and the precision is high;
2. High consistency of repeated grinding;
3. A wide range of ball mill materials can be selected, and various types of materials can be ground;
4. With four working positions, it can grind up to 4 kinds of materials of different types and qualities at a time;
5. Under the same conditions, the accuracy of grinding samples for each batch of each jar is high;
6. Possess many functions such as reverse, forward and reverse alternate operation, stepless speed regulation, timing, intermittent operation, safety protection, power-off memory, data storage, etc.;
