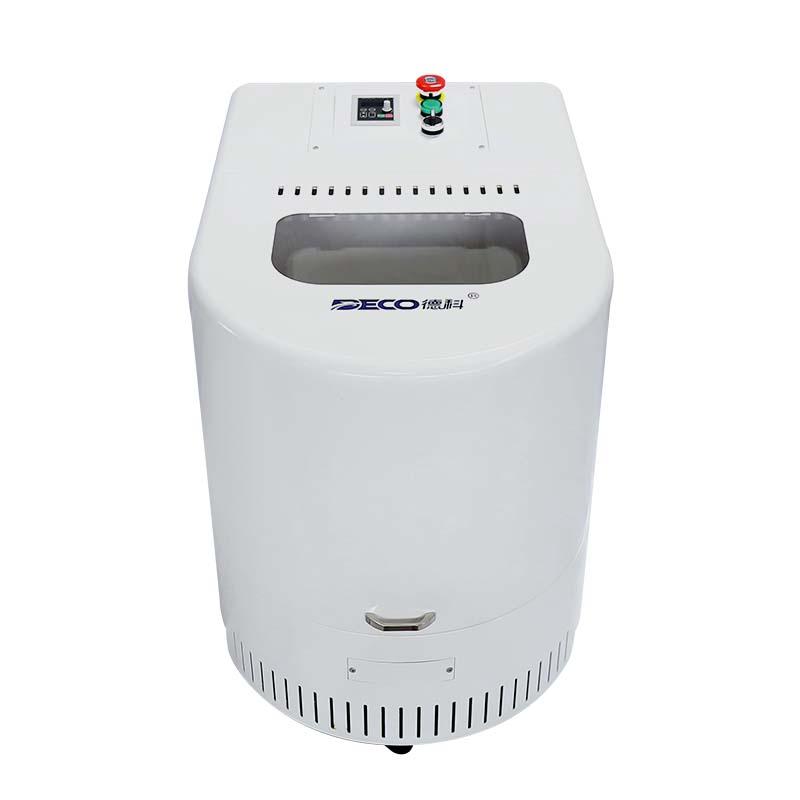

DECO Instruments DECO-PBM-V-2/4/6L-A Light Planetary Ball mill Vertical

DECO-PBM-V-2L-A

Light Planetary Ball mill

Introduction:

   "DECO-PBM-V-2L-A" is a powerful and fast effective equipment for laboratory sample preparation, which meets the requirements of high-precision sample grinding. Remarkable crushing effect, with the characteristics of short grinding time, high grinding precision, strong controllability and safe use. This product offers three options of 1L, 2L, 4L and 6L.

Principle:

      There are four ball milling tanks installed on the planetary disc. When the planetary disc rotates at a high speed, the ball milling tank makes a planetary movement of the central axis. The balls in the ball milling tank collide and rub the materials violently during the high-speed motion, so that the materials are fully crushed and Homogenize or mix. According to the different properties of the materials to be ground, various grinding methods such as dry grinding, wet grinding, vacuum grinding, low-temperature grinding, and inert gas grinding can be selected for grinding;

Process features:

1. All parts of the fuselage are sprayed;

2. Exquisite workmanship of the casing, ingenious control panel, round outline, beautiful arc, small size;

3. The planetary tank support is made of seamless wire cutting technology, which is durable and can effectively prevent breakage at high speed;

4. The pressure rod is made of 304 stainless steel, no rust, can be used for a long time, the pressure is firm, and the safety factor is high;

5. Delixi inverter and Dedong motor are selected as the core components, which are durable and stable in performance;

6. Equipped with 200CFM cooling system to maintain the normal temperature of the body;

7. Low center of gravity design, stable ground contact, ensuring stable operation;

Performance advantages:

1. According to the amount of grinding, there are three specifications: 1L, 2L, 4L, 6L;

2. Various grinding methods such as dry grinding, wet grinding, vacuum, pressurized grinding, inert gas grinding and low temperature grinding can be used;

3. Under the same conditions, the grinding effect is the same for multiple times, and the grinding effect of each ball mill jar is the same for a single batch of grinding;

4. The grinding time is short, and the output particle size can reach 0.1um;

5. Wide range of grinding samples;

6. The control system has various functions and is easy to operate; it has power-off protection and memory functions;

7. Easy to use and easy to maintain;

Packing list：completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
