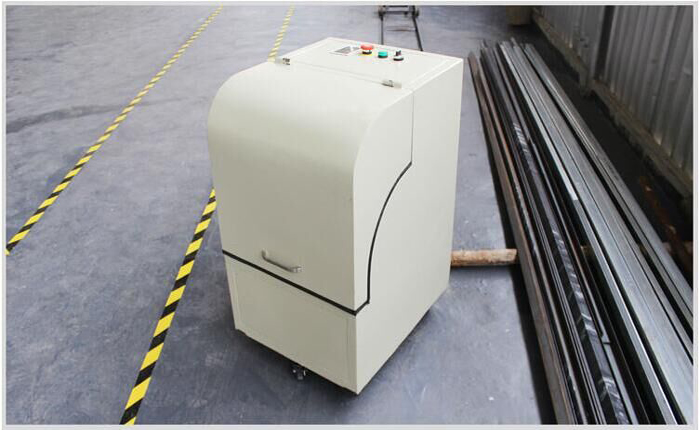

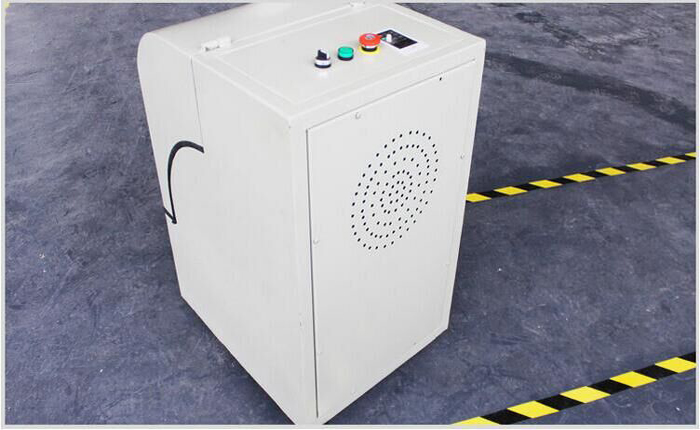

DECO DECO - PBM - H - 2/4/6 L Subwoofer Heavy Duty Planetary Ball mill horizontal

DECO-PBM-H-2/4/6L

Super Bass Heavy Duty Planetary Ball mill

Introduction:

In the grinding of materials with high viscosity due to the large difference in gravity with the grinding ball, which is easy to sink to the bottom or float, the "DECO-PBM-H-2L" horizontal planetary ball mill has a better grinding effect than the vertical planetary ball mill. The 140kg overweight body not only ensures the good stability of the equipment in grinding, but also effectively reduces vibration and noise. The load-bearing load of the main disc can reach 90kg, and it can still operate safely and stably even when four tanks are fully loaded;

Operating Principle:

   The horizontal design of the ball mill tank increases the energy generated by the gravity of the grinding ball, and the centrifugal force generated by the high-speed rotation of the planetary disc and the ball mill tank itself makes the material, the grinding ball and the wall of the ball mill tank produce violent friction, impact and shearing, and the material achieves good crushing, mixing and homogenization effects in this complex and huge energy;

Application examples:

   Calcite, chalk, limestone, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, retolite, diatomaceous earth, barite, gypsum, alum stone, graphite, fluorite, phosphate rock, potassium ore, pumice, ......

Process characteristics:

  1>. Vertical cabinet modeling, internal and external powder paint treatment;

  2>. Thickened metal frame, the floor is made of 10mm steel plate, the weight of the bare metal is up to 140kg, and it is equipped with universal wheels and stable feet that are easy to move;

  3>. The thickness of the planetary disk is 10mm, and the precision wire cutting process is accurate, low vibration and fatigue resistance;

  4>. The ball mill jar tray is made of thickened 6mm seamless steel pipeline cutting and sprayed with plastic, which will not break and improve the safety of the ball mill tank under centrifugal force;

  5>. The grinding room and control room are equipped with 200CFM heat dissipation system;

  6>. The selection of Delixi and Dedong good brand inverter and motor;

  7>. Special strengthened silencing gear transmission is selected;

  8>. The bin cover is equipped with pneumatic support;

  9>. The pressure rods are all made of 304 material, which is safe and durable;

Performance Advantages:

  1. The body is heavy, low vibration and low noise;

  2. Compact structure, does not occupy space, mobile and convenient;

  3. Anti-sinking bottom, uniform, accurate and ultra-fine discharge;

  4. The application involves a wide range of industries, a wide range of grinding samples, and strong grinding flexibility;

  5. It can meet the long-term and high-intensity operation;

  6. Simple operation, practical and comprehensive functions;

Performance indicators:

  Application fields: food, chemical industry, beauty, glass, textile, electronics, teaching, scientific research, etc

  Sample characteristics: heavy, ultra-light, high viscosity, strong, corrosive, easy to oxidize, etc

  Crushing principle: friction, impact, shear

 Grinding structure: horizontal/planetary

 Dry grinding: Yes

 Wet grinding: Yes

 Vacuum Mill: Yes

 Crushing time: 10-20min

 Maximum feed size: 15mm

Discharge size: 0.1um

   Maximum grinding volume of batch: 1000ml/2000ml/4000ml/6000ml

   Number of grinding platforms: 4pcs

   RPM ratio: 2:1

   Ball mill pot speed: 800r/min

   Noise standard: 50-60dB

   Planetary disk diameter: 360mm

   Planetary disk thickness: 8mm

   Ball mill tank type: conventional type/vacuum type/low temperature type

   Ball mill jar material: stainless steel, nylon, polypropylene, ultra-high-density polyethylene, PTFE, polyurethane, corundum, zirconia, agate, cemented carbide

  Ball mill jar size: 250ml/500ml/1000ml/1500ml

   Grinding ball material: stainless steel, polyurethane, nylon, corundum, alumina, cemented carbide, etc

   Grinding ball size: 2-30mm

   Functional modes: forward operation (time can be set), reverse operation (time can be set), forward and reverse alternate operation, intermittent operation (time can be set), timing grinding (time can be set), pause, stepless speed regulation, emergency stop, restoring, etc

   Grinding time setting: digital display, 00:00:01 to 99:59:59

   Pause time setting: digital display, 00:00:01 to 99:59:59

   Intermittent operation time setting: digital display, 00:00:01 to 99:59:59

   Drive: inverter, three-phase AC motor

   Drive power: 0.75kw

   Drive Voltage: 110-120V/220-240V

   Frequency: 50-60Hz

   Power connector: single phase

   Body size (L*W*H): 480*580*760

   Net weight: 140kg

   Gross weight: 160kg

   Degree of protection: IP53

   Standard: CE

   Accessories: pressure rods, tools, lubricants, manuals, warranty cards, certificates

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
