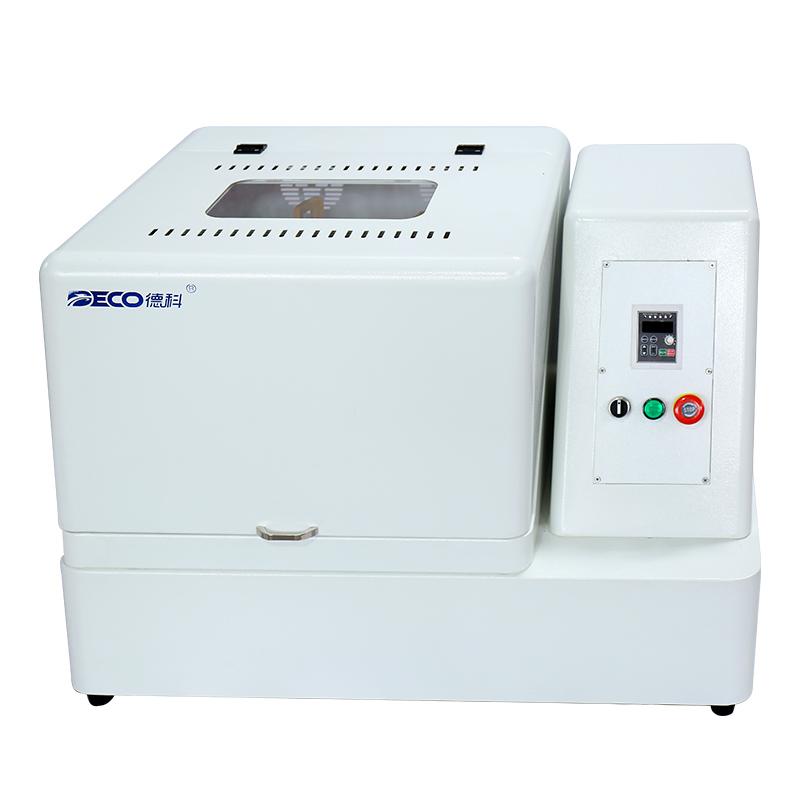

DECO Instruments DECO-PBM-V-8/10/12L Enhanced Planetary Ball mill Vertical
SE
DECO-PBM-V-8L
DECO DECO-PBM-V-8L Vertical planetary Ball millSPEC
DECO DECO-PBM-V-8L Vertical planetary Ball millDetails
DECO DECO-PBM-V-8L Vertical planetary Ball millPacking list
- SKU
- NB005973
- application
- Crushing, grinding, mixing, homogenizing, polishing, etc
- Application
- Electronics, Medical, Beauty, Chemical, Pottery and porcelain, Glass, Metallurgy, Teaching, Research, etc
- Sample characteristics
- Hard, brittle, drying, wet, viscous, fibrous, flowability, corrosion and oxidation, etc
- Processing principle
- Friction, impact force
- Dry grinding
- Yes
- wet grinding
- Yes
- vacuum mill
- optional
- Low temperature mill
- optional
- Grinding time
- 30-60min
- Maximum feed size
- Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
- Minimum discharge particle size
- 0.1µm
- Maximum throughput
- 8L
- station number
- 4pcs
- speed ratio
- 2.2:1
- Ball mill tank speed
- 580rpm
- Planetary disk diameter
- 462mm
- Film thickness
- 12mm
- Type of ball mill
- Practical type, vacuum type
- Ball mill material
- Stainless steel, nylon, polypropylene, ultra-high molecular Weight polyethylene, polytetrafluoroethylene, polyurethane, corundum, zirconia, agate, cemented carbide, etc
- Ball mill tank Volume
- 2L
- Grinding material
- Stainless steel, corundum, aluminum oxidation, zirconia, cemented carbide, etc
- Grinding ball size
- 2~40mm
- Function Mode
- Forward running (time can be set), reverse running (time can be set), forward and reverse running alternately, intermittent running (time, can be set), Timer grinding (time can be set), pause, stepless speed regulation, emergency stop, restore
- Ground time setting
- Digital display, 00:00:01 to 99:59:59
- Intermittent run time setting
- Digital display, 00:01:00~99:59:59
- Intermittent run time setting
- Digital display, 00:00:01~ 99:59:59
- driver
- Frequency converter, three-phase AC motor
- Power
- 220V AC
- Drive power
- 1. 5kw
- frequency
- 50-60Hz
- Power Connector
- single phase
- Protection class
- IP53
- Dimensions
- 880*580*640mm
- Net Weight
- 150kg
- Gross Weight
- 210kg
Introduction:
As a derivative product of the laboratory planetary ball mill, the DECO Deco enhanced planetary ball mill is a dual-purpose planetary ball mill that can be used for experimental sample preparation and industrial powder production. It can be used in three grinding quantities of 8L, 10L and 12L. You can choose according to your needs. The amount of daily processing needs to be realized by selecting the size of the ball mill tank; the 8-12L planetary ball mill can not only bring you the excellent grinding capacity formed by high speed like a small laboratory planetary ball mill, but also has a more powerful With many advantages such as processing capacity and stronger fatigue resistance, it will solve your grinding needs for various materials that have strict requirements on sample output and output particle size;
Principle:
There are four ball milling tanks installed on the planetary disc. When the planetary disc rotates at a high speed, the ball milling tank makes a planetary movement of the central axis. The balls in the ball milling tank collide and rub the materials violently during the high-speed motion, so that the materials are fully crushed and Homogenize or mix. Therefore, the Principle of DECO Deco enhanced planetary ball mill is the same as that of laboratory planetary ball mill, and the product is improved by increasing the volume, weight, capacity, improving internal mechanical design, strengthening core components, scientific mechanics research, etc. output while retaining the same effective grinding capacity as a laboratory planetary ball mill.
Process features:
1. All parts inside and outside the fuselage are sprayed with plastic;
2. The planetary tank support is made of seamless wire cutting technology, which is durable and can effectively prevent breakage at high speed;
3. The pressure rod is made of 304 stainless steel, which is not rusty and can be used for a long time. The pressing is firm and the safety factor is high;
4. Delixi inverter and Dedong motor are selected as the core components, which are durable and stable in performance;
5. Equipped with 600CFM cooling system to maintain the normal temperature of the body;
Performance advantages:
о Three specifications of 8L, 10L and 12L can be selected according to the production demand;
о Practical ball milling jar and vacuum ball milling jar can be configured to realize four grinding methods: dry milling, wet milling, vacuum milling and inert gas milling;
о The materials used for the ball mill can be selected from a variety of materials, and can be specially made by selecting materials and changing sizes according to requirements;
о The grinding effect is the same for multiple times under the same conditions, and the grinding effect of each ball milling pot is the same in a single batch of grinding, and the consistency is good;
о The output is greatly improved, which can meet the needs of the industry;
o Wide range of ground sample types;
о The control system has various functions and is easy to operate; it has power-off protection and memory functions;
o Easy to use and easy to maintain
Applications:
Electronic ceramics, structural ceramics, magnetic materials, lithium cobaltate, lithium manganate, catalysts, phosphors, long-lasting luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, ceramic capacitors, zinc oxide varistors, piezoelectric ceramics , nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, arrester valves, strontium titanate ring varistors, ceramic filters, dielectric ceramics, piezoelectric transducers, Piezoelectric transformers, chip resistors, thick film circuits, pyrostats, alumina ceramics, zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products
