JINGKELIAN QNQ falling ball viscometer Determination of viscosity of clear coating materials with high viscosity value, standard GB/T1732-93

SE
An instrument for measuring the viscosity of clear coating materials with high viscosity values. Standard GB/T1732-93, steel ball diameter 8mm, upper and lower reticle spacing 250mm, inner diameter 25mm, glass tube size length 350mm.
$144.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

JingKeLian QNQ falling ball viscometerSPEC

JingKeLian QNQ falling ball viscometerDetails

JingKeLian QNQ falling ball viscometerPacking list

SKU
NB000598
Application standard
GB/T1732-93
Steel ball diameter
8mm
Upper and lower reticle spacing
250mm
inner diameter
25mm
Glass tube size
Length 350mm
QNQ
falling ball viscometer
An instrument for measuring the viscosity of clear coating materials with high viscosity values. Standard GB/T1732-93, steel ball diameter 8mm, upper and lower reticle spacing 250mm, inner diameter 25mm, glass tube size length 350mm.

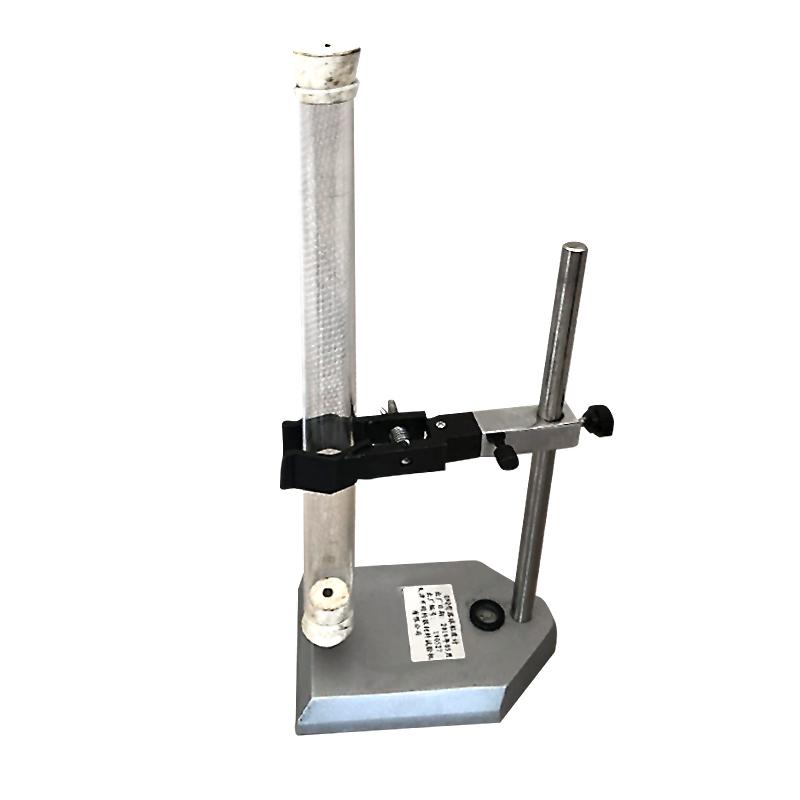

JINGKELIAN QNQ falling ball viscometer Determination of viscosity of clear coating materials with high viscosity value, standard GB/T1732-93 Picture

Overview of QNQ Falling Ball Viscometer

The QNQ Falling Ball Viscometer measures the viscosity of clear coatings with higher viscosity values. At a certain temperature, the time required for a steel ball of a certain specification to fall vertically through the upper and lower scale marks of the glass tube containing the sample is expressed in seconds (S). QNQ falling ball viscometer implements the standard GB/T1732-93.

Structure diagram of QNQ falling ball viscometer


FAQ
QDo you need more pipes for this kind? I only have one pipe now.
A Just match a pipe.
QIs there a small ball Viscometer measurement of material sedimentation and viscosity related, I use coating 1 to measure 50ml with 39s?
A Hello, this Jingke Falling Ball Viscometer is OK.
QIs there a small ball Viscometer measurement of material sedimentation and viscosity related, before using coating 1 to measure 50ml with 39s?
A Hello, this drop ball Viscometer is suitable for testing.
QIs this the drop ball Viscometer mentioned in GB/T1723?
A OK
QCan QNQ Drop Ball Viscometer measure the viscosity of medium and low viscosity Coatings?
A Hello, it is not suitable. The falling ball method is suitable for testing high viscosity Coatings. For medium and low viscosity, the measurement value will not be accurate enough due to some physical motion.
