TENCAN Powder XQM-8 Vertical Planetary Ball mill square

TENCAN Powder XQM-8 vertical planetary Ball mill is a planetary Ball mill with a total volume of 8L, which can be equipped with 4 ball milling tanks with a volume of 1 to 2L, and the motor Power is 1.5KW.
Model：
Certificate
Contact
Details SPEC VIDEO CAT

TENCAN Powder XQM-8 Vertical Planetary Ball millSPEC

TENCAN Powder XQM-8 Vertical Planetary Ball millDetails

TENCAN Powder XQM-8 Vertical Planetary Ball millPacking list

SKU
NB005980
Power
220V-50HZ
Motor Power
1.5kw
Total running time
1~9999min
alternate running time
1~999min
Adjustable Rotation speed - revolution
35~290rpm
Adjustable Rotation speed - Rotation
70~580rpm
Noise level
≤60±5dB
Speed regulation mode
Frequency conversion speed regulation
Device Weight
150kg
Equipment Volume
900*600*640mm
Processing Capacity
8L
Can be equipped with ball mill tank specifications
1~2L
station number
4pcs
Can be equipped with ball mill tank specifications
50~1500ml
Transmission mode
gear drive
Operating Mode
Two or four ball milling tanks work simultaneously
Maximum sample loading
Two-thirds of the Volume of the ball mill tank
Ball mill tank Volume
5L-50L per can, total Volume 20L-200L
Feed particle size
Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
Minimum discharge particle size
0.1μm
Speed regulation mode
Frequency conversion stepless speed regulation
XQM-8
Vertical Planetary Ball mill

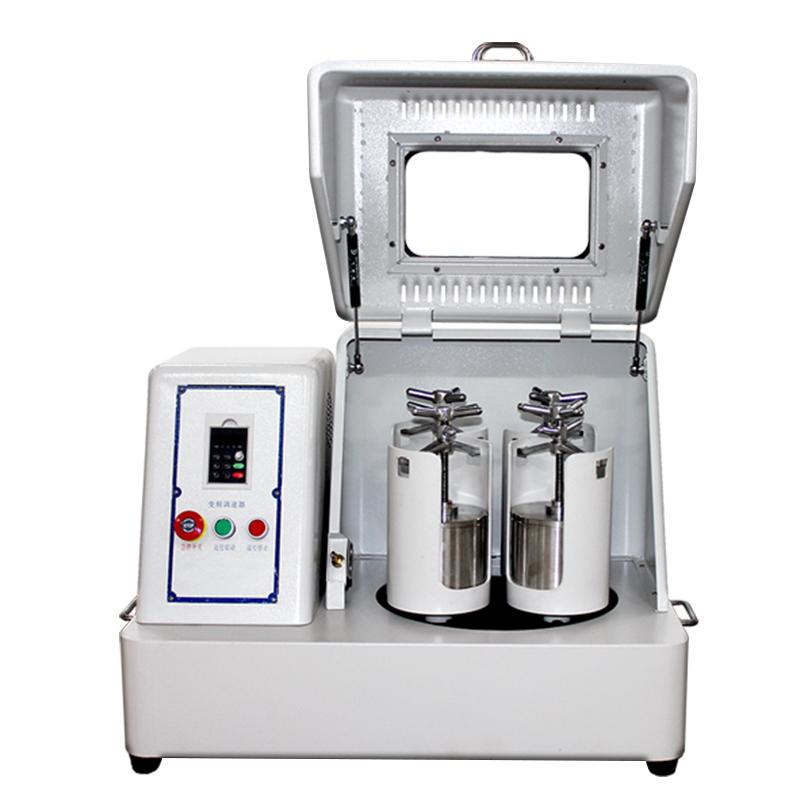

TENCAN Powder XQM-8 Vertical Planetary Ball mill square Picture

Planetary ball mill principle

Tianchuang Powder XQM-8 vertical planetary ball mill has small size, full functions, high efficiency and low noise. It is an ideal choice for scientific research units, universities and corporate laboratories to obtain research samples (each experiment can obtain four samples at the same time) The ideal equipment is equipped with a vacuum ball milling tank, which can grind samples under vacuum.

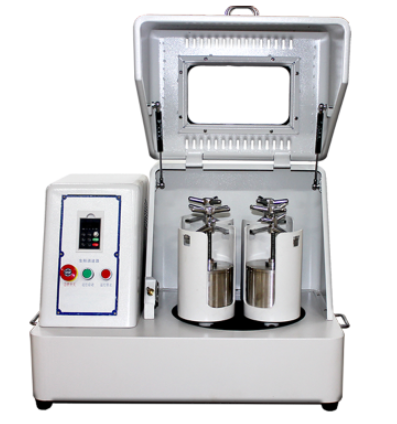

Tianchuang Powder XQM-8 Vertical Planetary Ball Mill

Planetary ball mill application

Planetary ball mills are widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. They are suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalysts, etc. Phosphor powder, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO Voltage Production field of sensitive resistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor powder, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

Planetary ball mill features

The planetary ball mill is stamped with high-precision molds, which is generous and refined, high-end and stable; the machined parts adopt CNC processing technology, the planetary disk is integrally cast and formed, and the transmission gears are made of precision gears made of special materials to ensure smooth and quiet operation of the equipment at high speed; the grinding jar is tightly pressed The device is easy to operate, safe and reliable.

Specifications

Tianchuang powder vertical planetary ball mill parameter table 1

   Tianchuang powder vertical planetary ball mill parameter table 2


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
