JINGKELIAN QAG Paints sagging Tester for relative sagging tests

SE
Line standard GB3186, film thickness range 50~675μm (50~275um; 250~475um; 450~675um), Graduation 25μm, application width 6mm, Graduation 25μm, wet-film spacing 1.5mm.
$396.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

JingKeLian QAG Paints Sag TesterSPEC

JingKeLian QAG Paints Sag TesterDetails

JingKeLian QAG Paints Sag TesterPacking list

SKU
NB000604
Execution standards
GB3186
Film thickness range
50 ~ 675μm (50 ~ 275um), 250 ~ 475um (450 ~ 675um),
Film width
6mm
Graduation
25µm
wet-film spacing
1.5mm
Glass panel size
200×120×（2~3）mm
test conditions
The temperature is 23 +/- 2 ℃ and the Relative Humidity is 50 +/- 5%
QAG
Paints Sag Tester
Line standard GB3186, film thickness range 50~675μm (50~275um; 250~475um; 450~675um), Graduation 25μm, application width 6mm, Graduation 25μm, wet-film spacing 1.5mm.

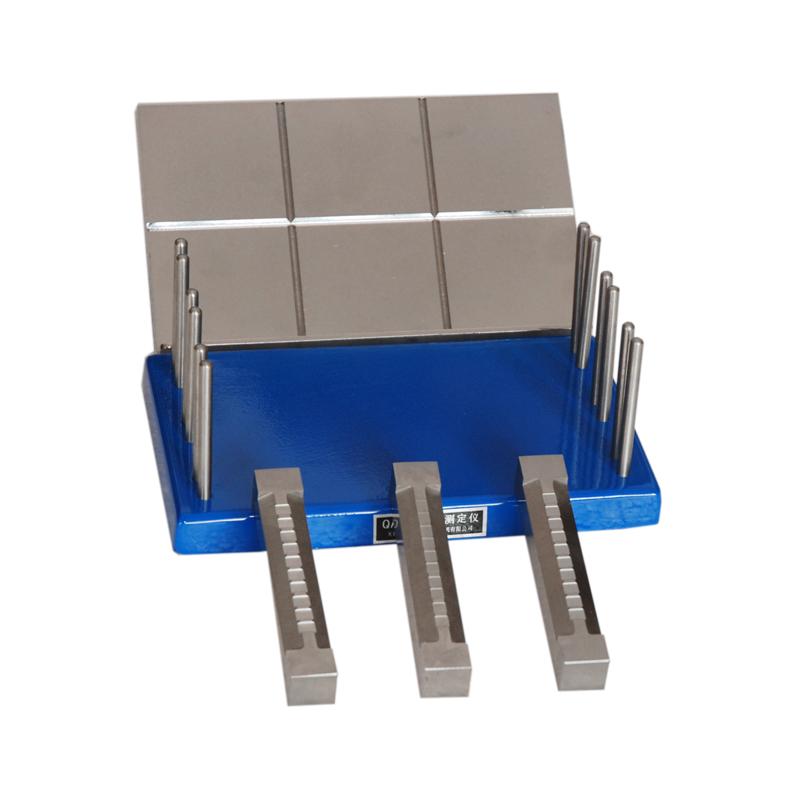

JINGKELIAN QAG Paints sagging Tester for relative sagging tests Picture

Overview of paint Sag Applicator

Technical characteristics of the test: use a scraper to prepare strip-shaped wet films with different film thicknesses on the glass test plate, and immediately place them vertically in a state of "thin at the top and thick at the bottom". The maximum thickness of sagging is expressed in μm

Application of QAG paint Sag Applicator

QAG paint Sag Applicator is suitable for measuring relative sag test of paint.

The QAG paint Sag Applicator is not suitable for the sag test of varnishes and powder coatings

Detail image

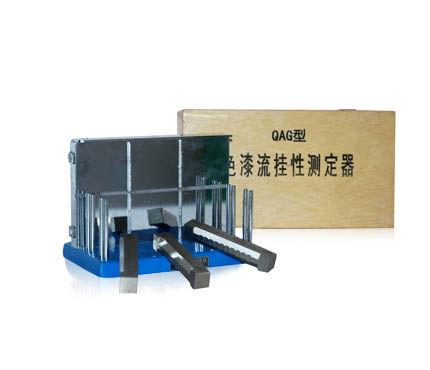

Details of QAG Sag Tester

FAQ
QDoes this QAG Paints sag have a guide plate?
A A set of knives including base, three specifications, and baseplate
QCan this Paints sagging device be applied to ASTMD4400?
A OK
QWhat is the use of the blue thing at the bottom in the picture?
A Hello, the bright plate is placed on the test piece during the experiment, and the Anti-Sag Meter is used for the experiment; then the test piece is placed on the blue base to see its sag sex, thank you.
QDoes the QAG sag sex tester conform to the national standard GB9264-88?
A Hello, yes, this QAG sag tester is developed according to the GB9264-88 standard, and the measurement film thickness range is 50~ 675 μm.
