Defelsko PosiTector 6000 FS1 Coating Thickness Gauge Iron metal substrate (such as steel) nonmagnetic coating
SEDefelsko classic hot-selling model, standard probe sealing is good, waterproof, high accuracy, small fluctuations and particularly durable, the whole machine is cost-effective
$966.00/set
PromotionLoading...
Coupon
Model：
PosiTector 6000 FS1
Similar products
-
Defelsko PosiTector 6000 FNS1 coated platings Thickness Gauge that automatically converts in magnetic and nonmagnetic environments$ 1392.00SE -
Defelsko PosiTector 6000 FS3 Coating Thickness Gauge Iron metal substrate (steel, iron, etc.) Split probe type$ 1456.00SE -
German EPK MiniTest 735 F1.5 statistical coating Thickness Gauge, thickness measurement 0~1500μm$ 2247.00SE -
CHINA CTG-802-3000F Coating Thickness Gauge$ 231.00SE -
PHYNIX Surfix SX-F1.5 magnetic Film Thickness Gauge 1500μm
Defelsko PosiTector 6000 FS1 Coating Thickness GaugeSPEC
Defelsko PosiTector 6000 FS1 Coating Thickness GaugeDetails

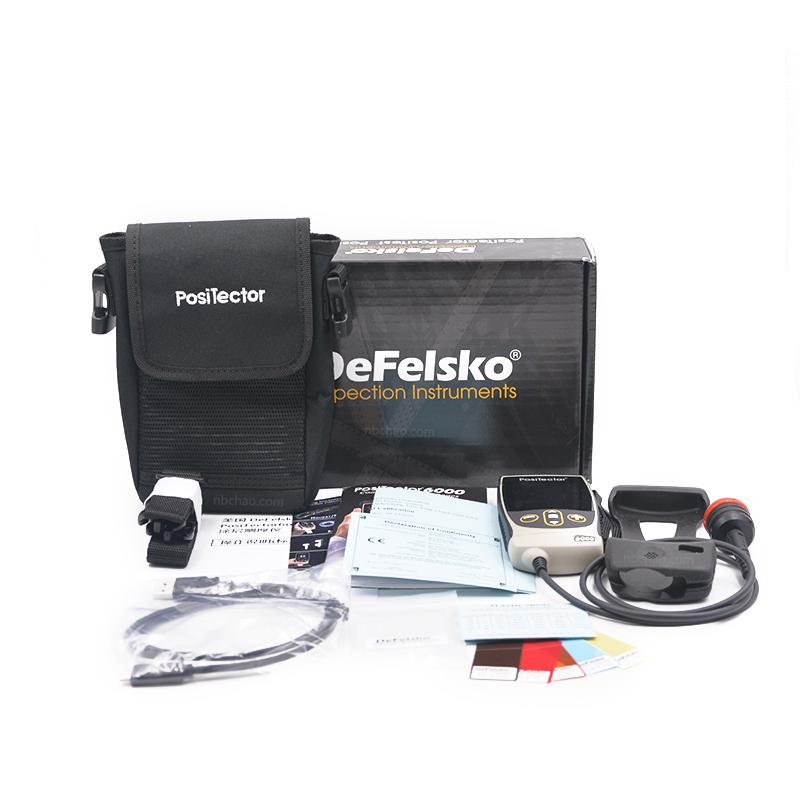

Defelsko PosiTector 6000 FS1 Coating Thickness GaugePacking list
- SKU
- NB000607
- Measurement principle
- Magnetic Induction
- Measurement range
- 0~1500μm
- margin of error
- ±1%
- Resolution
- 0.1μm
- probe

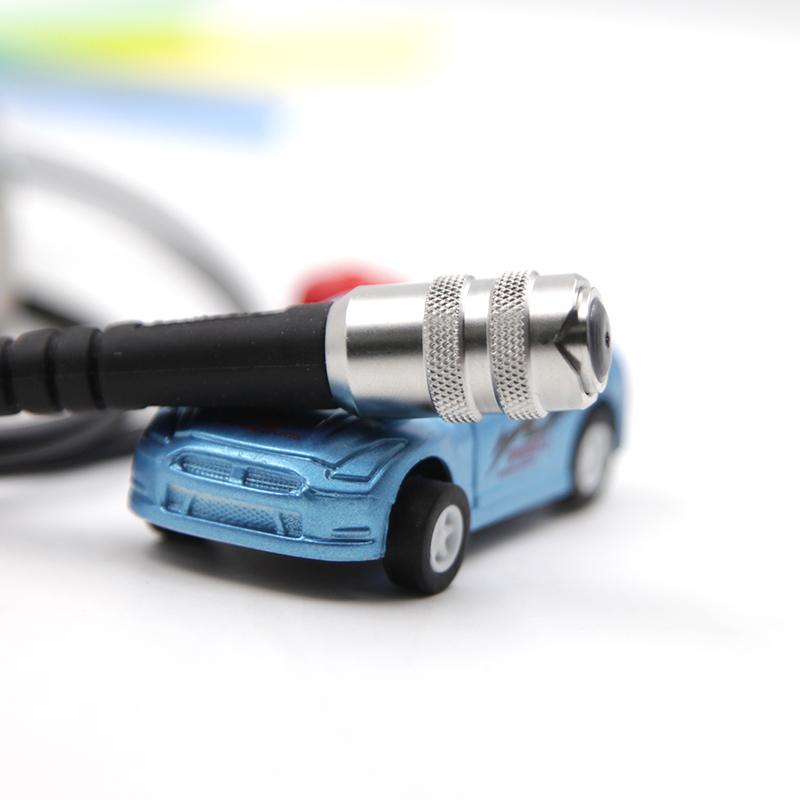

- FS1 Probe (General Purpose)
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- without
- Power Supply

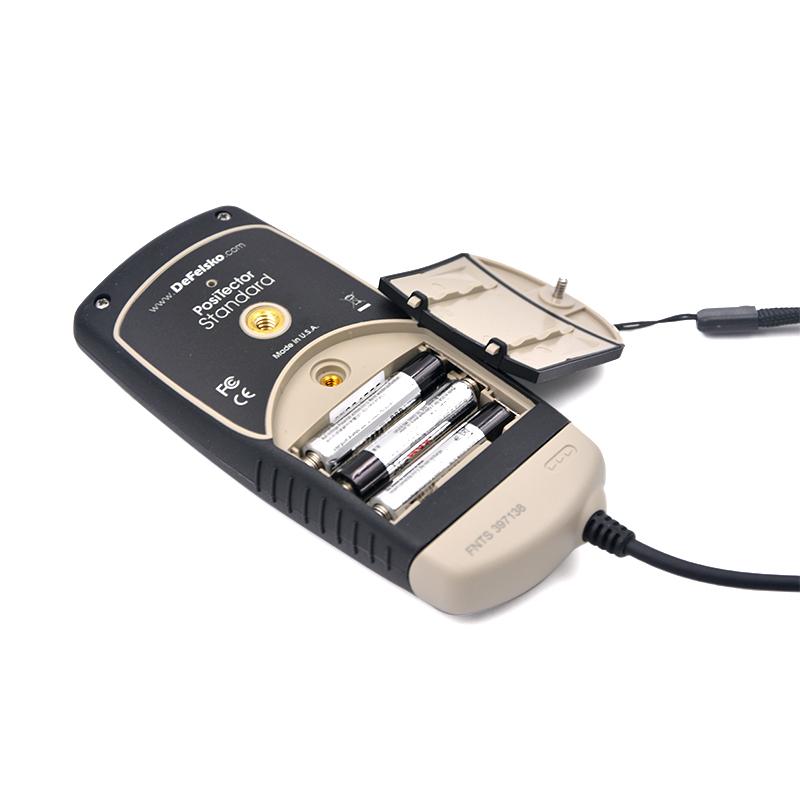

- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English
- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 1000 Measured values
- Test environment
- Ferrous metal substrate nonmagnetic coating environment
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- 60 + readings per minute
PosiTector 6000 FS1
Coating Thickness Gauge
Defelsko classic hot-selling model, standard probe sealing is good, waterproof, high accuracy, small fluctuations and particularly durable, the whole machine is cost-effective
Introducing the PosiTector 6000 FS1 Coating Thickness Gage
Imported from the United States, the Defelsko PosiTector 6000 series coating Thickness Gauge is a high-grade Thickness Gauge among domestic (CN) and foreign coating Thickness Gauges, and is used by users in many industries, including paint and coatings, chemical machinery, electroplating industry, electronic appliances and other industries. The PosiTector 6000 FS1 Coating Thickness Gauge is a magnetic coating Thickness Gauge in a split construction that is part of the standard Positector 6000 series of Thickness Gauges that can record and download 1000 readings and can be freely split and replaced. One main unit can be used for different probes in different test environments.
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QCan this test the Coating thickness on the test paper?
A
This is the principle of magnetic Induction, if the paper is not too thin can also be tested, put the substrate on the metal baseplate, measure the total thickness of the material, and then subtract the thickness of the substrate.

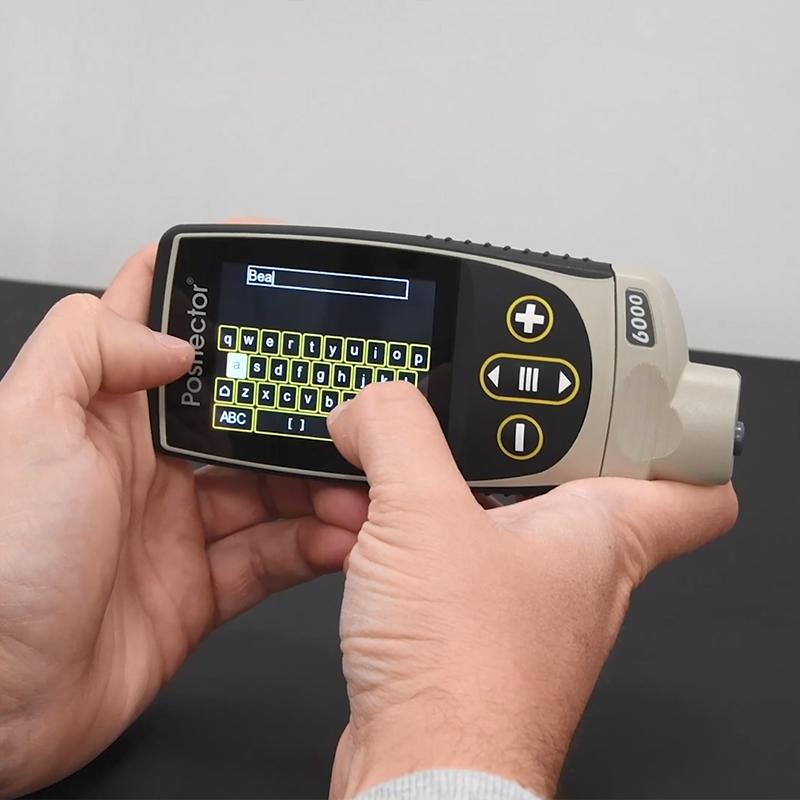

QCan the Coating thickness gauge be operated by touch screen?
A
Sure.
QCan this defelsko 6000 thickness gauge measure hull Coating thickness underwater?
A
The probe is waterproof and can be extended underwater for testing, but the host cannot.
QCarbon steel aluminum coating zinc layer, zinc nickel alloy these surface coatings can be measured?
A
In addition to nickel, Miscellaneous can.
QCoating thickness gauge wearing gloves can touch operation?
A
Sure.
QChrome plating on No. 20 carbon steel, measure the thickness of chrome plating
A
This one is ok.
QCarbon steel stainless steel substrate, nonmagnetic coating, can with probe?
A
Recommended 6000 FS1
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QTesting substrate is mainly stainless steel, film thickness requirements 100 to 500, mainly anti-corrosion coating Film thickness?
A
Hello, this one is OK. This is the principle of magnetic Induction.
QDefelsko PosiTector 6000 FS1 Coating thickness gauge How big is the display on this new console?
A
Hello, the display screen is 2.8 inches.
Knowledge
Standard
- 1HG/T 3240-2007《Micro-computer film-thickness tester》
- 2QJ 990.3A-2011《Inspection methods of coating.Part 3:Measurement of coating thickness》
- 3NF EN ISO 2808-2007《Paints and varnishes - Determination of film thickness.》
- 4GB/T 42541-2023《Coated steel pipes for gas piping》
- 5GB/T 7991.5-2014《Test method of viterous and porcelain enamels—Part 5：Determination of thickness by electromagnetic mothod》
- 6JJG 818-2018《Magnetic and Eddy Current M easuring I nstrument for Coating Thickness》
- 7GB/T 1727-2021《General methods for preparation of coating films》
- 8HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 9ASTM B499-2021《Standard Test Method for Measurement of Coating Thicknesses by the Magnetic Method: Nonmagnetic Coatings on Magnetic Basis Metals》
- 10ISO 2178-2016《Non-magnetic coatings on magnetic substrates — Measurement of coating thickness — Magnetic method》
