JINGKELIAN QXG (9 pcs 150mm) Mayer Rods wet-film thickness range 10-200μm width 150mm

JINGKELIAN QXG (9 pcs 150mm) Mayer Rods is a QXG Proofing rod set with 9 strands of wire rod Coating Applicator. The application width of the QXG Proofing rod is 150mm.
Certificate
Contact
Details SPEC
Similar products

JingKeLian QXG 9 pcs 150mm Mayer RodsSPEC

JingKeLian QXG 9 pcs 150mm Mayer RodsDetails

JingKeLian QXG 9 pcs 150mm Mayer RodsPacking list

SKU
NB000610
Production process
Wire-wound
WFT
10~200μm
Application width
150mm
1 group
10/15/25μm
2 groups
50/75/100μm
Group of 3
125/150/200μm
standard structure
A set of 9 pieces, can produce 9 kinds of film thickness (divided into 1, 2, 3 groups)
QXG 9 pcs 150mm
Mayer Rods

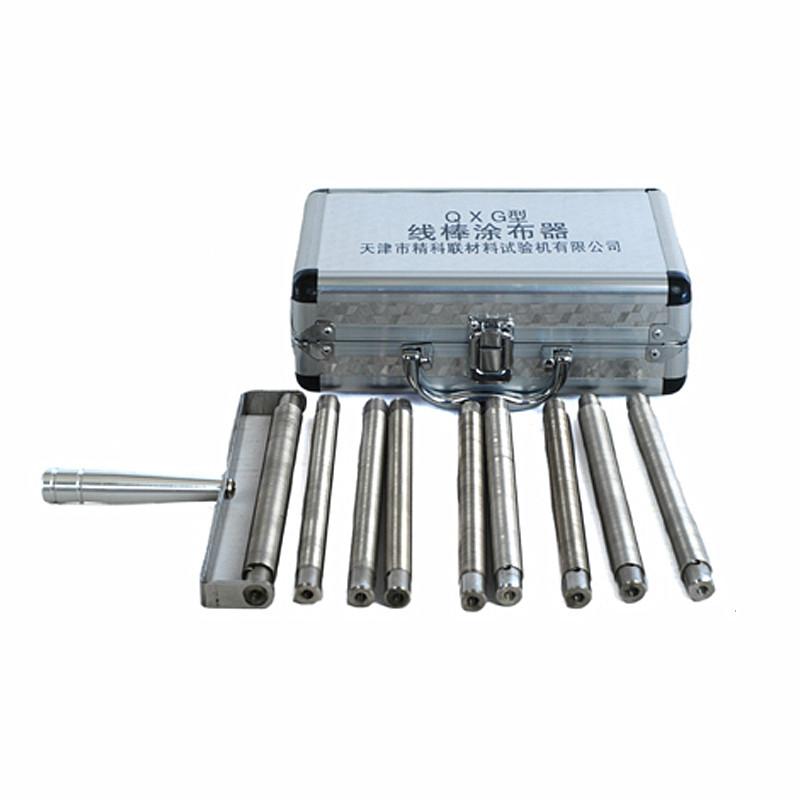

JINGKELIAN QXG (9 pcs 150mm) Mayer Rods wet-film thickness range 10-200μm width 150mm Picture

product description

This nine-piece wire rod applicator is suitable for coating inks and coatings on soft materials such as paper, card, textiles, leather, etc. The thickness of the coating film is controlled by the groove area between the coils. A smooth and flat thickness can be applied to the material plane.

Specifications

Wet film thickness range10-200μm
Group 110/15/25μm
2 teams50/75/100μm
3 groups125/150/200μm
Effective film width150mm
Standard structureSet of 9 pieces, can produce 9 kinds of film thickness (divided into 1, 2, 3 groups)

Large picture display of nine-piece wire rod applicator

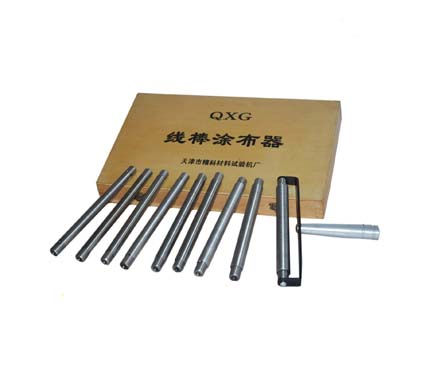

Actual pictures of JinKeLian QXG (9-piece group 150mm) wire rod applicator


FAQ
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QCan JINGKELIAN QXG 9-pack 150mm Mayer Rods meet the GB/T13217.1 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T13217.1 standard.
QDoes the Mayer Rods set from Seiko come with a handle?
A Hello, no.
