JINGKELIAN QHQ film Pencil Scratch Hardness Tester Determination of Paint Film Hardness by Pencil Hardness Grade of Plow Broken Paint Film

Load 1000g, Applicable standard GB/T 6739-86, JIS K5401, ASTMD2197, Standard pencil 6B-6H, test angle 45 °, scratch speed 1mm/s.

$313.00/set

PromotionLoading...

Coupon

Model：

Certificate

JingKeLian

Manufacturer authorization

Contact

Details SPEC Con OI

JingKeLian QHQ Film Pencil Scratch Hardness TesterSPEC

JingKeLian QHQ Film Pencil Scratch Hardness TesterDetails

JingKeLian QHQ Film Pencil Scratch Hardness TesterPacking list

SKU: NB000617

Load: 1000g

Applicable standard: GB/T 6739-86、JIS K5401、ASTMD2197

Standard pencil: 6B-6H

test angle: 45th

Scratch speed: 1mm/s

QHQ

Film Pencil Scratch Hardness Tester

Load 1000g, Applicable standard GB/T 6739-86, JIS K5401, ASTMD2197, Standard pencil 6B-6H, test angle 45 °, scratch speed 1mm/s.

Brief Introduction of QHQ Pencil Scratch Hardness Tester

JinKeLian QHQ coated pencil scratch Hardness Tester is a hand-operated desktop pencil scratch Hardness Tester, which meets the standard GB/T6739-86 JIS K5401 ASTMD2197. The load value of the QHQ coating pencil scratch Hardness Tester is 1000+/-1g, and the scratch speed is about 1mm/s.

Structure of QHQ Coating Pencil Scratch Hardness Tester

(1) Counterweight (2) Stop screw (3) Working rod (4) Weight (5) Pencil holder (6) Screw (7) Test bench (8) Clamping nut (9) Brake shoe lifting torque (10 ) knob (11) handwheel (12) adjustment handwheel

Features

Purpose: Determination of the hardness of the paint film by the pencil hardness scale of the plowed paint film

Technical characteristics of the test: the hardness is expressed by the pencil hardness level of the paint film broken by plowing under the specified test conditions

Detail image

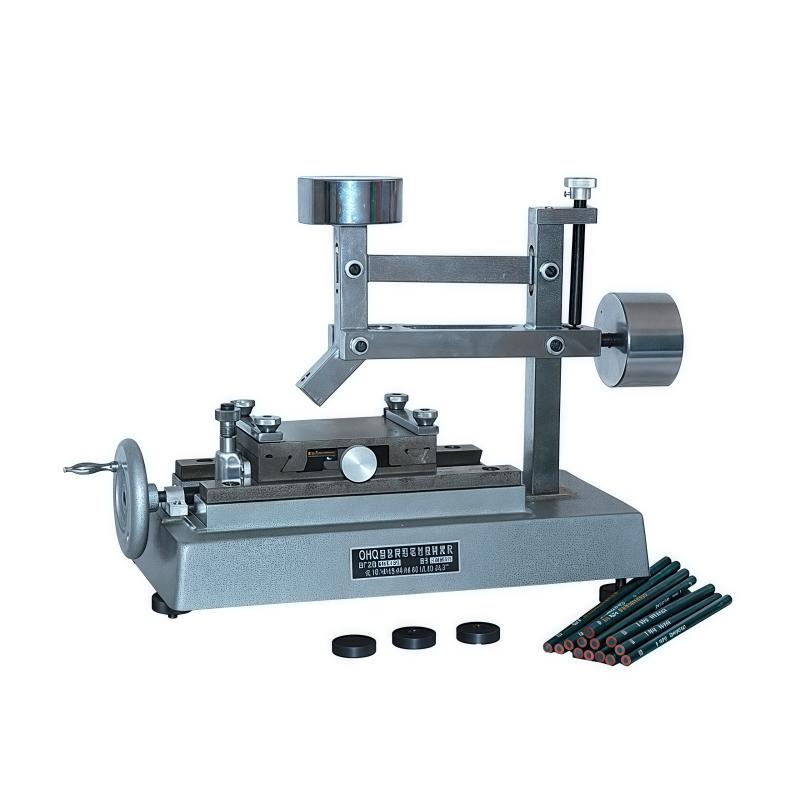

QHQ pencil method Hardness Tester real shot

FAQ

QI want to test the Hardness of coatings, what instrument should I use?

A QHQ film pencil Scratch Hardness Tester is specially used to measure the Hardness of paint films. Hardness grades are assessed by scratching pencils with different Hardness on coatings. The operation is simple and the results are intuitive and reliable.

QQHQ Pencil hardness tester meets GB6739 standard?

A In line with.

QIs there any instrument that can test the scratch resistance of Coatings?

A QHQ Hardness Tester for evaluating scratch resistance of coatings or Coatings

QDoes the film pencil Scratch Hardness Tester meet the specifications of ASTMD2197?

A Model QHQ film Pencil Scratch Hardness Tester

QIs this QHQ film pencil Scratch Hardness Tester plugged in?

A Hello, this is a hand-cranked film pencil Scratch Hardness Tester, which is not connected to a power supply.

QHello, does the Pencil Scratch Hardness Tester QHQ contain standard test pieces (for example, what is the hardness of a certain film you test)?

A Hello, the standard test piece you mentioned is not included in the standard configuration. Because users come from all walks of life, each user's experiments are different. Naturally, it is impossible to provide consistent standard test pieces for different customers. Standard test pieces are provided by users.
