JINGKELIAN QHY Buchholz indentation Tester for the determination of the technical characteristics of the film Hardness test

QHY

Buchholz indentation Tester

QHY Buchholz indentation Tester determines the anti-indentation performance of films by the reciprocal function of indentation length. Can be used to determine the Hardness of paint films, in line with standards GB/T9725-88, ISO1518-73, DIN53153

Overview of QHY Buckholz Indentation Tester

JinKeLian QHY Buckholtz indentation Tester is a mechanical hardness testing instrument. When the pressure is applied to the coating film by the Buckholtz indentation Tester, the indentation length is measured, and the length of the indentation is determined by the reciprocal of the indentation length. Function to determine the anti-indentation performance results of the coating film. The indentation load of this QHY Buckholtz indentation Tester is 500g, the reading accuracy reaches 0.1mm, the measurement is stable, and the operation is simple and reliable.

Purpose: Determination of the hardness of the paint film by an indentation Tester

Technical characteristics of the test: the hardness is expressed by the reciprocal function of the indentation length (indentation resistance) under the specified test conditions.

Buckholz indentation Tester Specifications

Principle

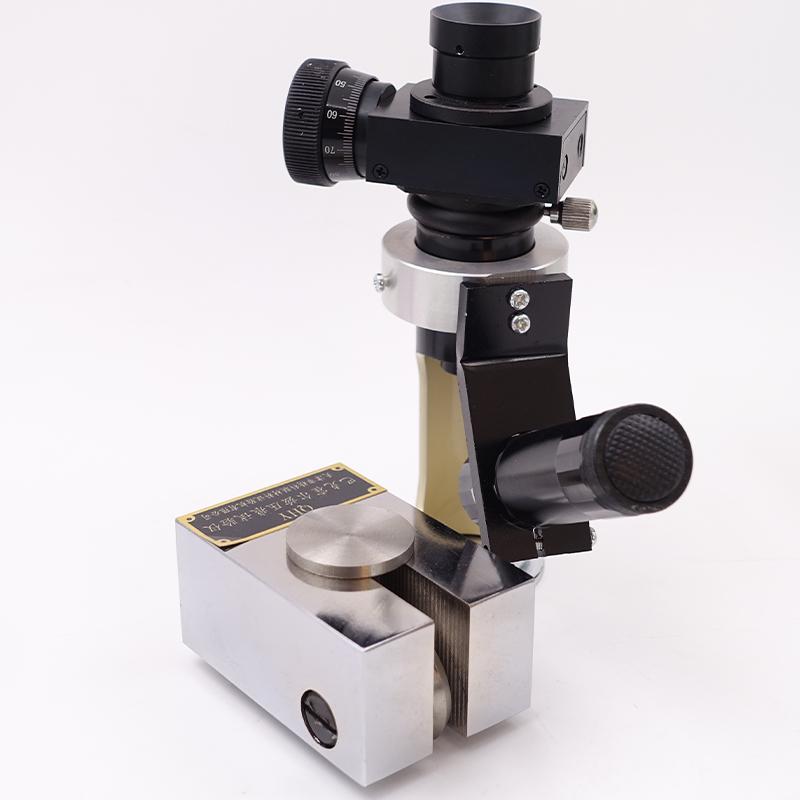

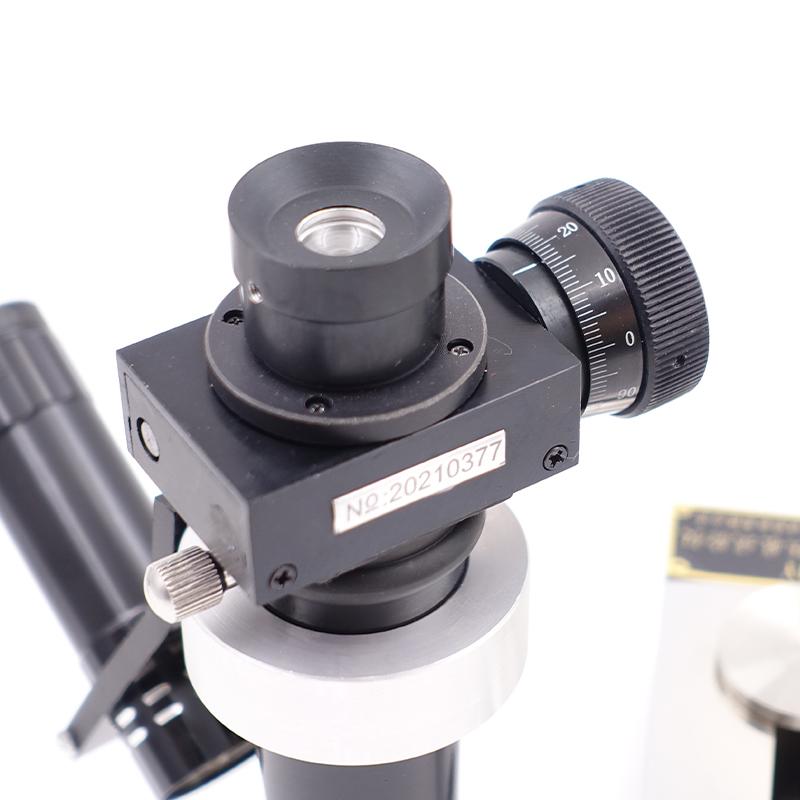

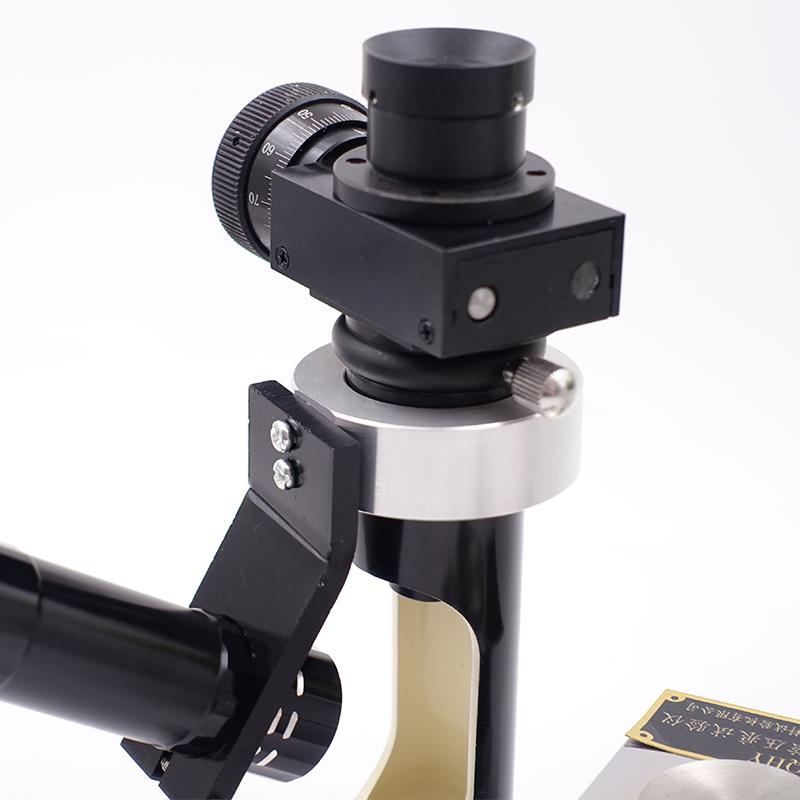

QHY Buckholtz indentation Tester is used to measure the hardness of paint film by indentation test method. The test apparatus consists of a steel block with 2 fulcrums, a constant test load of 500g, a sharp-edged circular indentation disk and a 20x microscope with a 0.1mm scale and a built-in light source. During the test, place the Tester of the QHY Buckholz indentation Tester on the coating surface for 30 seconds to obtain an indentation, observe it with a microscope and a built-in light source, and the length of the indentation is inversely proportional to the hardness. The hardness is expressed as the reciprocal function of the indentation length (indentation resistance) under the specified test conditions.

Details of QHY Buckholz indentation Tester

Packing list：Fulcrum x2, 500g constant test load steel block x1, round indentation plate x1, 20 times Microscope x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
