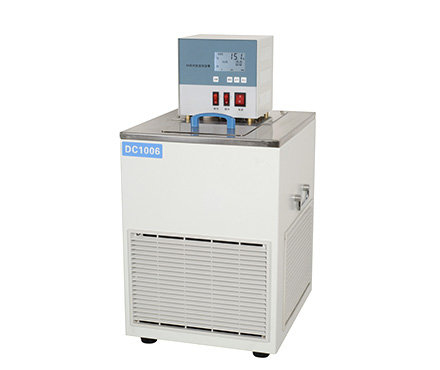

MODERNER DHC Thermostatic Water Bath

DHC

Thermostatic Water Bath

Overview

Low-temperature constant temperature Water Tanks in MODERNERs are mainly used for constant temperature testing or experiments on sample products. They are widely used in bioengineering, food, chemical industry, metallurgy, chemical analysis, petroleum and other fields to provide users in related industries with a high-precision , controlled, constant field source with uniform temperature. The inner tank of the low-temperature constant-temperature Water Tank has a capacity of 6 liters. It adopts microcomputer temperature control PID adjustment, which allows fast temperature rise and fall and high temperature control accuracy.

The main technical parameters

Temperature fluctuation: ±0.05℃

Display resolution: 0.1℃

Inner tank volume: 6 liters

Working Voltage: 220V 50Hz

Total power: 1.5kw

Overall dimensions: 340x405x670mm (length x width x height)

Overall machine weight: 26kg

Advantages and features

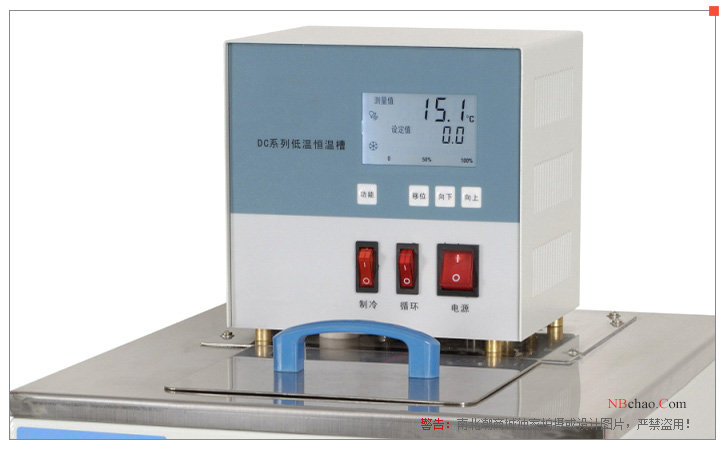

1) Control system:

●Large-screen LCD display, digital display resolution 0.01℃. Equipped with drain valve and casters according to customer requirements.

●New special software develops homemade temperature control technology, equipped with high-performance temperature sensors and all imported electronic components.

●The software system makes it easy to correct the error between the displayed temperature and the actual temperature. The temperature correction resolution is up to 0.01℃, making the displayed temperature value accurate.

●It has over-temperature protection and over-temperature beeping alarm. The over-temperature alarm temperature can be set, and the load can be automatically cut off when over-temperature occurs.

●The intelligent software has strong temperature stability, and the PID can automatically adjust good parameters according to different media. Special users can manually re-adjust the parameters.

●Use software to digitally lock various setting values ​​of the control system to avoid incorrect operations by irrelevant personnel and ensure that the experimental process data is correct.

●Optional RS232 or RS485 communication interface enables data transmission for remote control.

●Accurate temperature control makes the temperature in the working tank quickly and stable. Press the "Power" button to turn off all functions of the low-temperature Thermostatic Water Bath.

2) Refrigeration system:

Effective fully enclosed compressor unit cooling, fast cooling, and multiple protections such as overheating and overcurrent.

3) Circulatory system:

Professional internal circulation and external circulation systems. The internal circulation makes the temperature uniform and stable. The external circulation pump outputs constant temperature liquid with a flow rate of 6L/min and 13L/min to establish a second constant temperature field outside the machine. It can also be used as a cold source to cool experiments outside the machine. container.

4) Internal and external materials

The inner tank and countertop are all made of stainless steel, and the casing is made of cold-rolled steel with plastic spraying, which is clean, beautiful and corrosion-resistant.

Product actual pictures

Packing list：Thermostatic water bath x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
